Home >> Mitsubishi >> 2004 >> Outlander L4-2.4L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Stabilizer Bar, Sway Control >> Front

Front

Part 1 Of 2:




Part 2 Of 2:

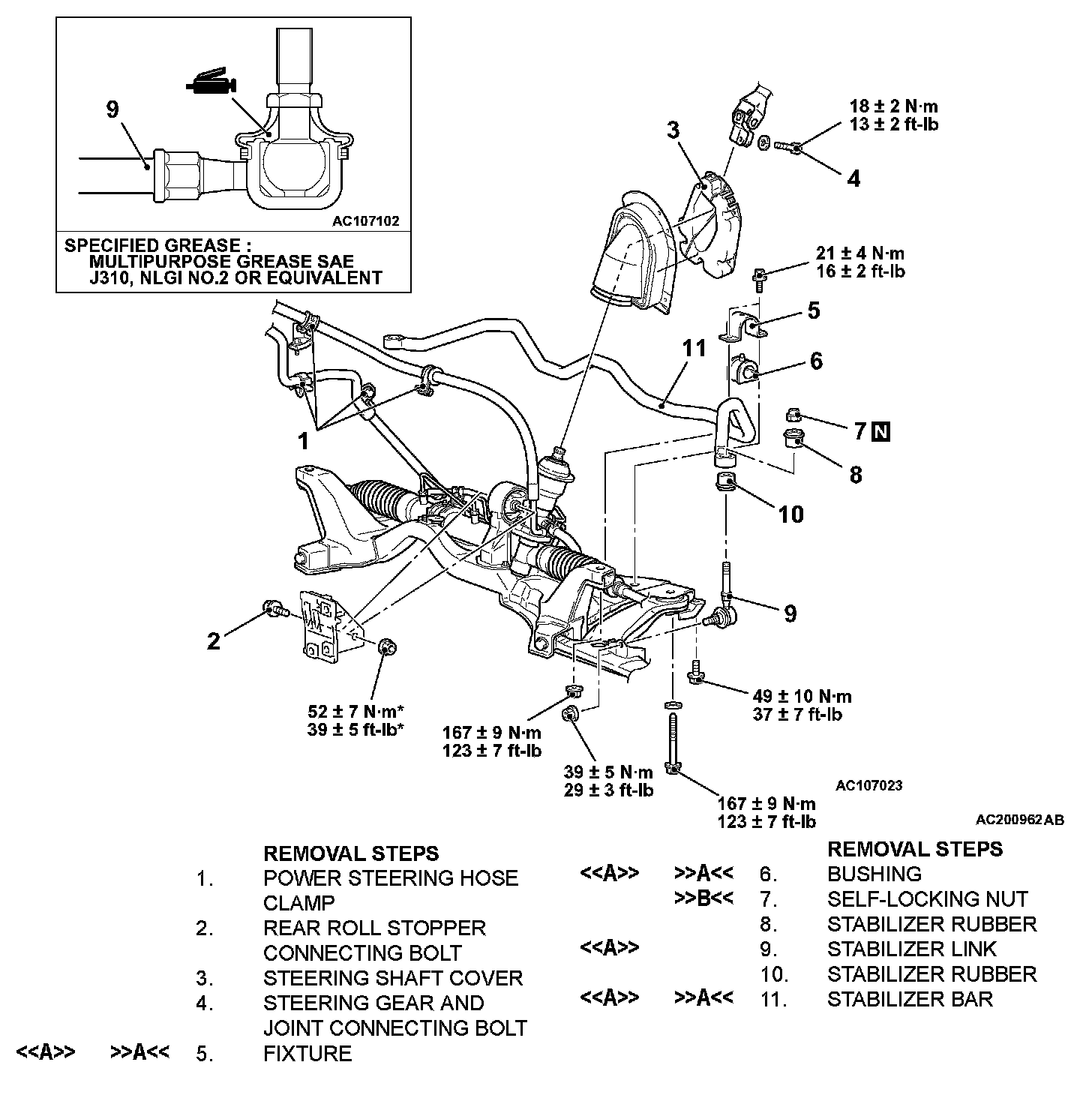

STABILIZER BAR REPLACEMENT W/ RELATED COMPONENTS
