Home >> Mitsubishi >> 2004 >> Outlander L4-2.4L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Cross-Member >> System Diagram >> Front

Front

Part 1 Of 2:

Part 2 Of 2:

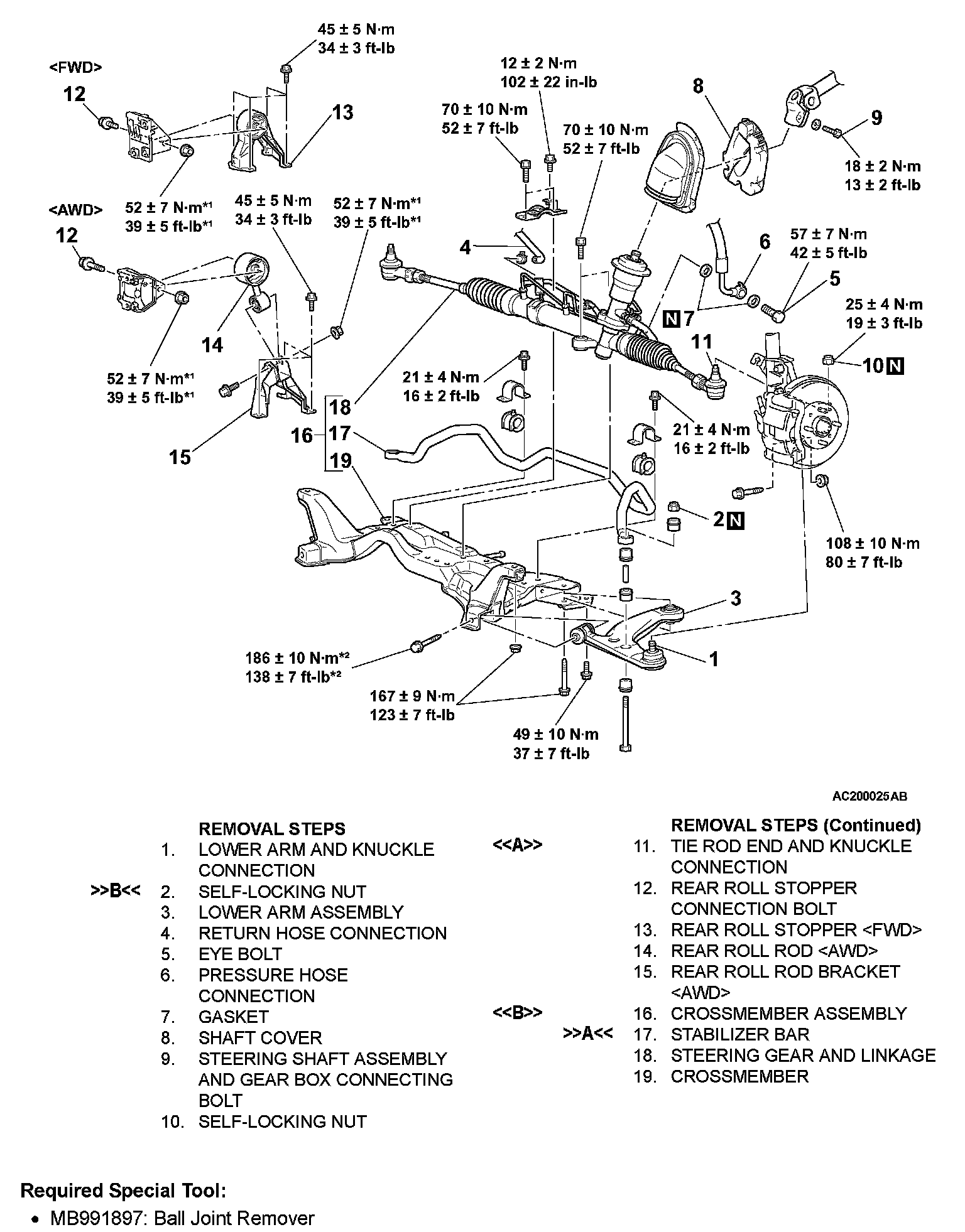

CROSSMEMBER REPLACEMENT W/ RELATED COMPONENTS
