Home >> Mitsubishi >> 2004 >> Montero XLS >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Overhaul >> UNDERDRIVE Clutch >> Disassembly And Assembly >> Notes

Disassembly And Assembly: Notes

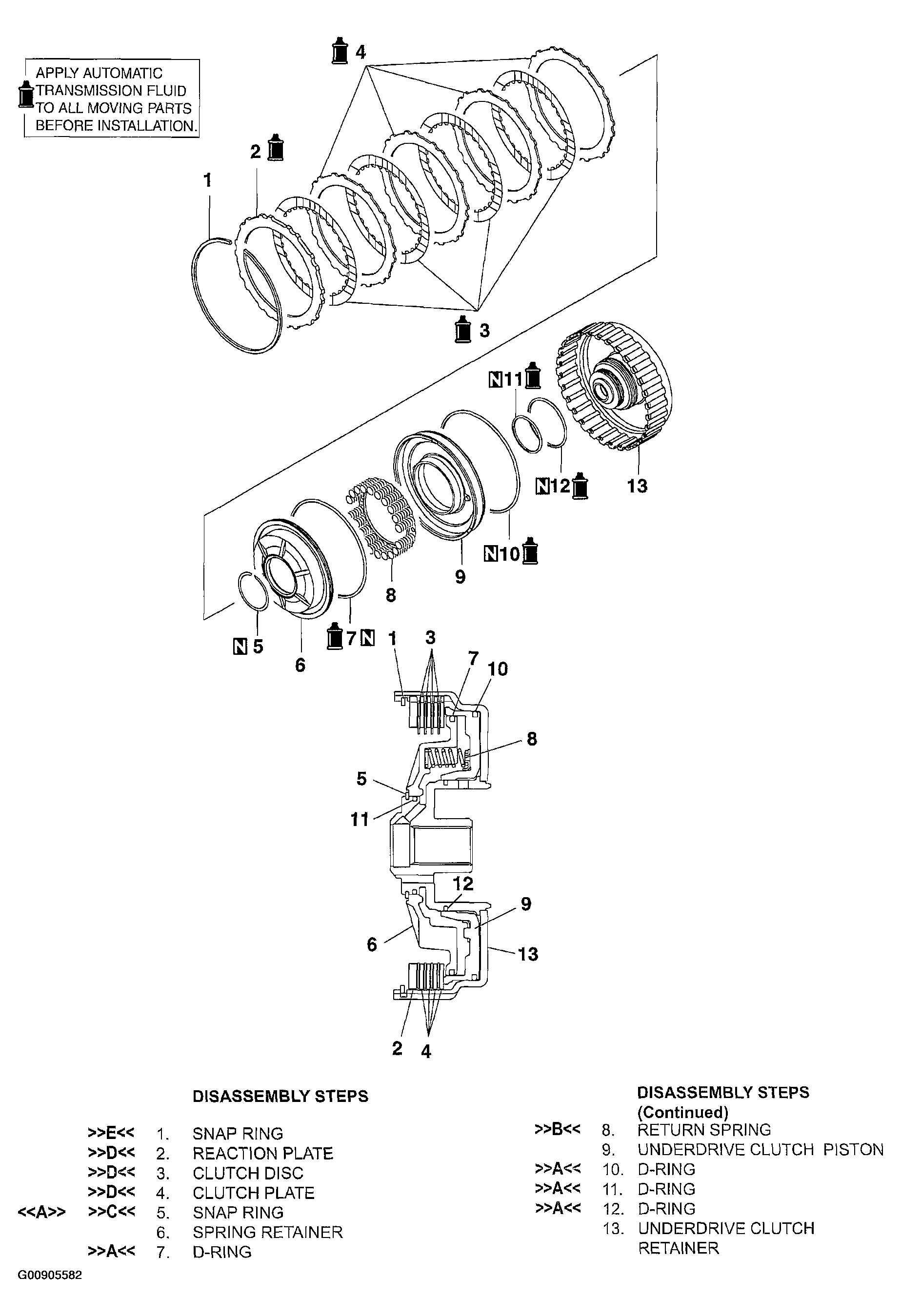

Fig 1: Exploded View Of Underdrive Clutch
G00905582Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
