Sectional View

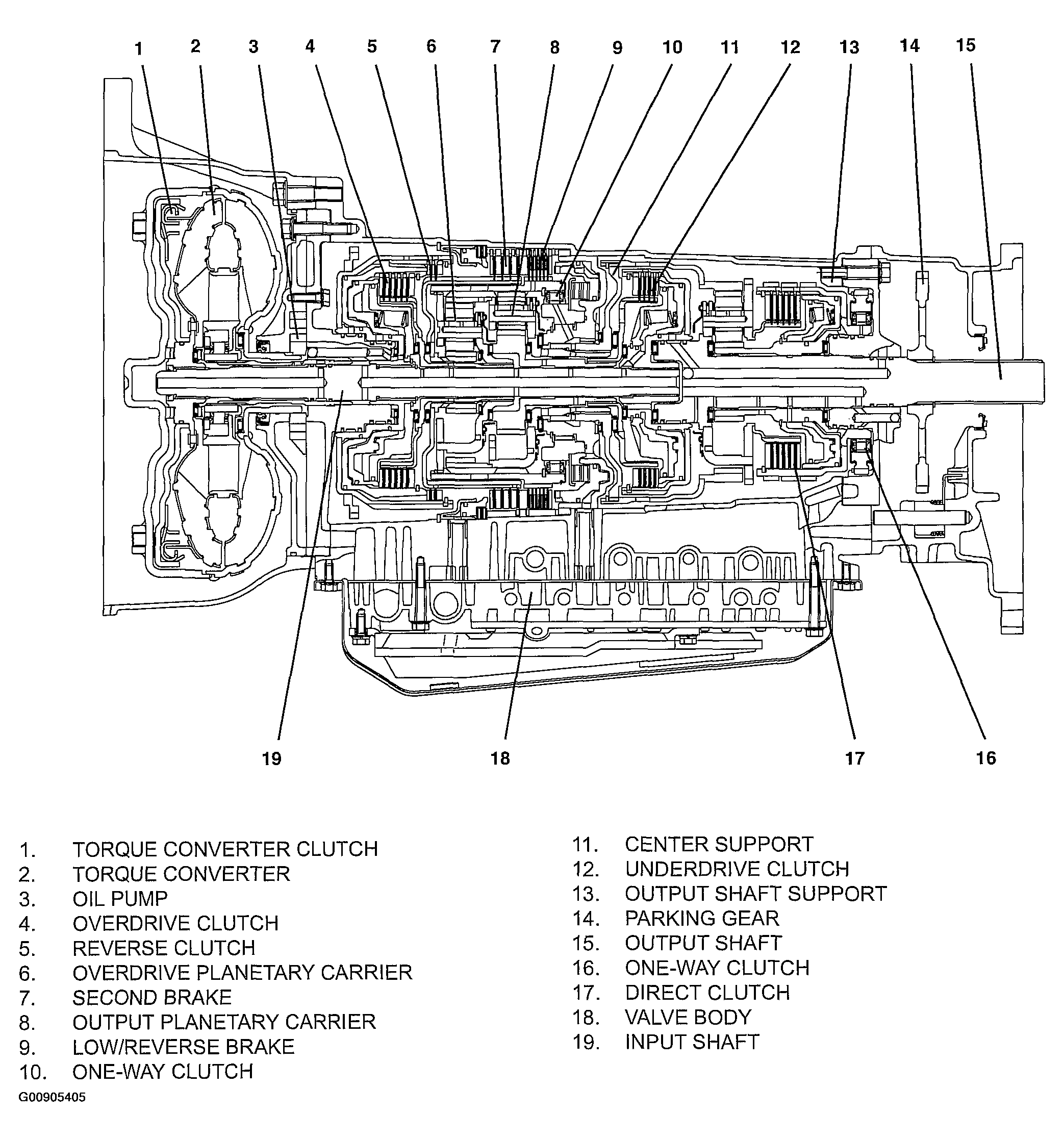

Fig 1: Identifying Sectional View Automatic Transmission (1 Of 2)
G00905405Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.


Fig 1: Identifying Sectional View Automatic Transmission (2 Of 2)
G00905406Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
