Disassembly And Assembly: Notes

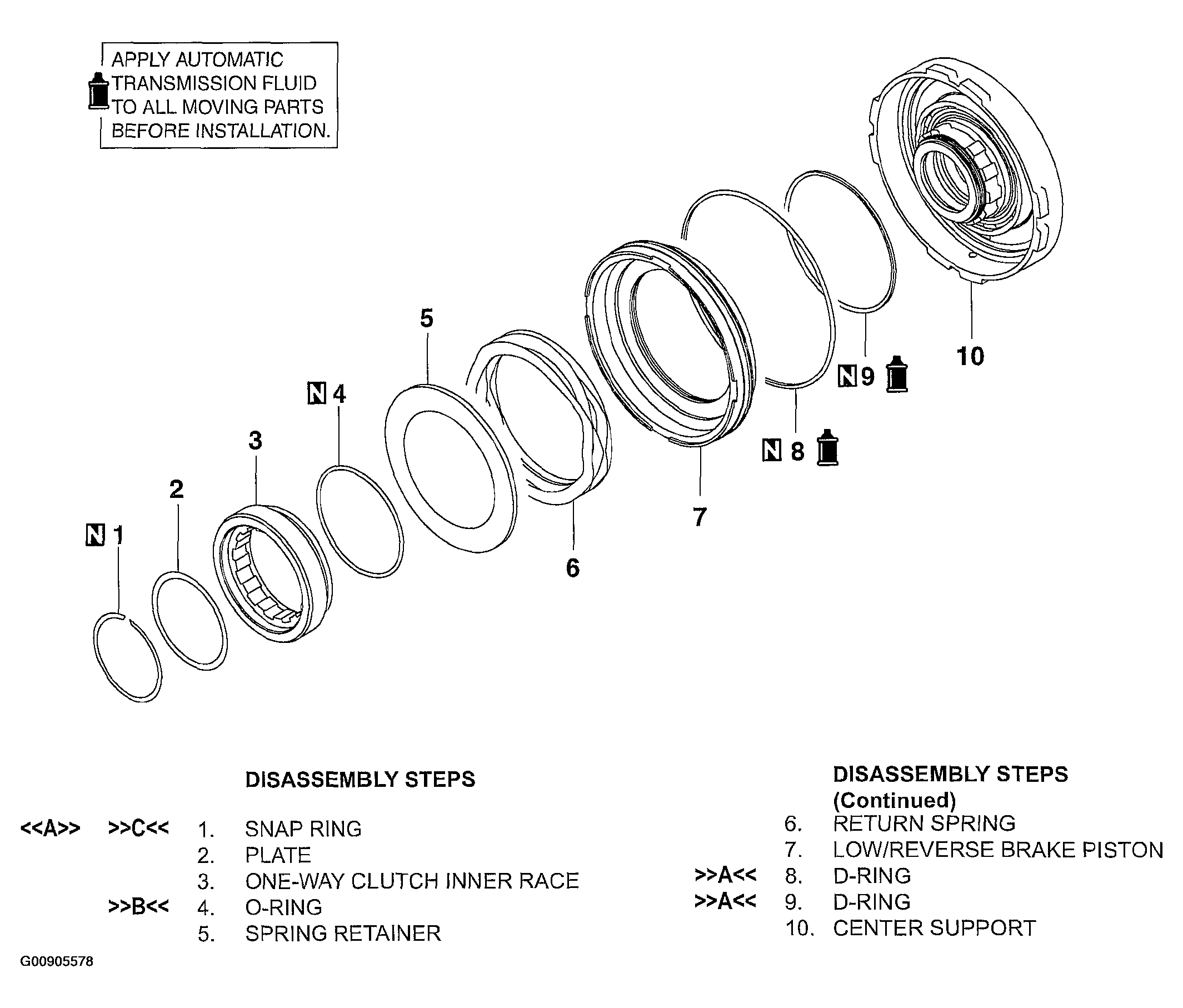

Fig 1: Exploded View Of Center Support
G00905578Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
