Home >> Mitsubishi >> 2004 >> Lancer Sportback L4-2.4L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Axle Shaft Assembly >> Disassembly and Assembly

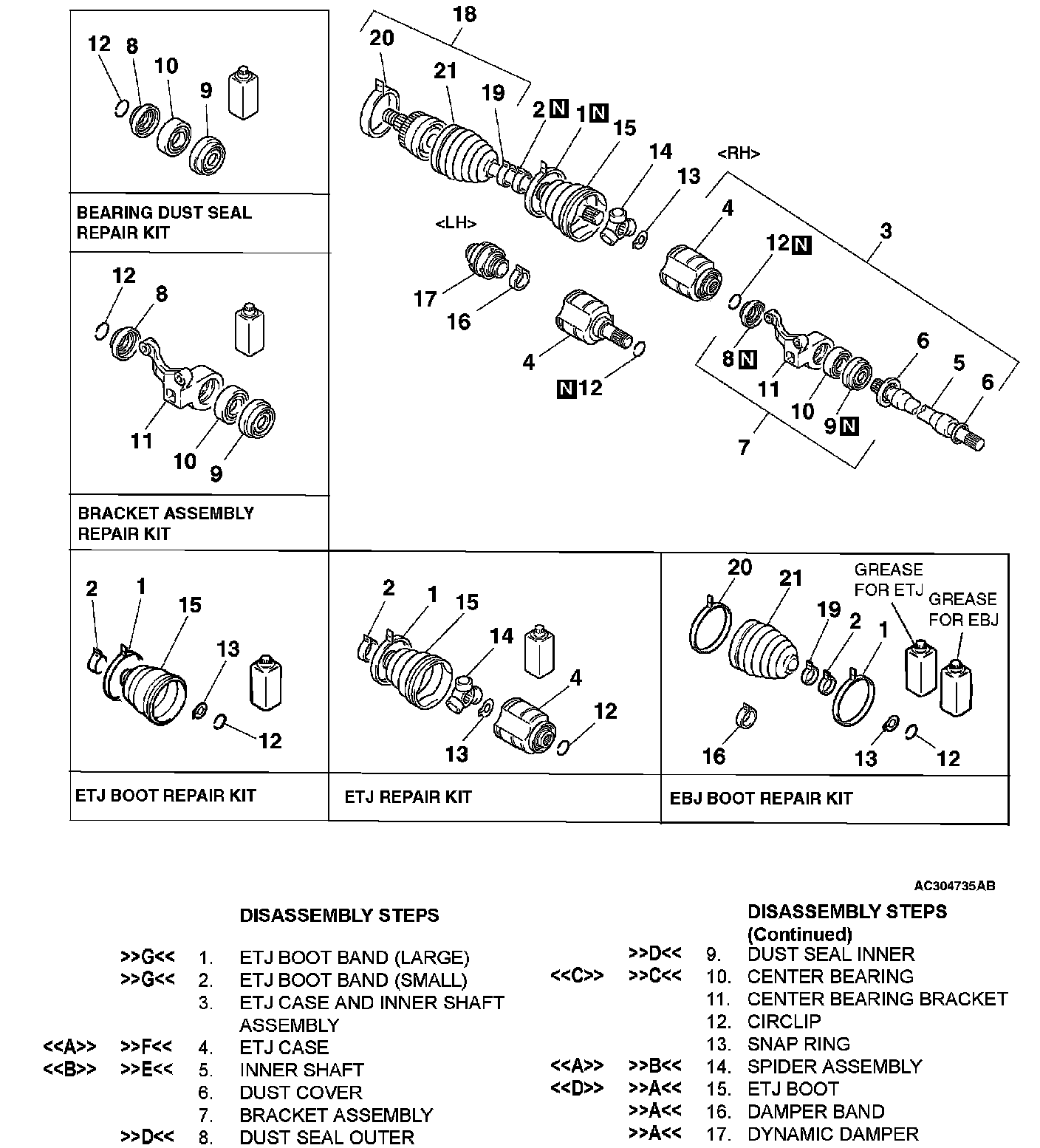

Disassembly and Assembly

Part 1 Of 2:

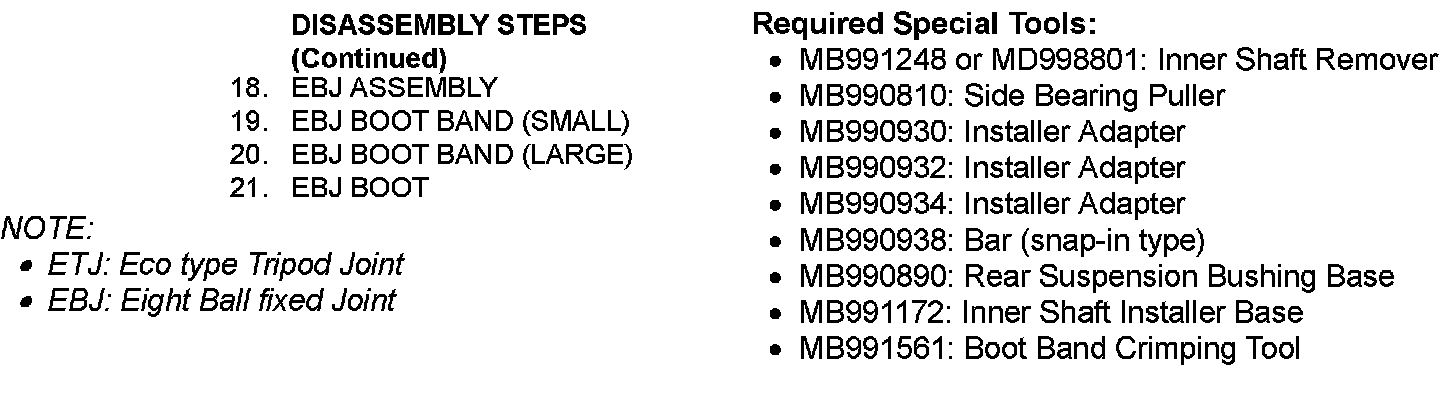

Part 2 Of 2:
