Starter Relay Check

For starter relay location see Fig 1 .

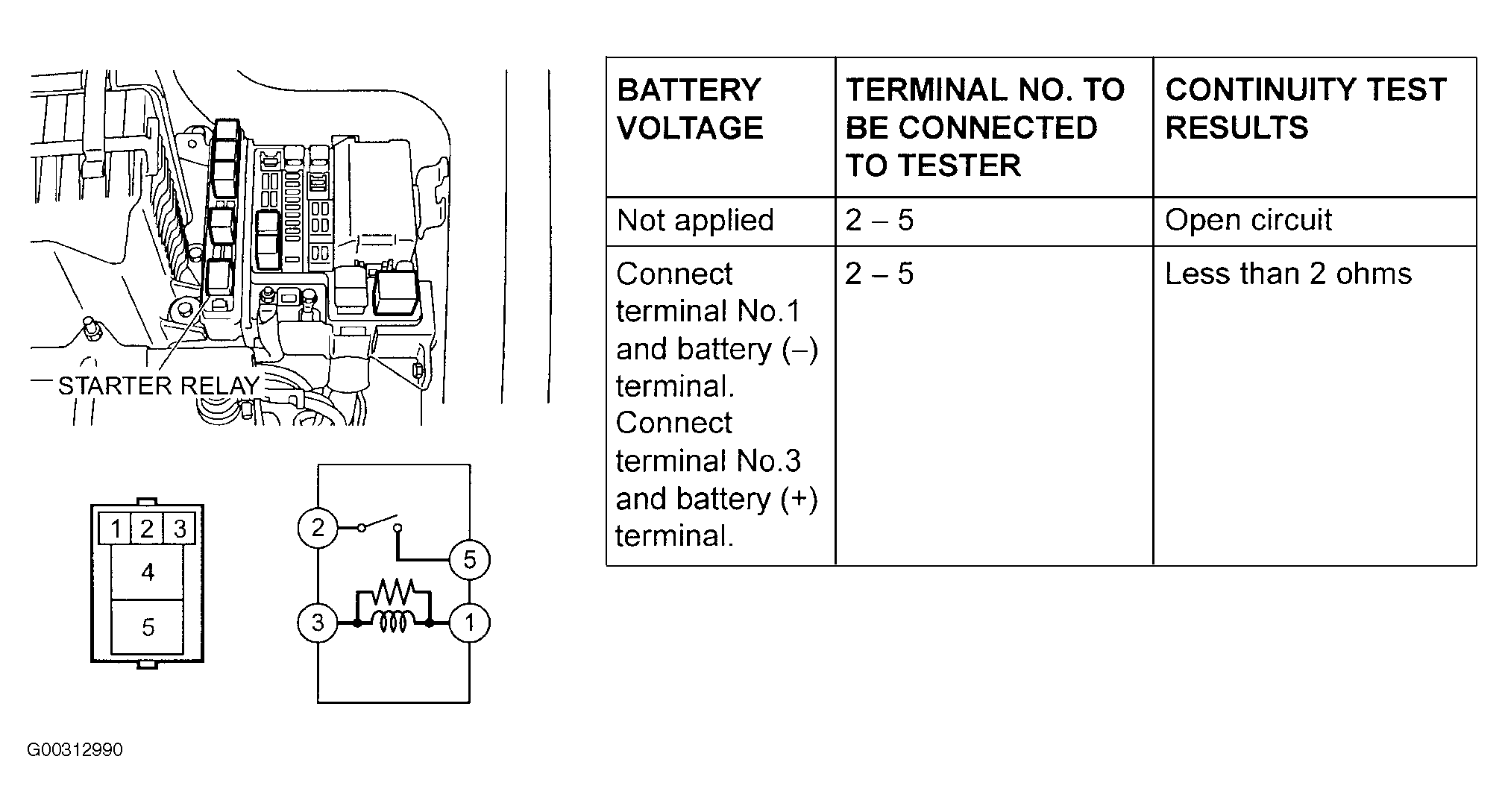

Fig 1: Testing Starter Relay

G00312990

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
