Power Window Switch: Testing and Inspection

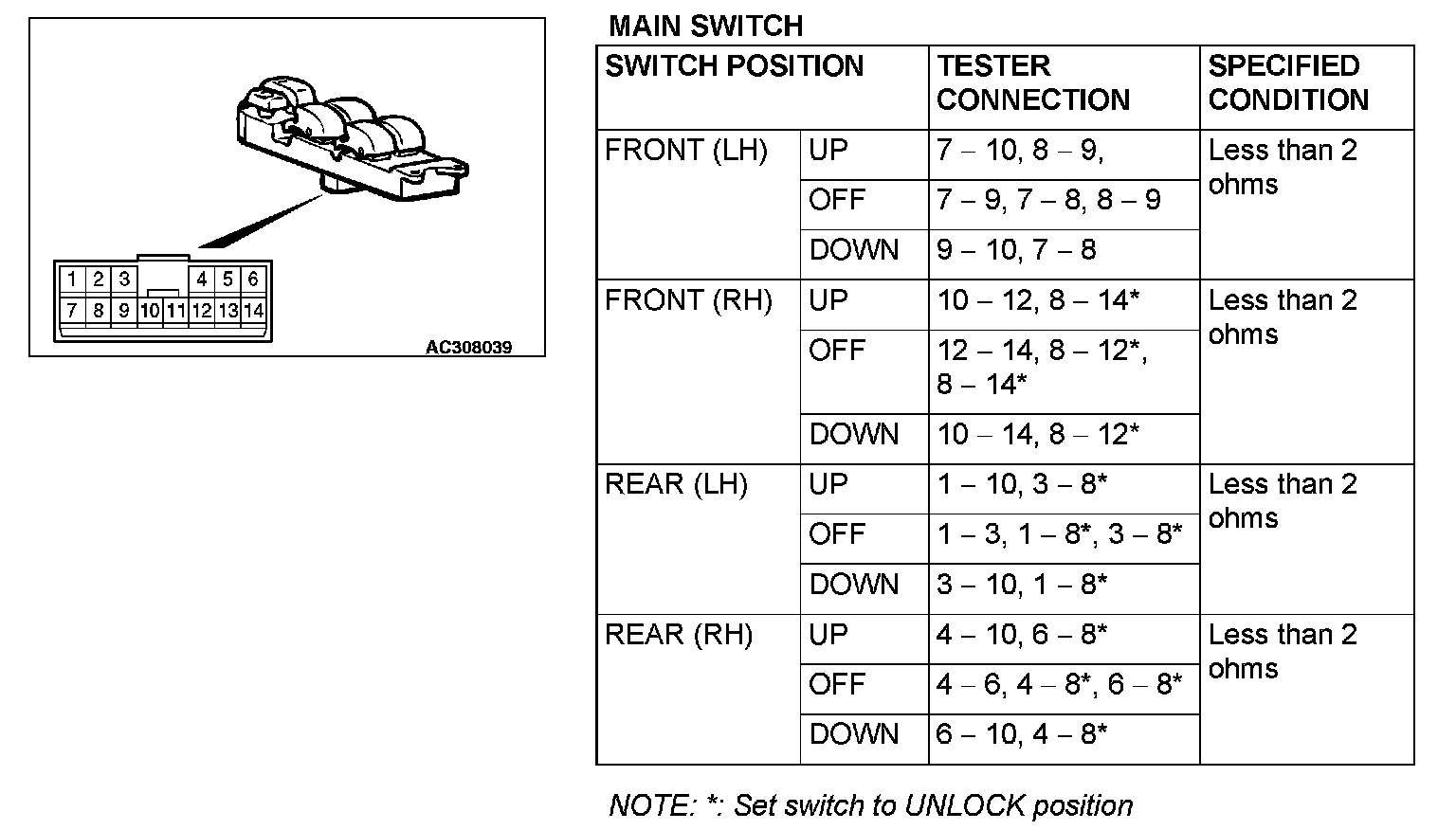

Power Window Switch Continuity Check:



Power Window Sub Switch Check:
