Home >> Mitsubishi >> 2004 >> Lancer L4-2.4L SOHC >> Repair and Diagnosis >> Heating and Air Conditioning >> Heater Core >> Specifications

Heater Core: Specifications

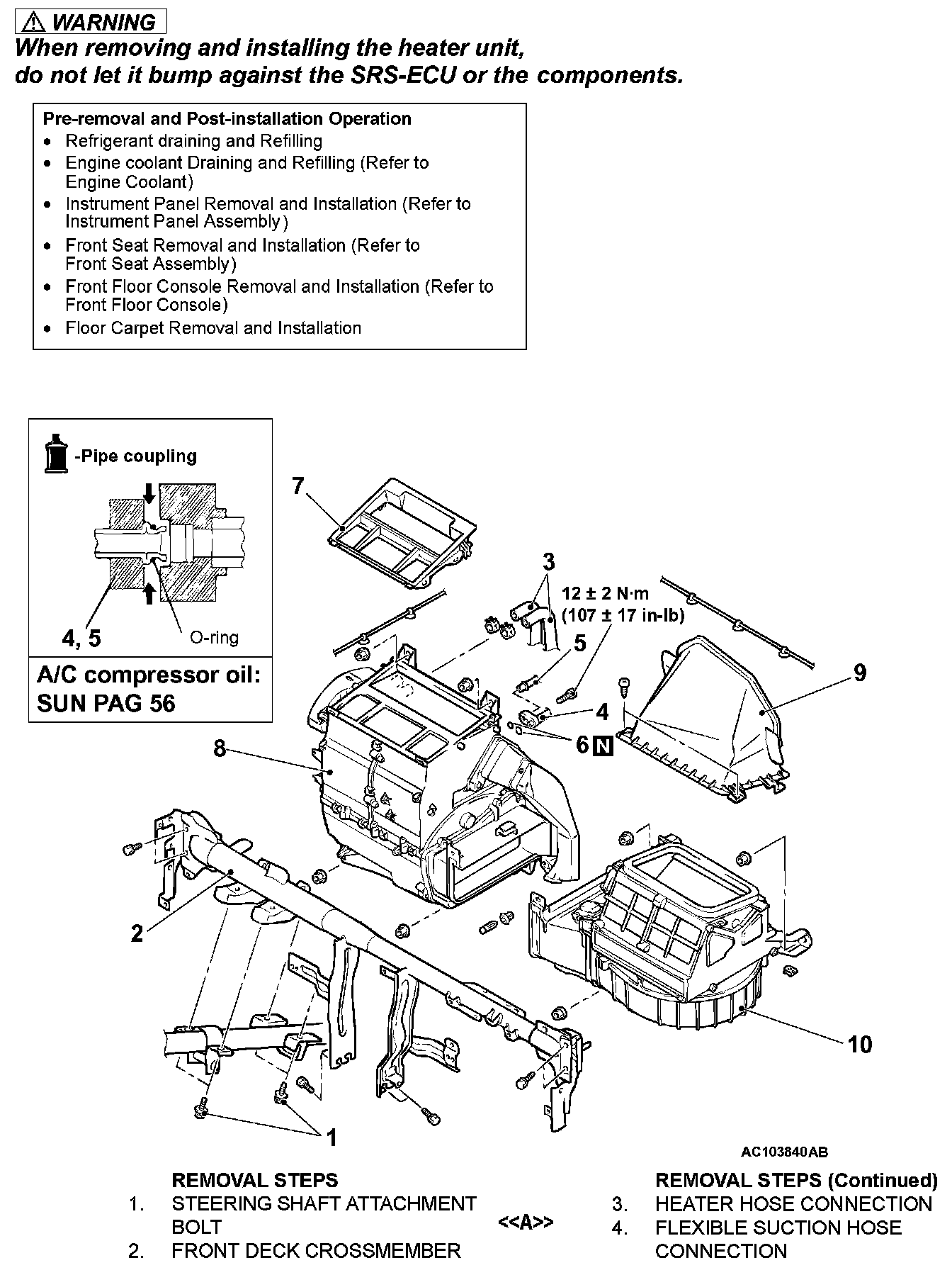

HEATER UNIT / Removal And Installation:

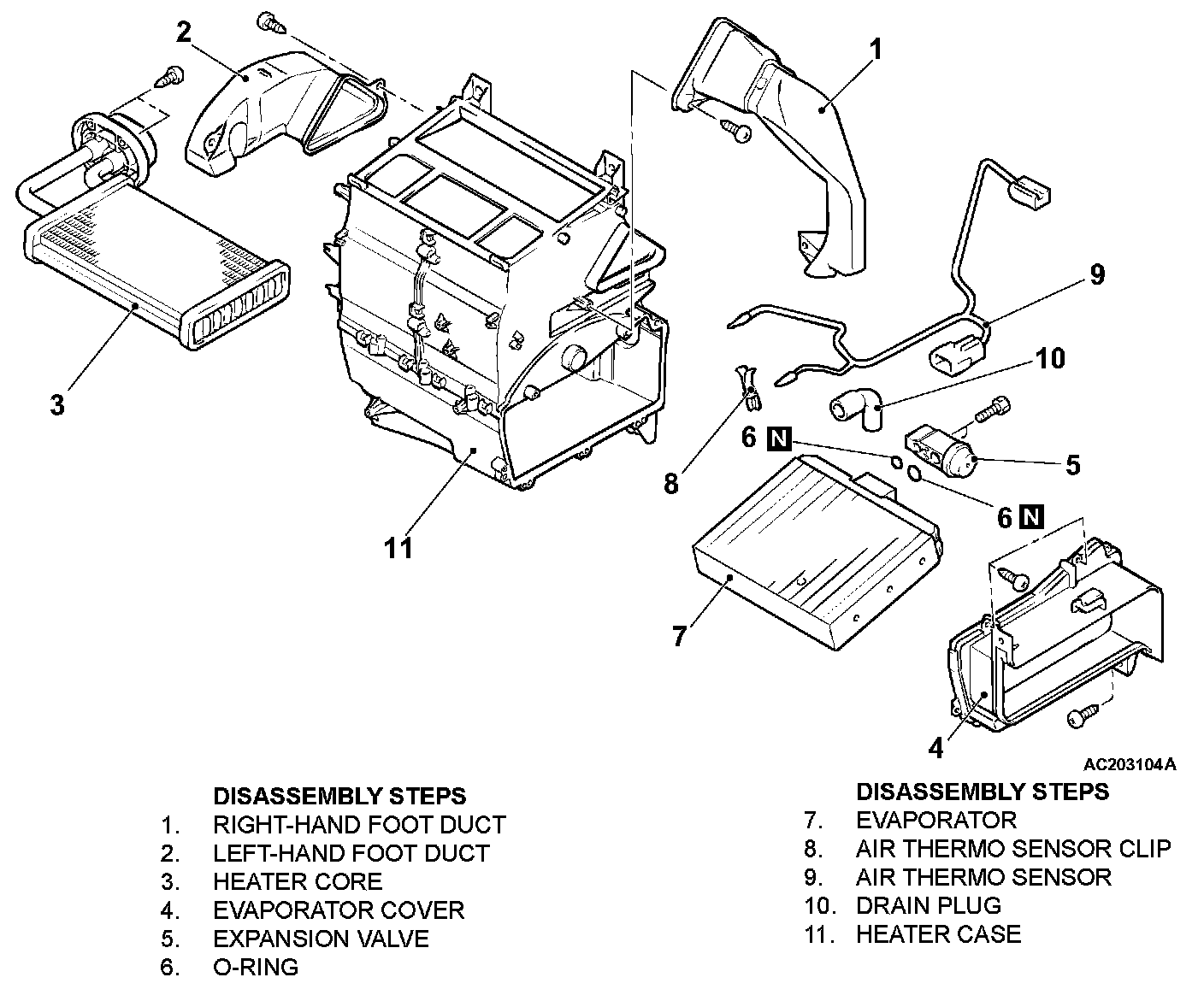

HEATER UNIT / Disassembly And Assembly:
