Home >> Mitsubishi >> 2004 >> Lancer L4-2.4L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Cross-Member

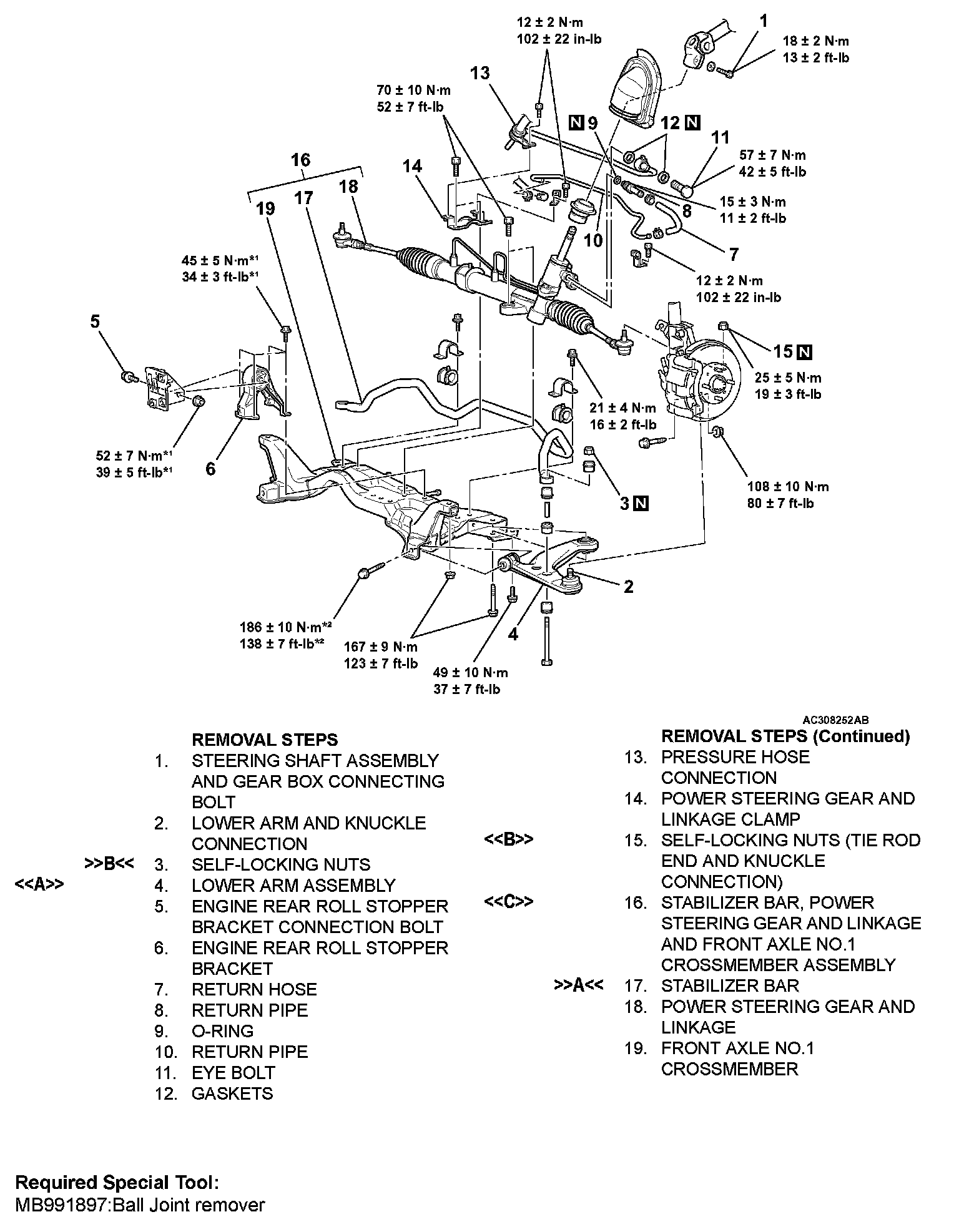

Cross-Member

Part 2 Of 2:
