Home >> Mitsubishi >> 2004 >> Lancer L4-2.0L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Cylinder Head Assembly

Cylinder Head Assembly

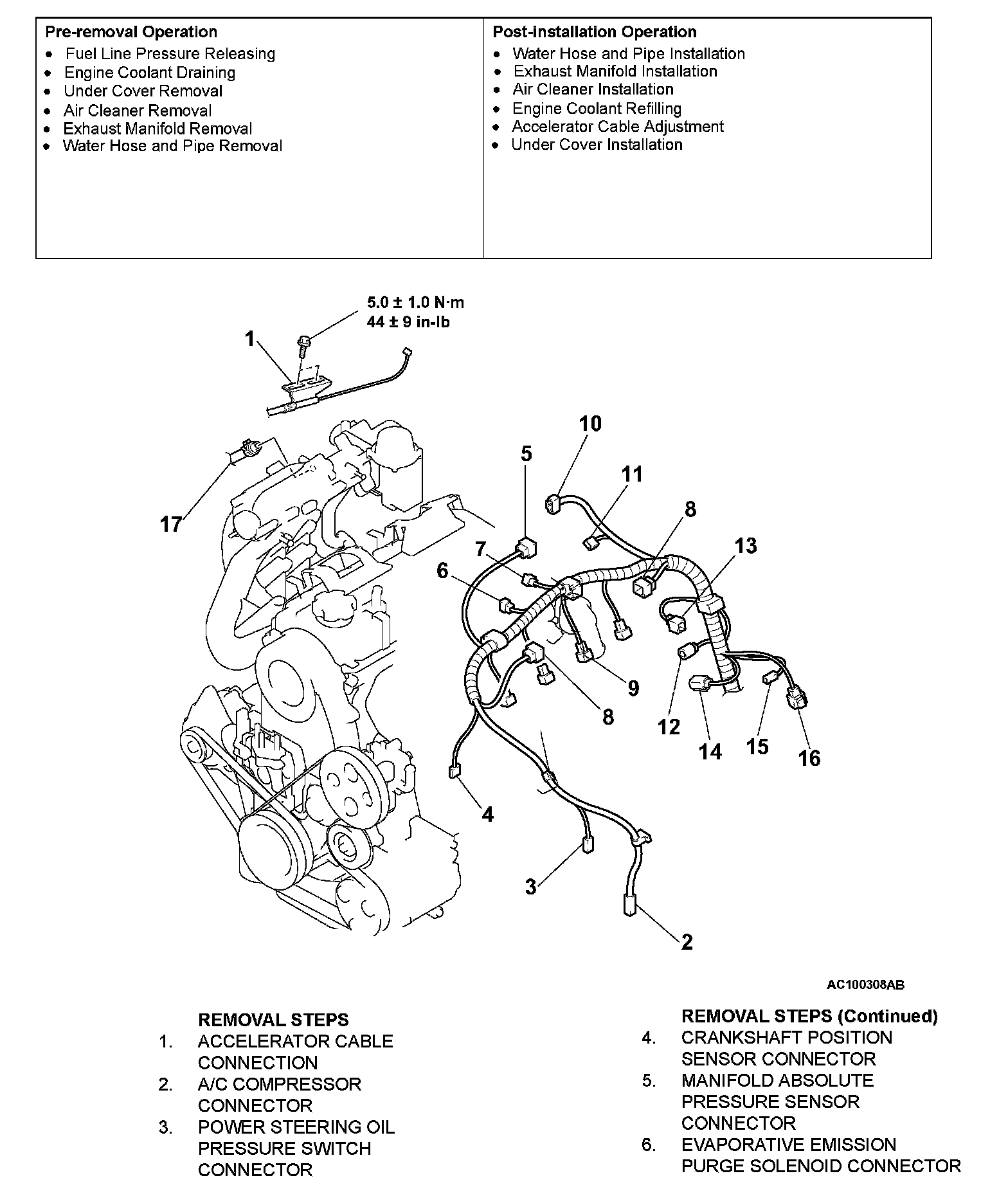

Part 1 Of 3:

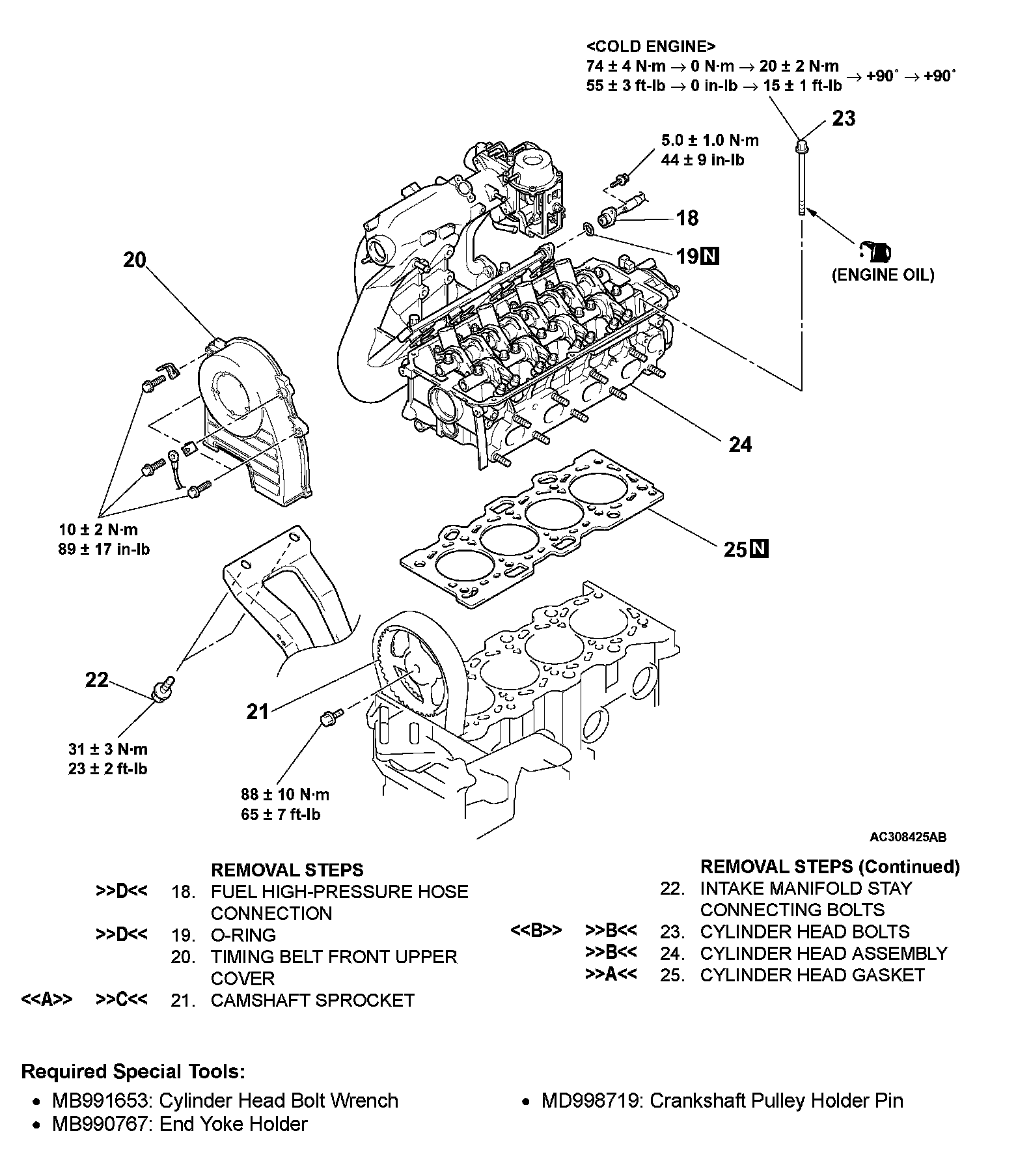

Part 3 Of 3:
