Home >> Mitsubishi >> 2004 >> Lancer L4-2.0L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Camshaft, Engine

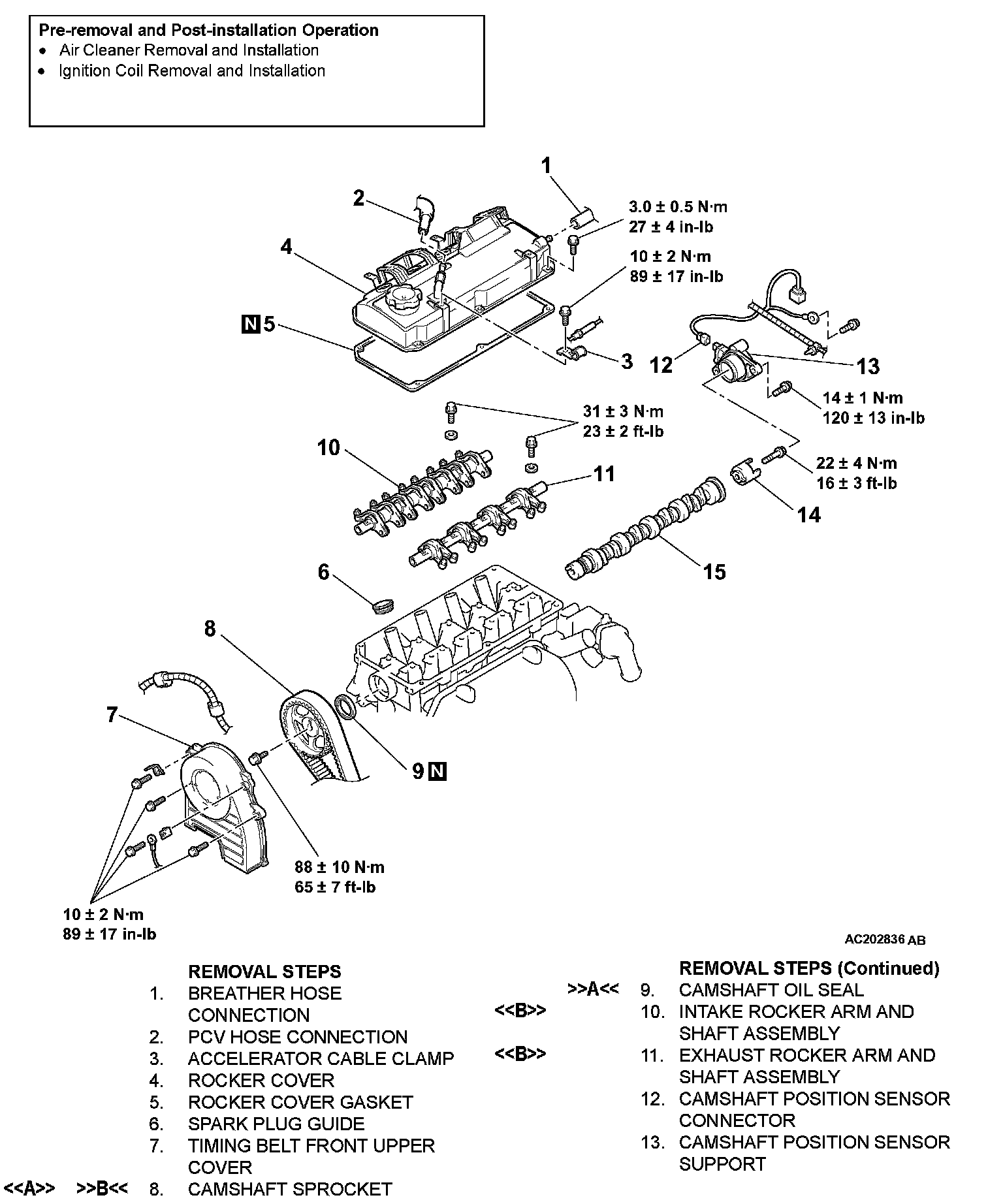

Camshaft, Engine

Part 1 Of 2:



Part 2 Of 2:
