Engine Control Module

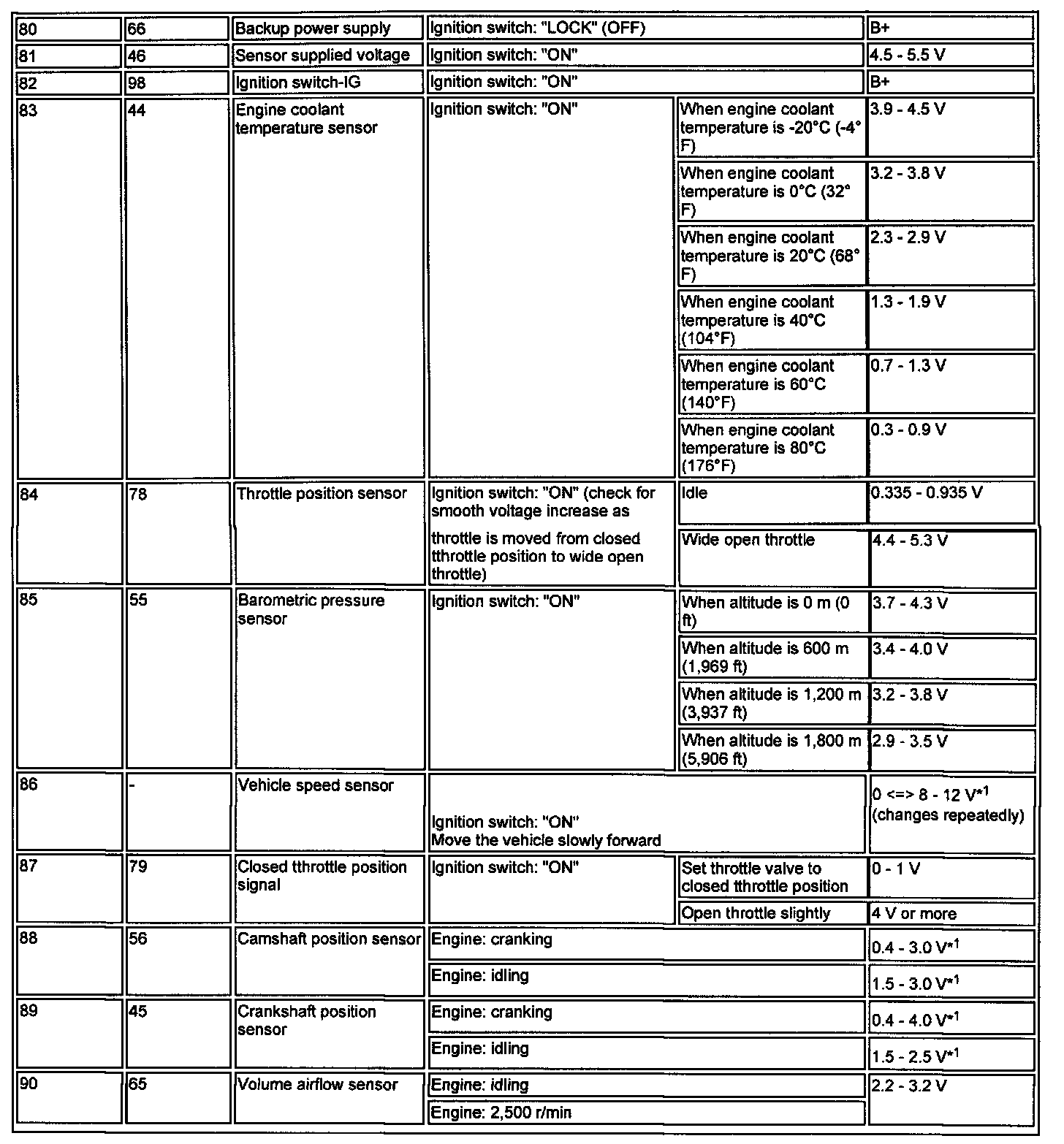

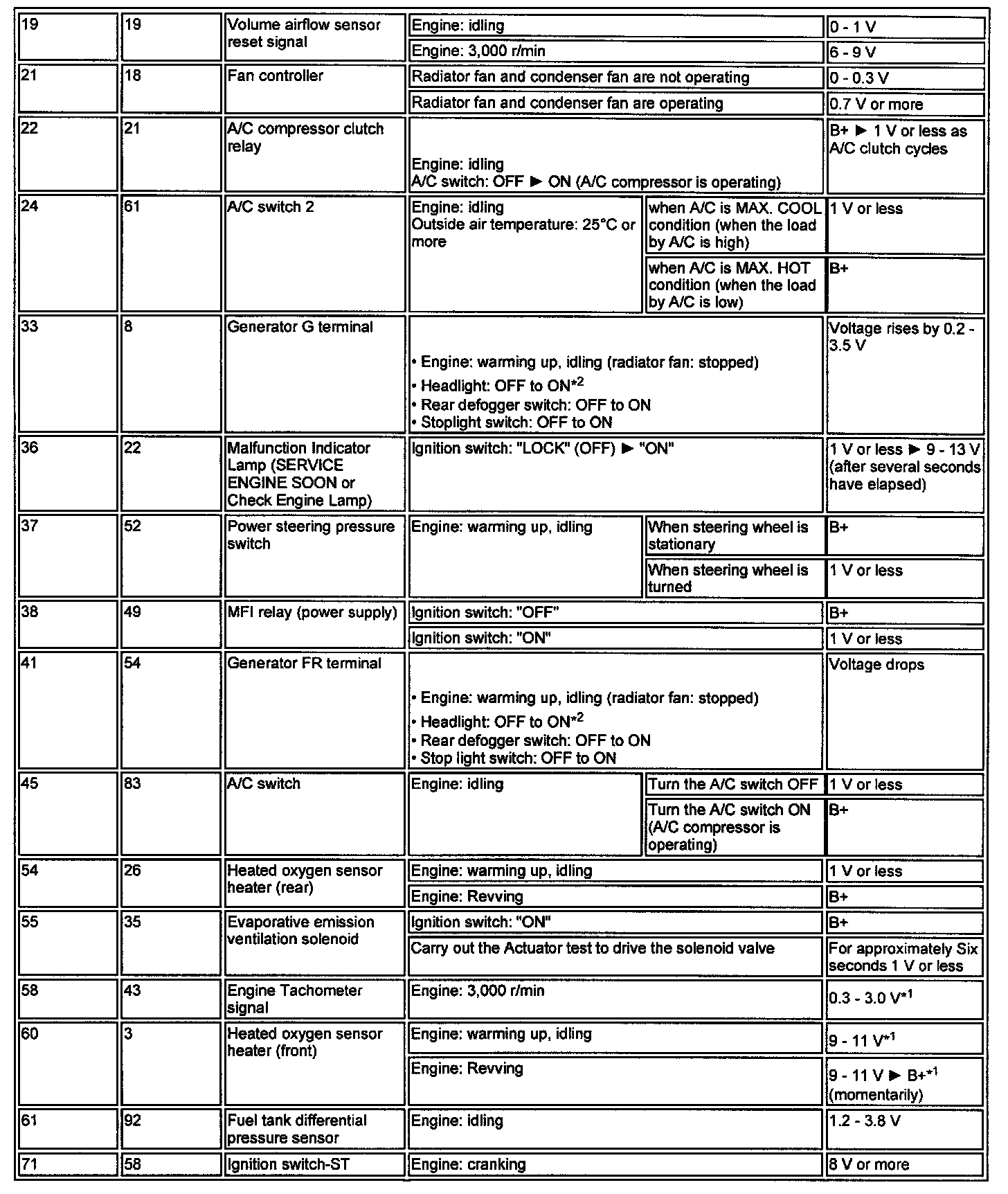

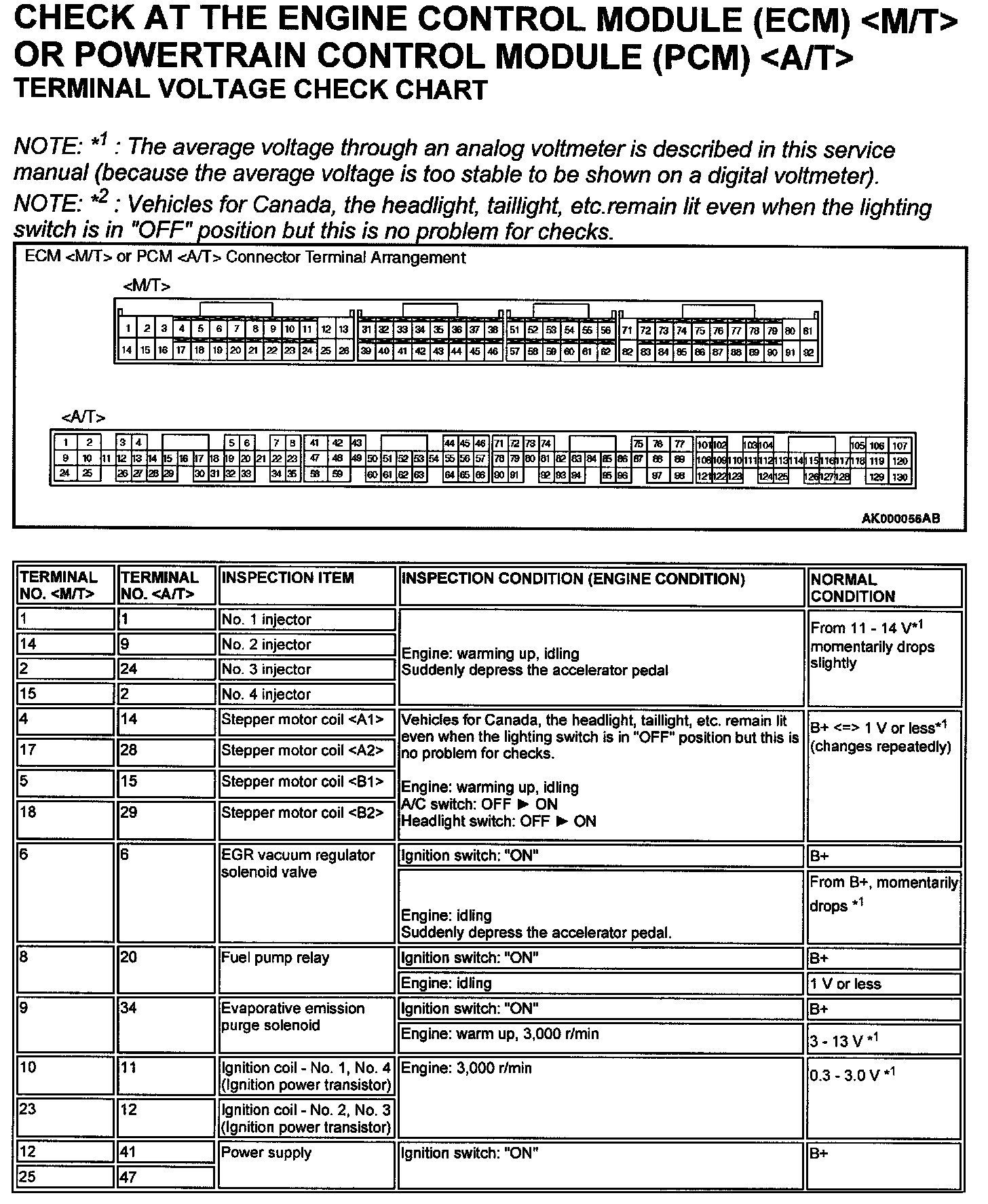

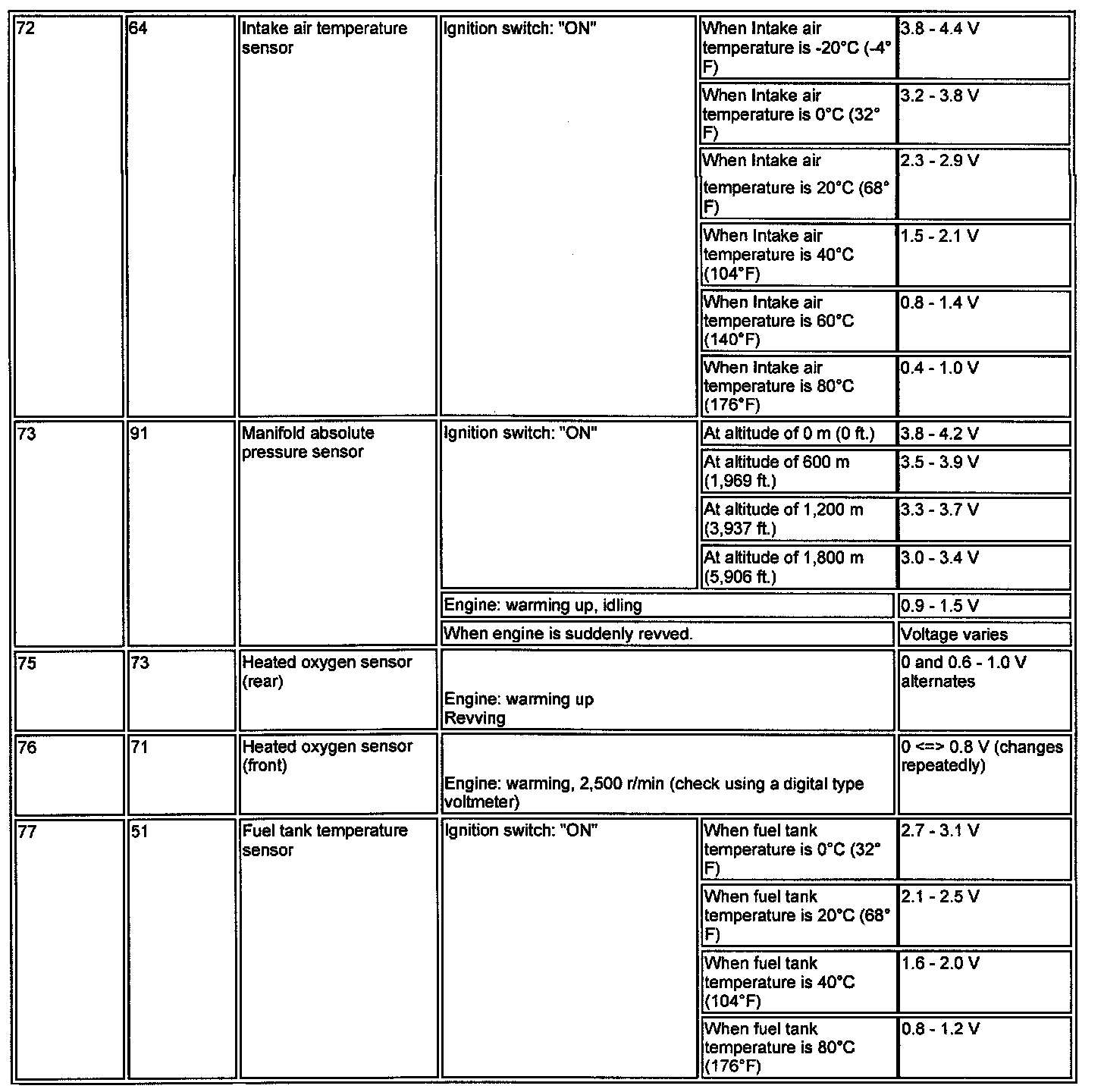

TERMINAL VOLTAGE CHECK CHART

Part 1:




Part 2:




Part 3:




Part 4:

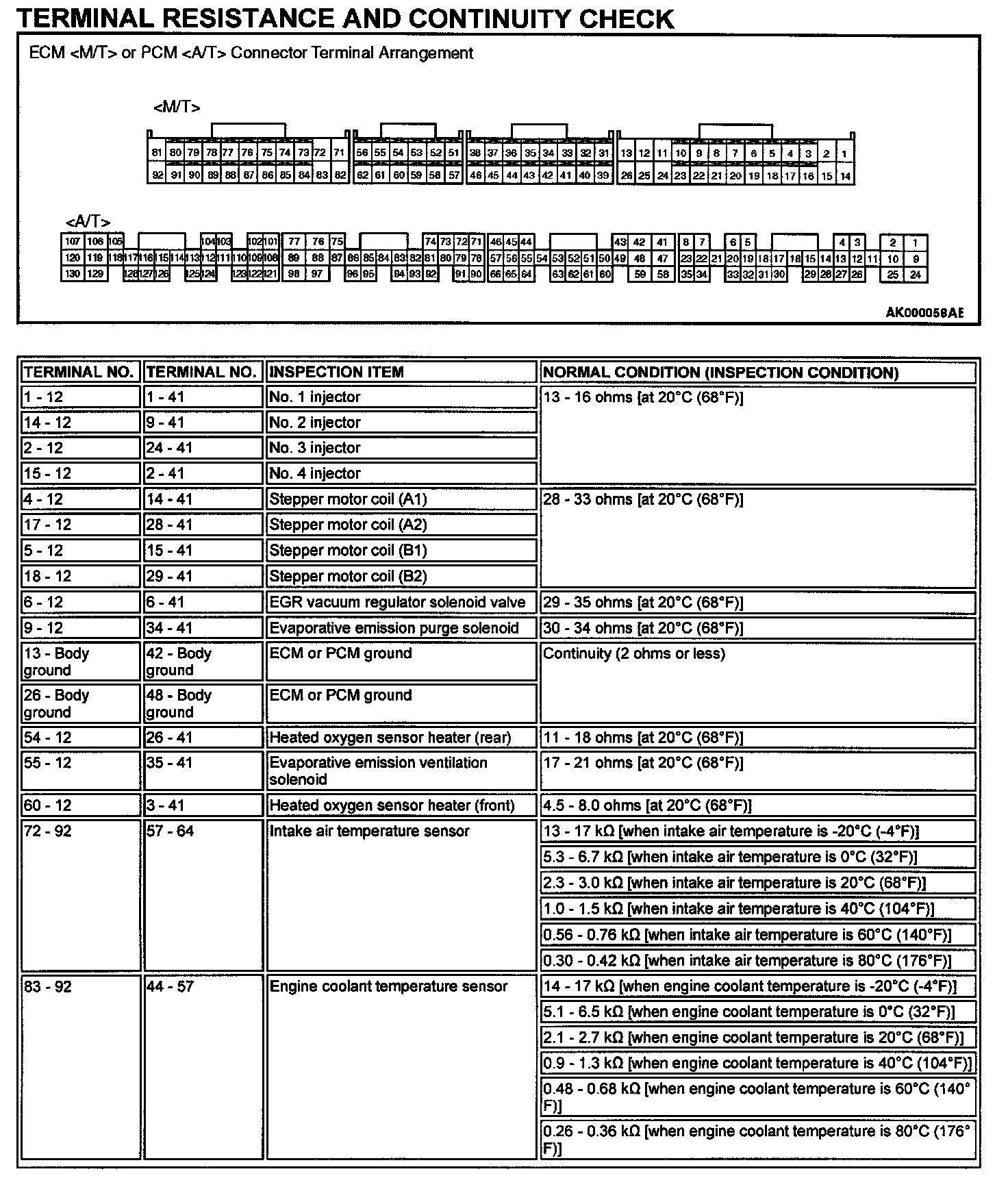

TERMINAL RESISTANCE AND CONTINUITY CHECK
