Inspection Procedure Using An Oscilloscope: Notes

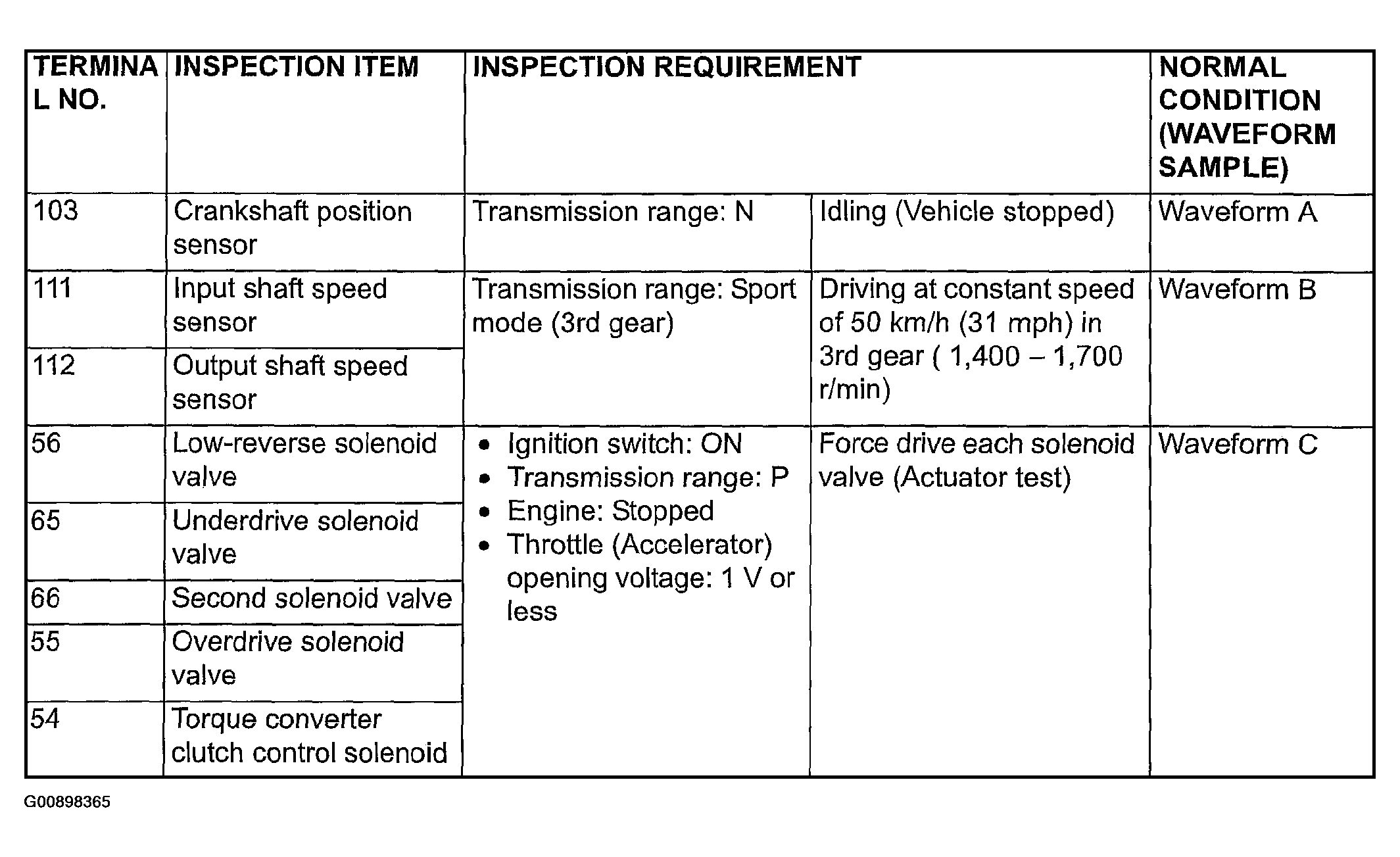

Fig 1: Oscilloscope Inspection Procedure Chart

G00898365

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
