Home >> Mitsubishi >> 2004 >> Eclipse V6-3.0L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Oxygen Sensor >> Locations

Oxygen Sensor: Locations

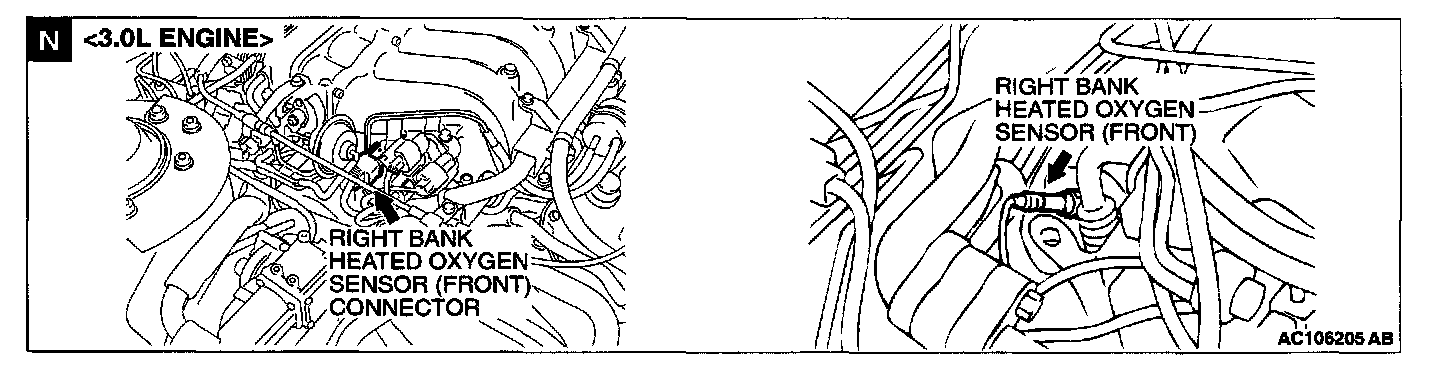

View N:

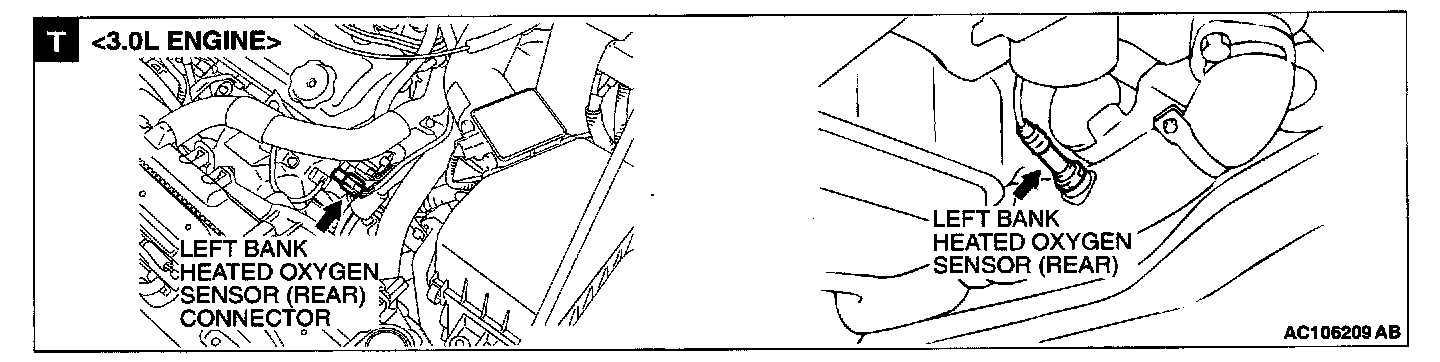

View T:

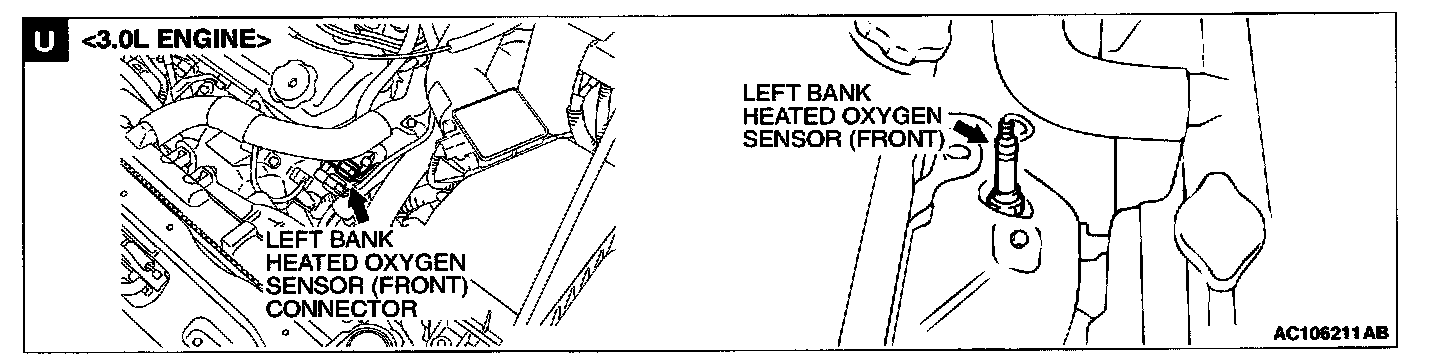

View U:

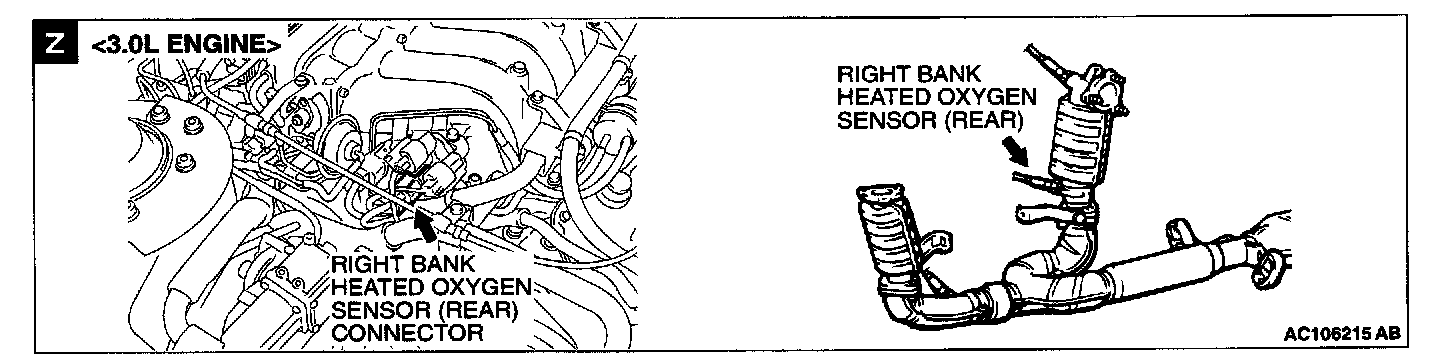

View Z:



Overall View:
