Removal and Installation

ENGINE ASSEMBLY REPLACEMENT W/ RELATED COMPONENTS

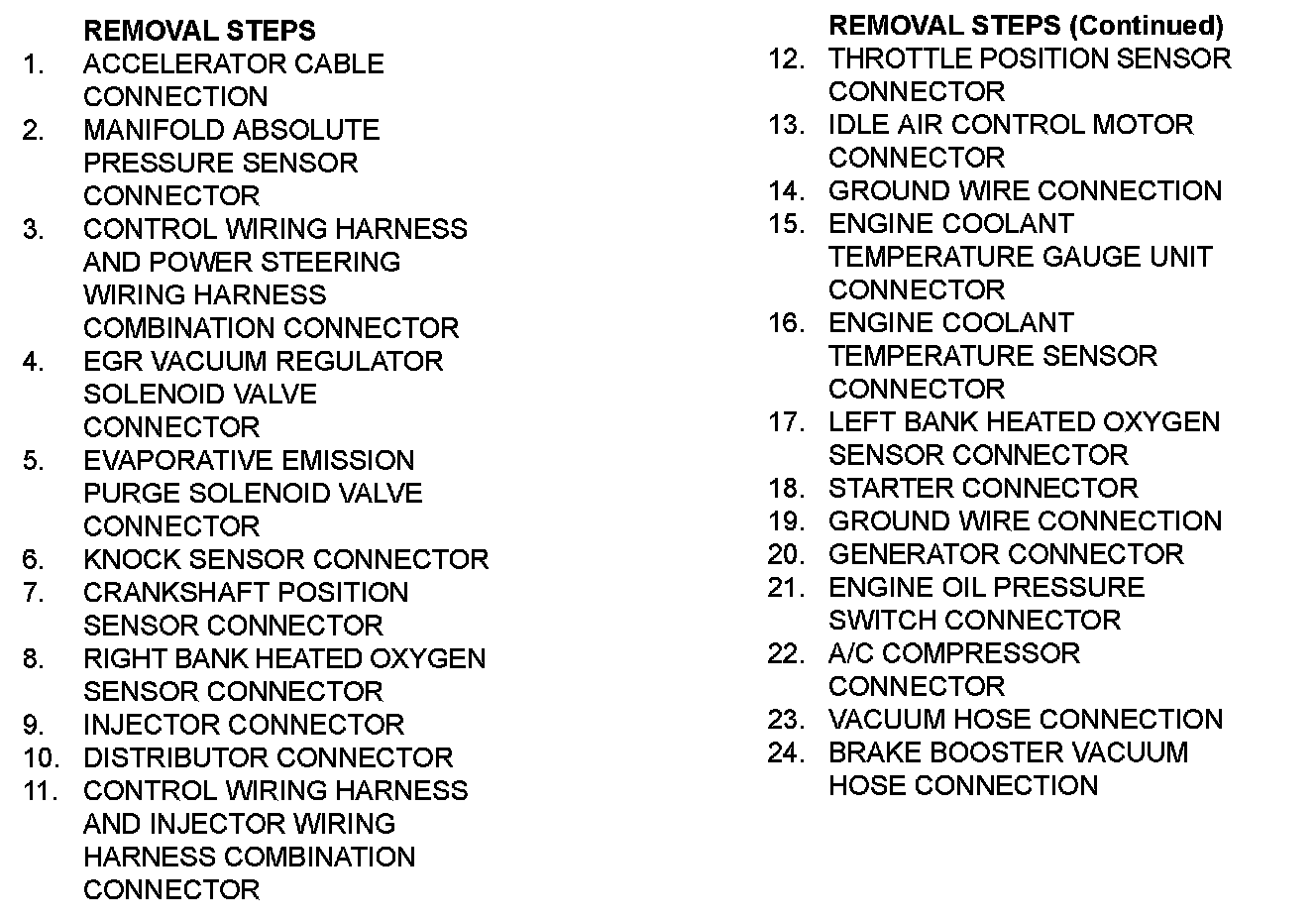

Part 1 Of 3:

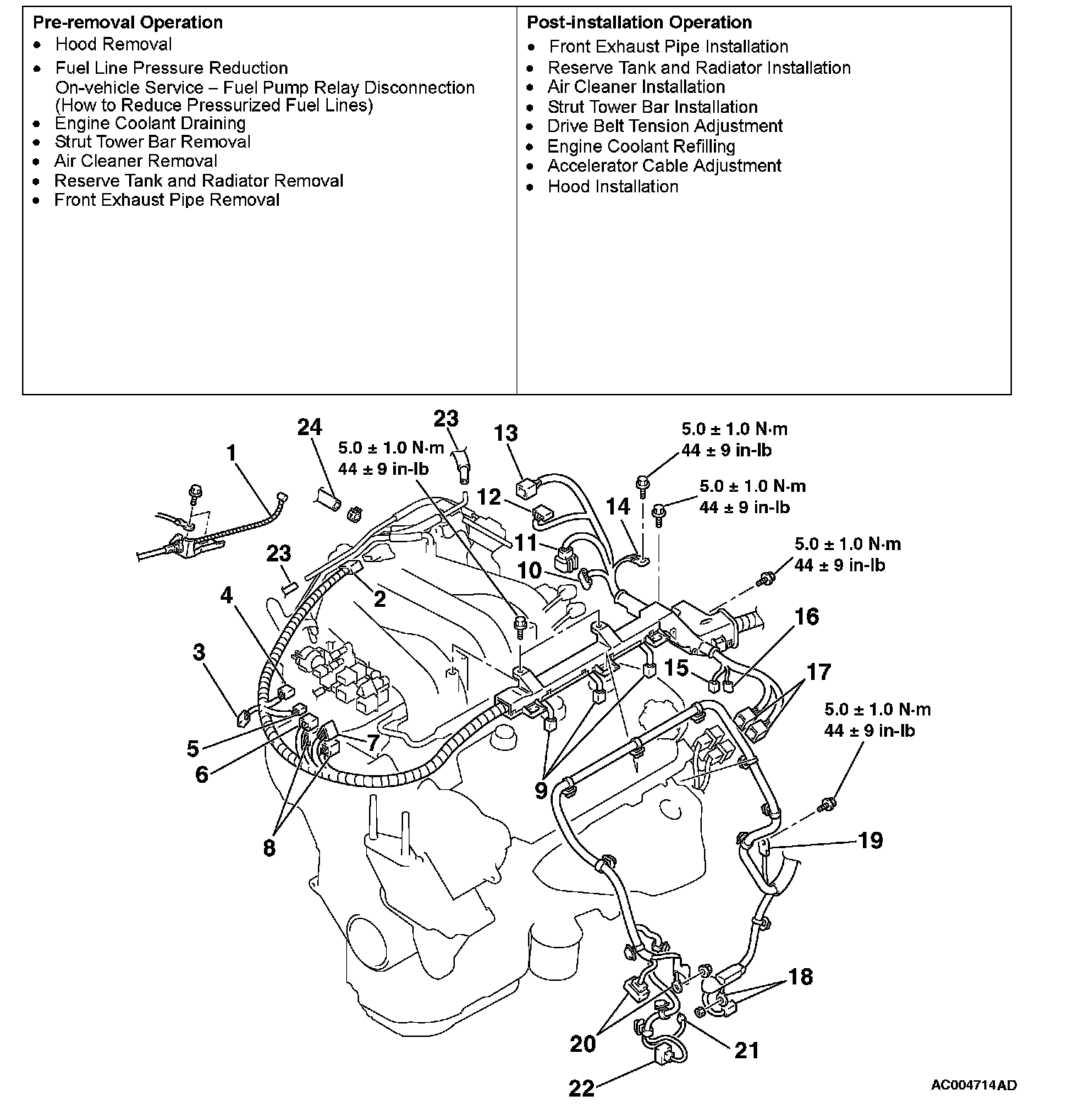

Part 2 Of 3:

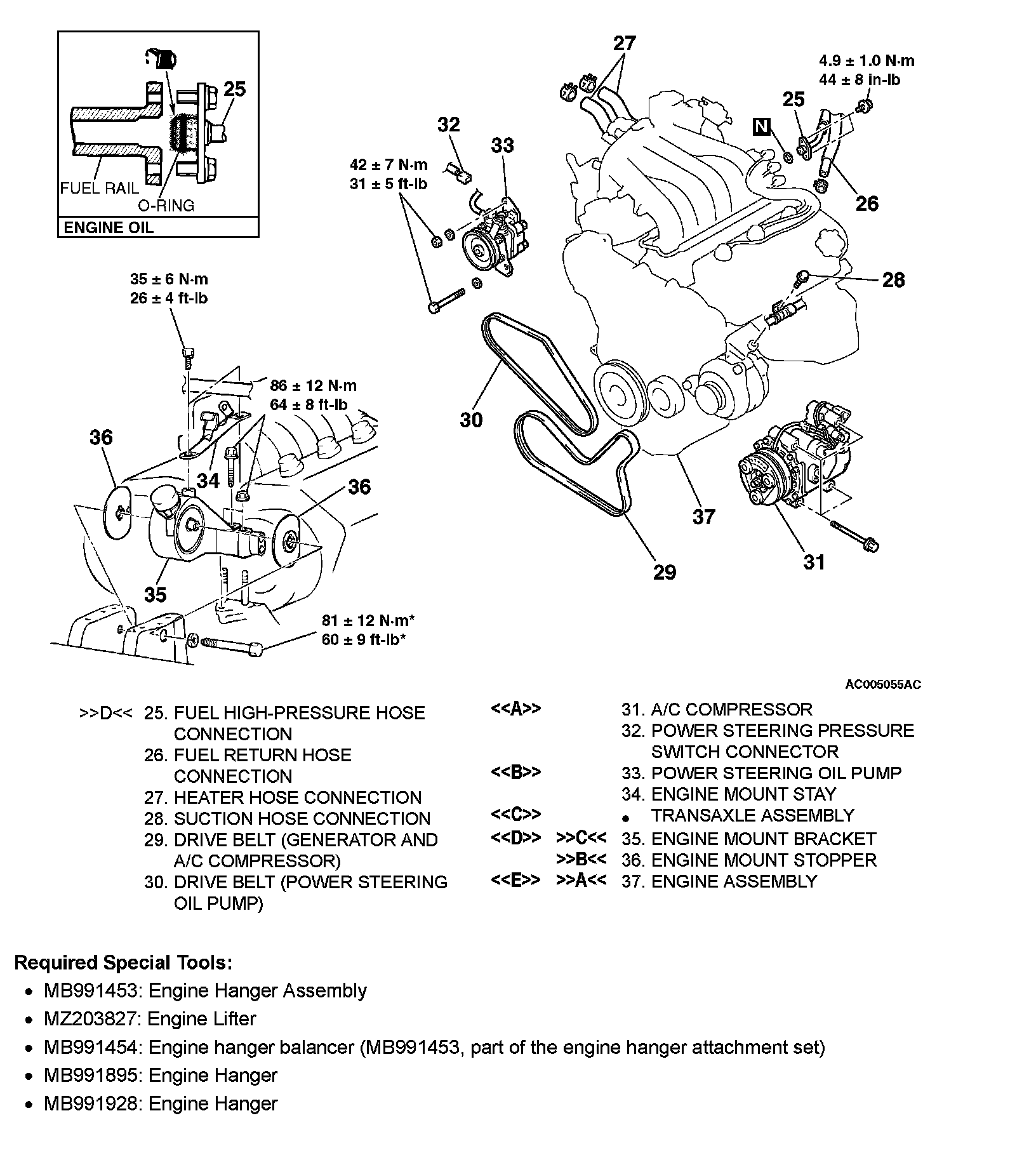

Part 3 Of 3:

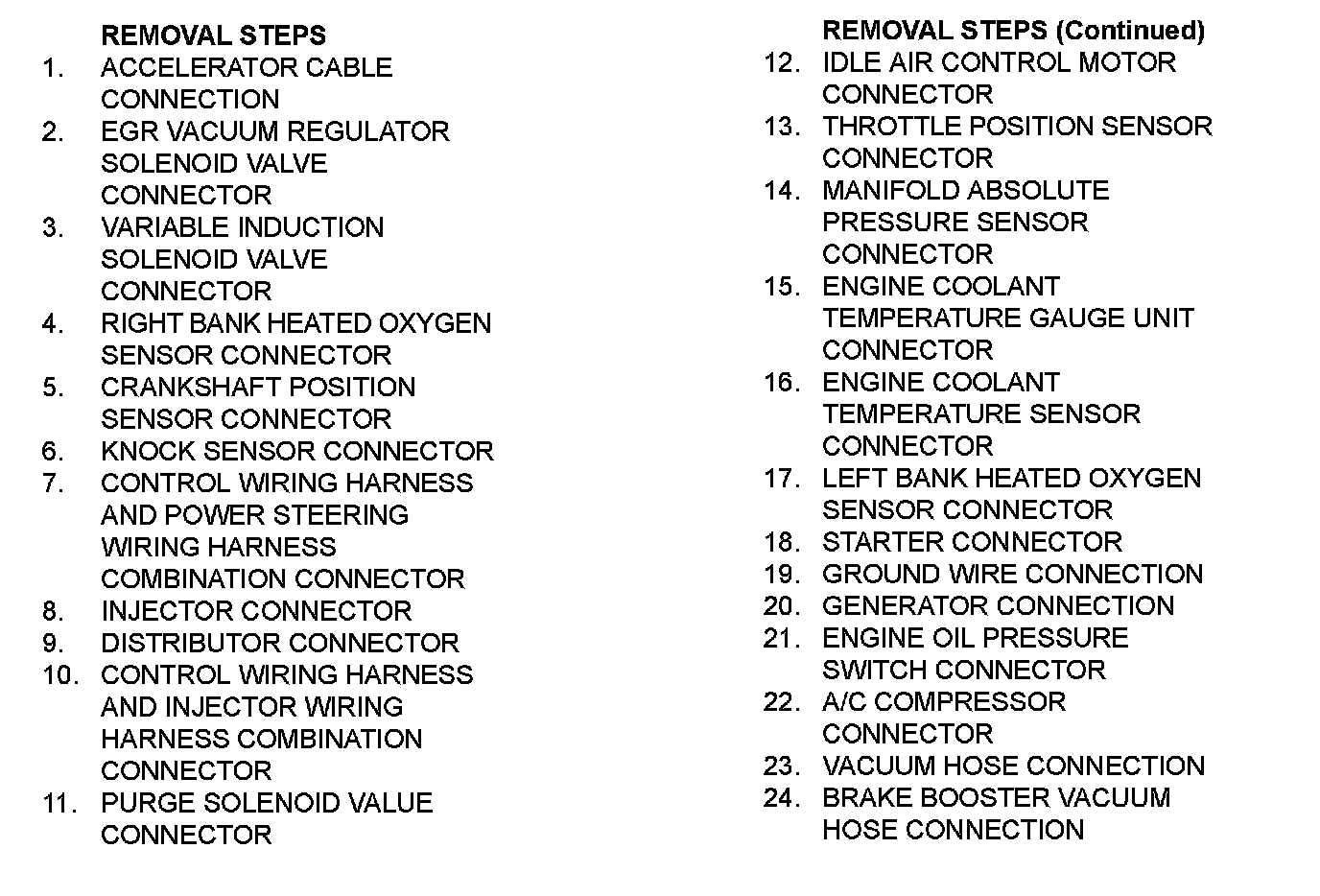

Part 1 Of 3:

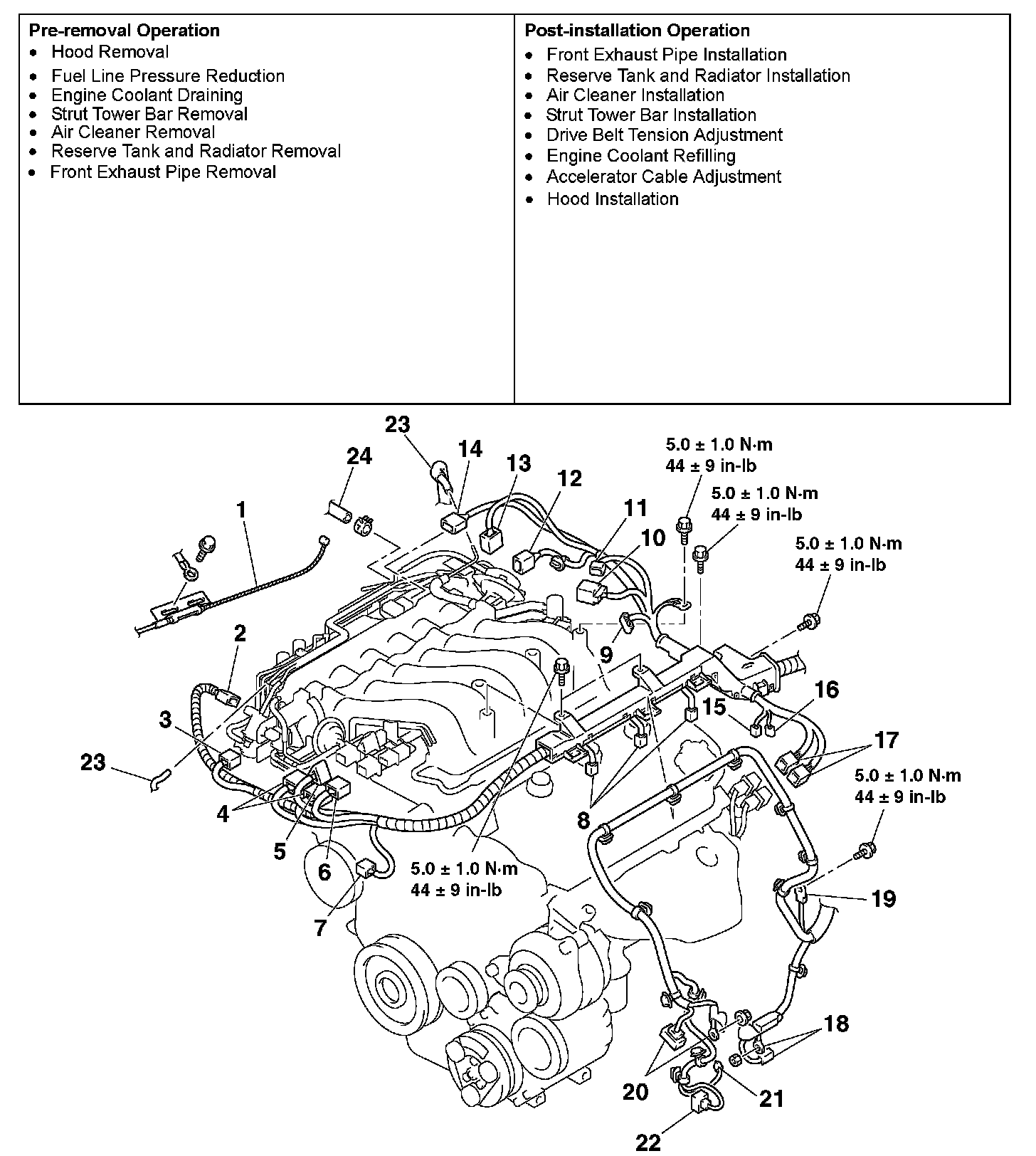

Part 2 Of 3:

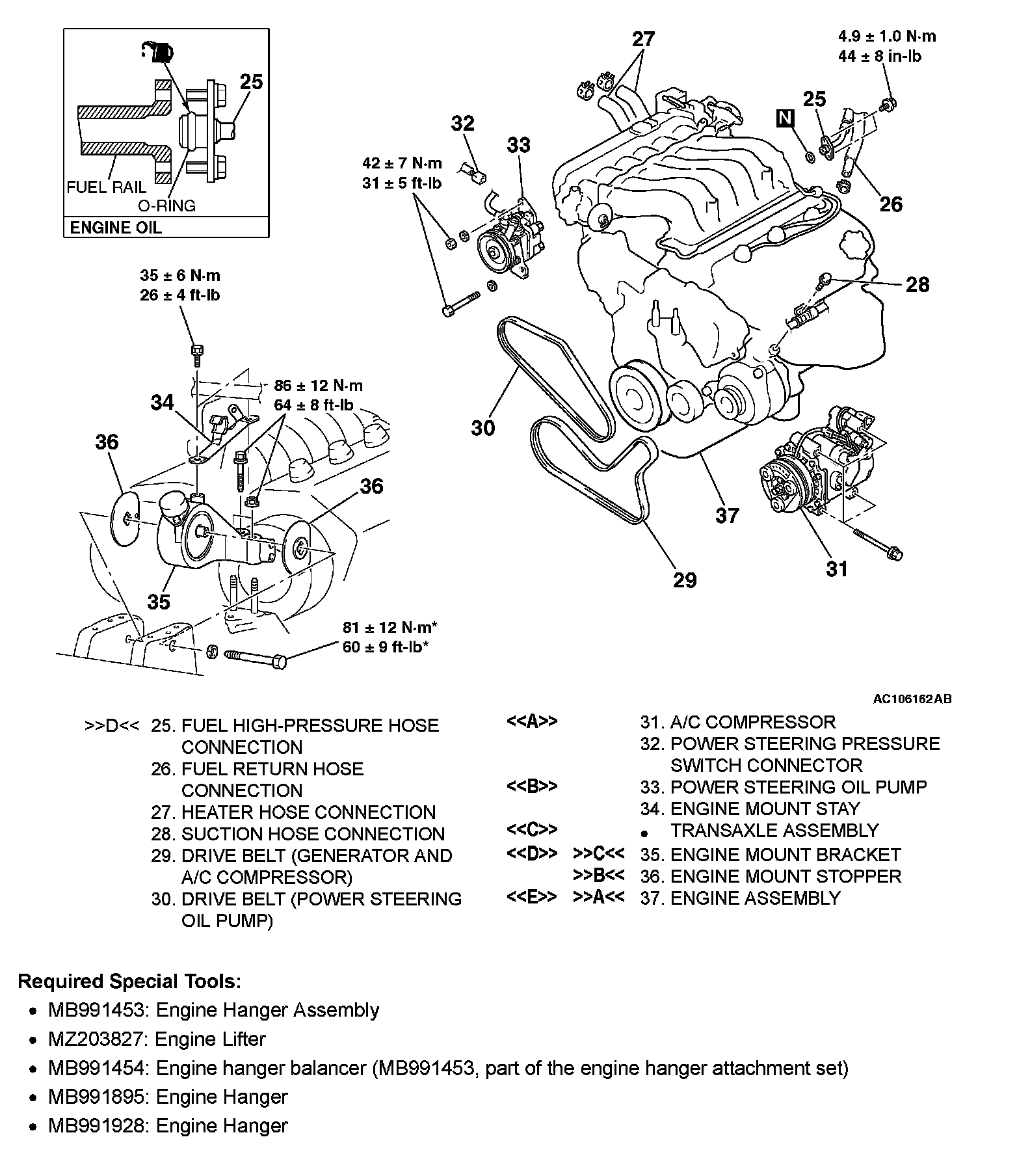

Part 3 Of 3:
