Engine Control Module

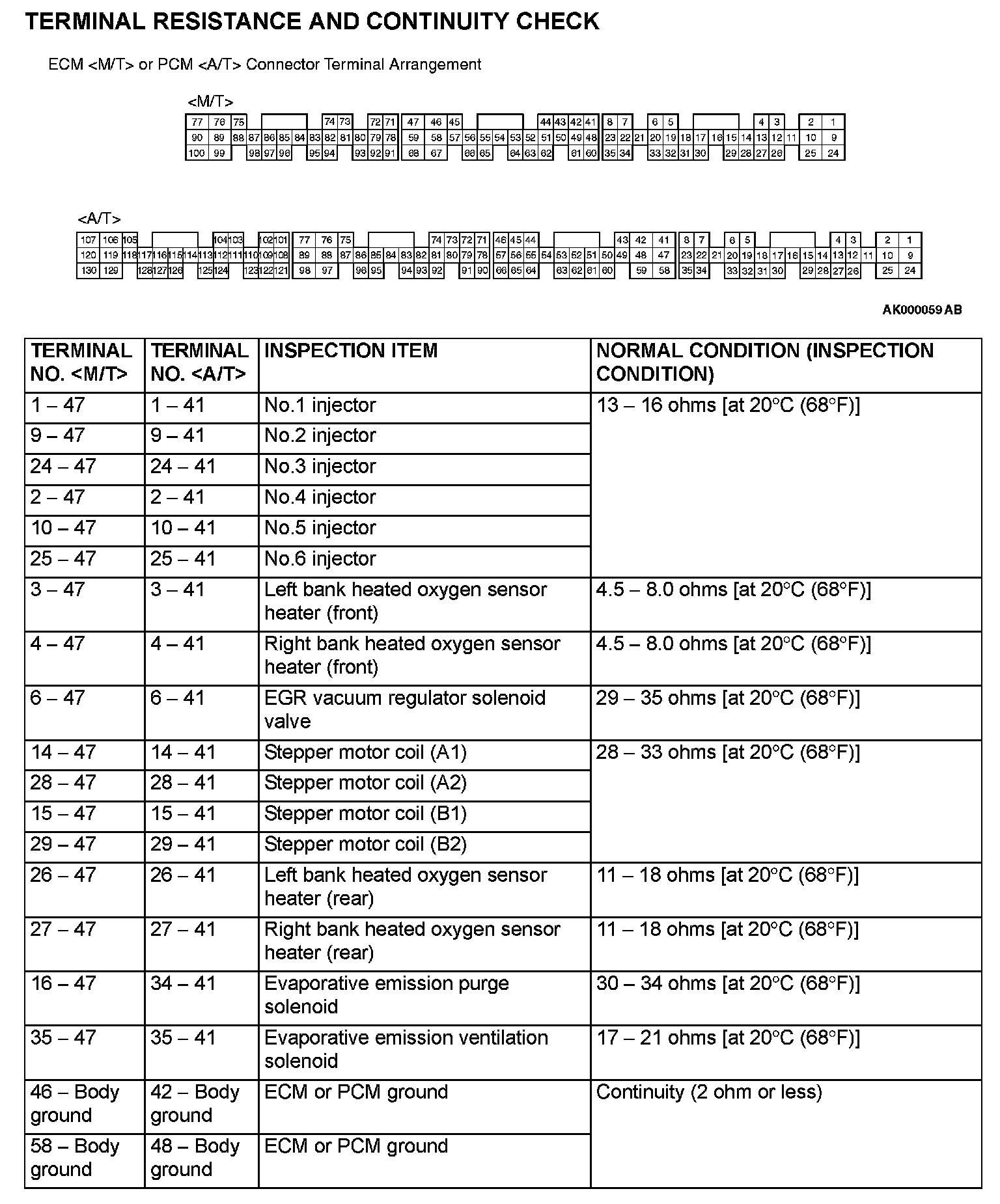

Terminal Resistance And Continuity Check Part 1:

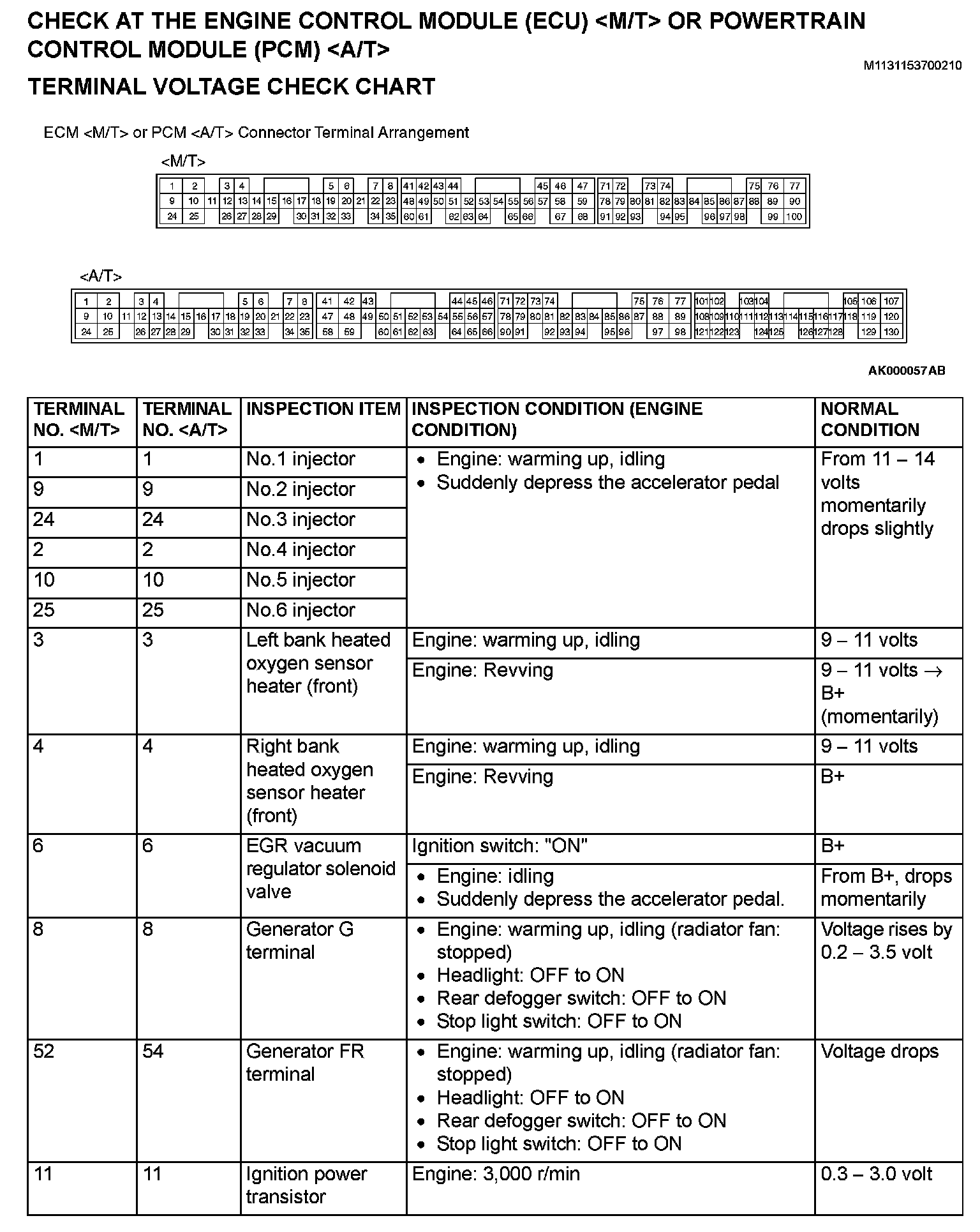

Terminal Voltage Check Chart Part 1:

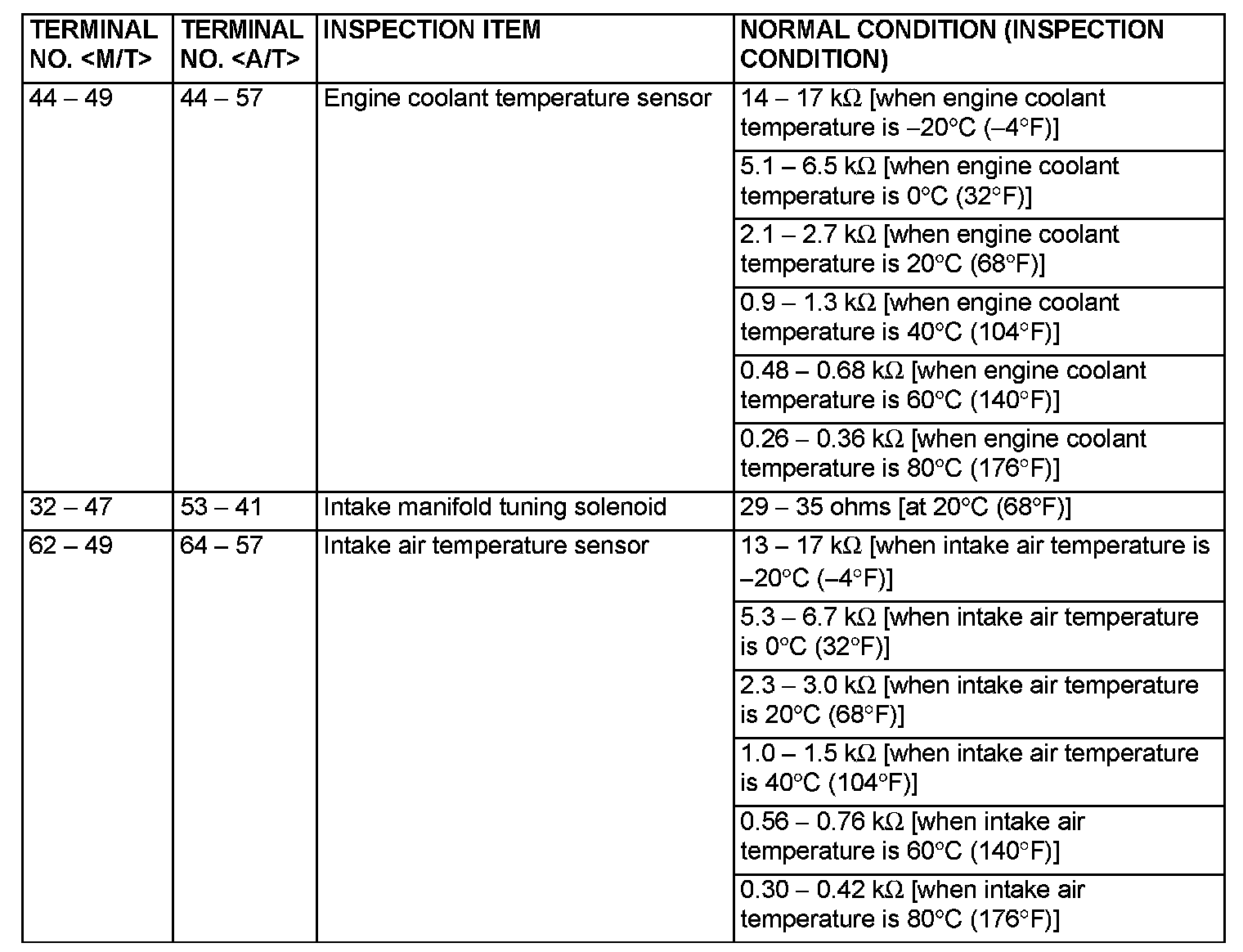

Terminal Resistance And Continuity Check Part 2:

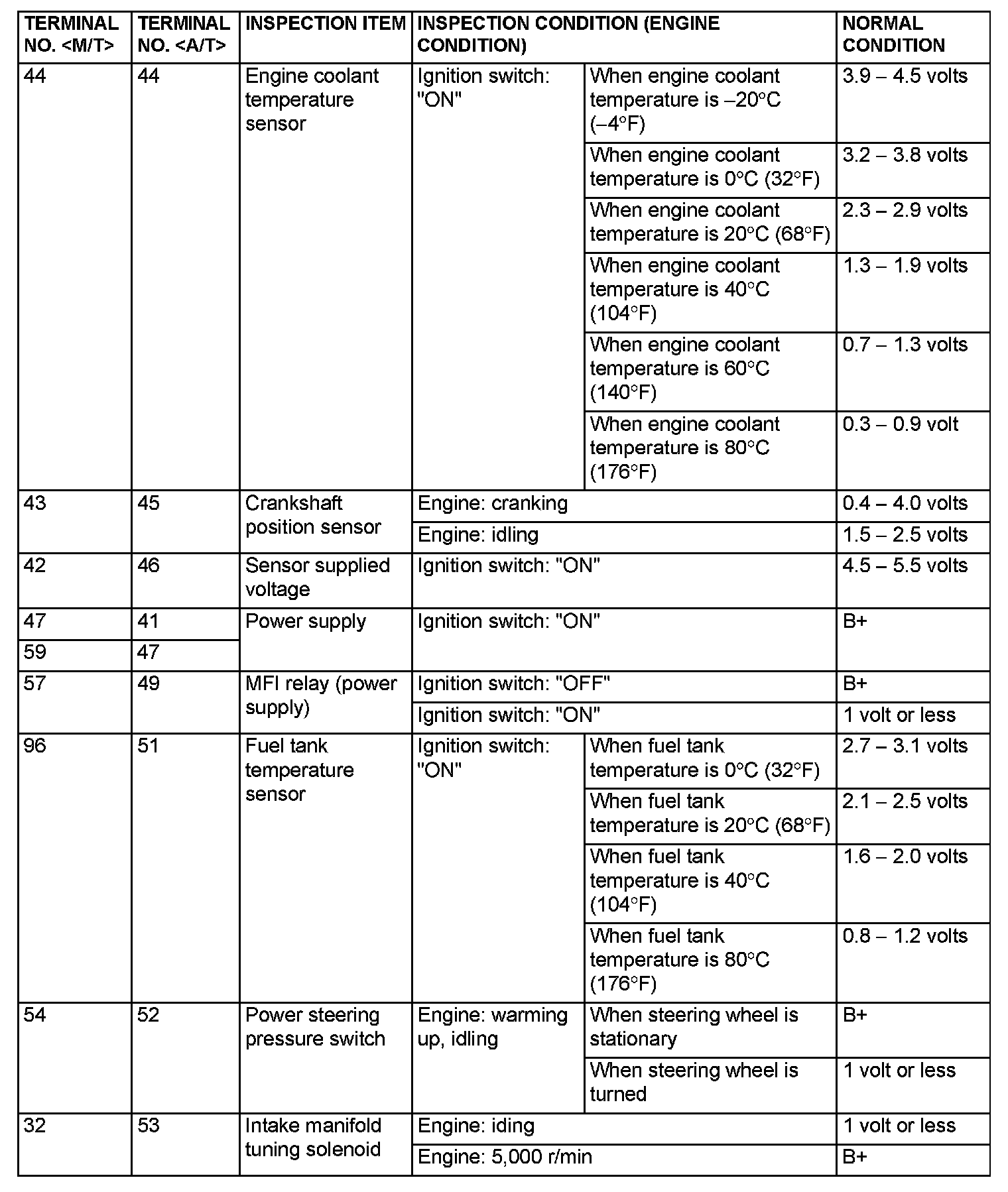

Terminal Voltage Check Chart Part 2:

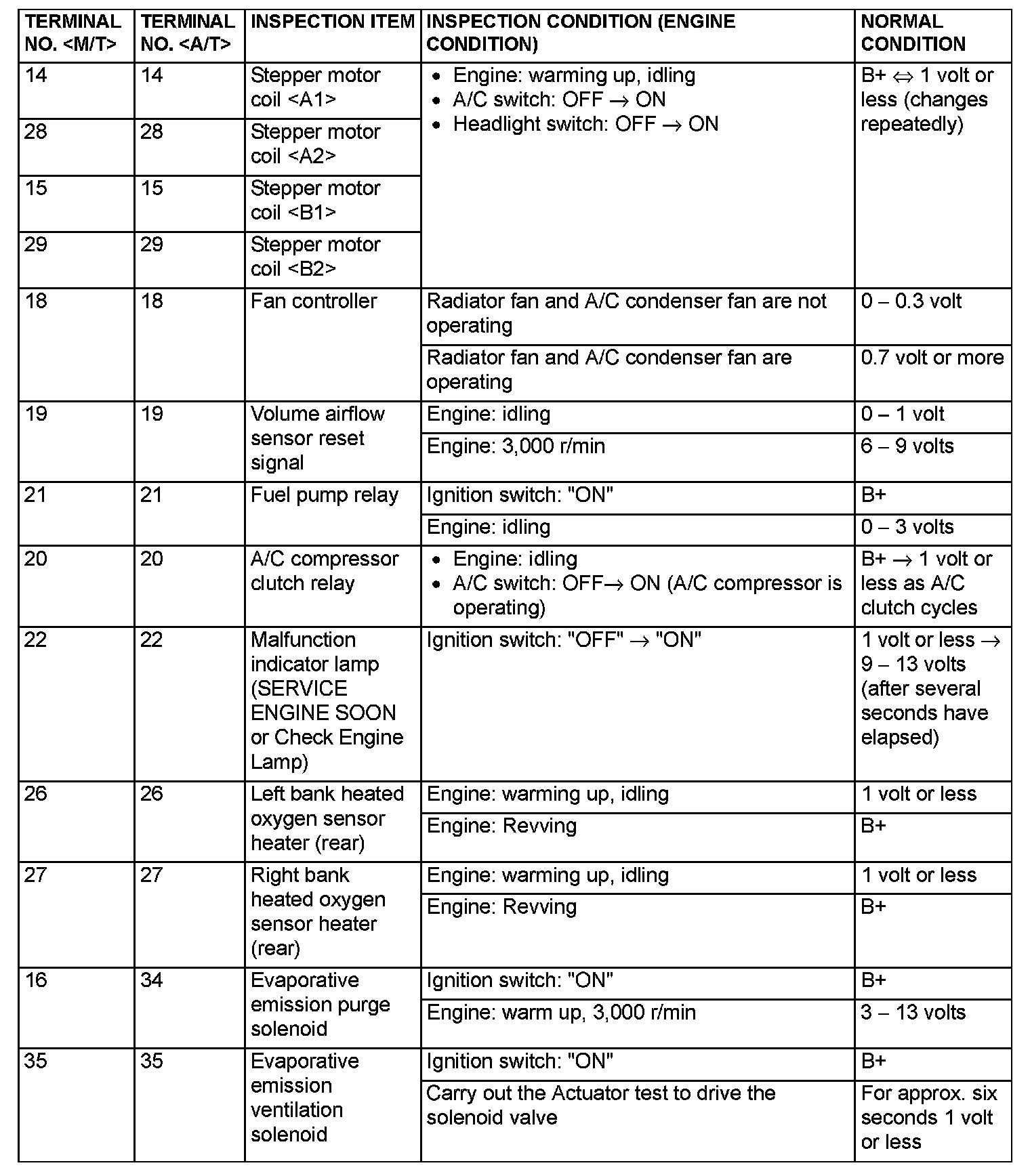

Terminal Voltage Check Chart Part 3:

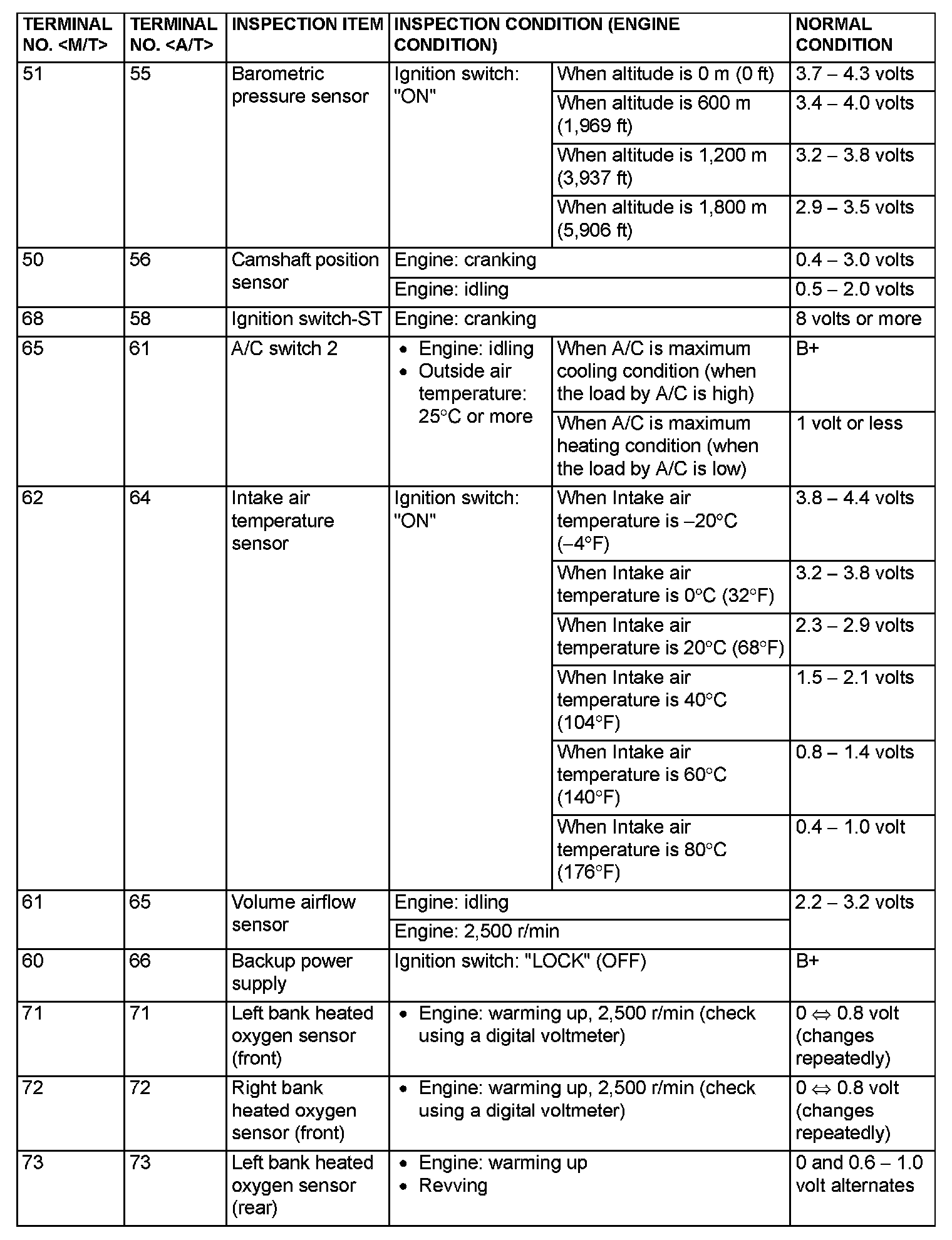

Terminal Voltage Check Chart Part 4:

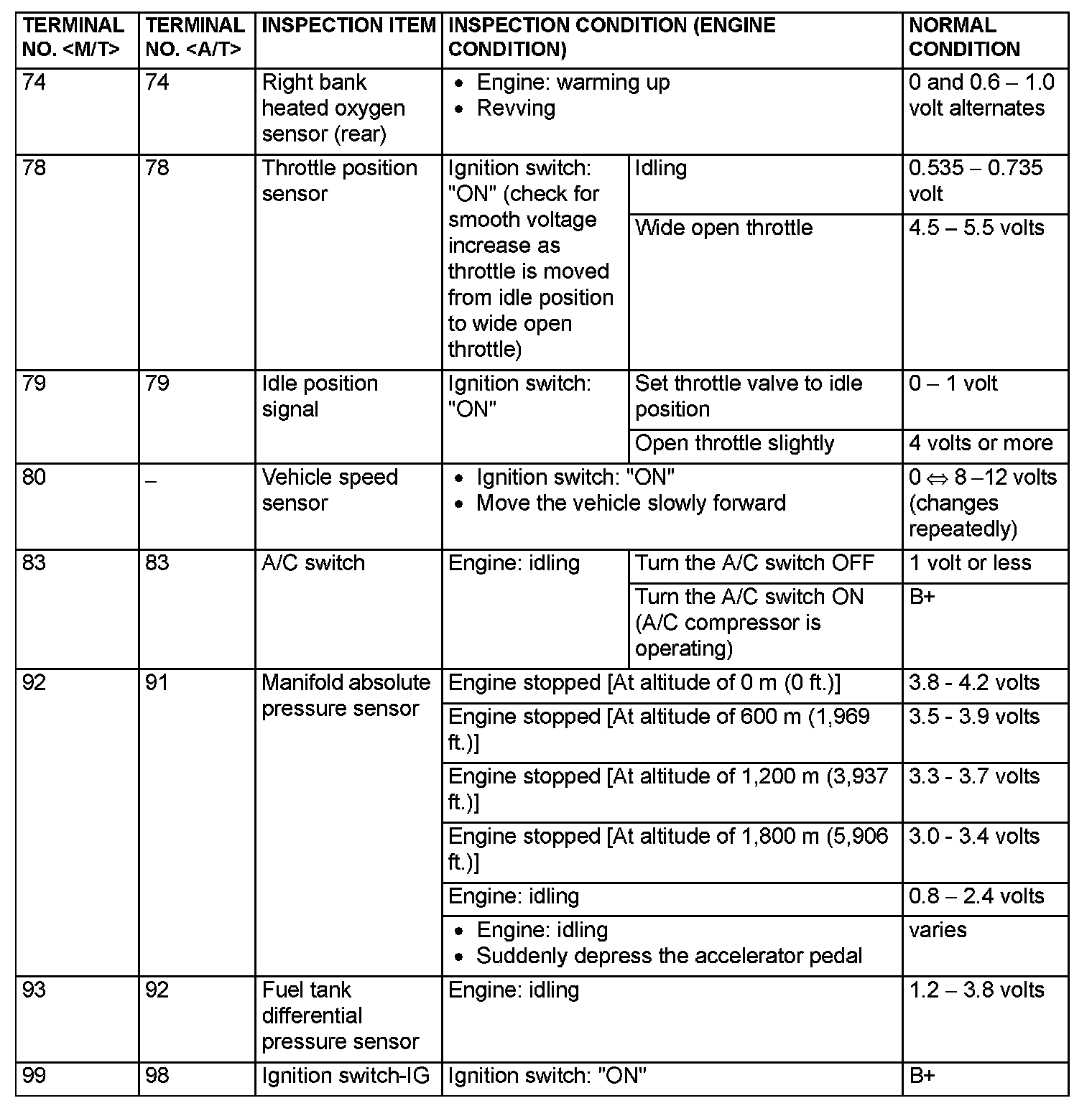

Terminal Voltage Check Chart Part 5:
