Home >> Mitsubishi >> 2004 >> Eclipse L4-2.4L SOHC >> Repair and Diagnosis >> Heating and Air Conditioning >> Compressor Clutch Relay >> Testing and Inspection

Compressor Clutch Relay: Testing and Inspection

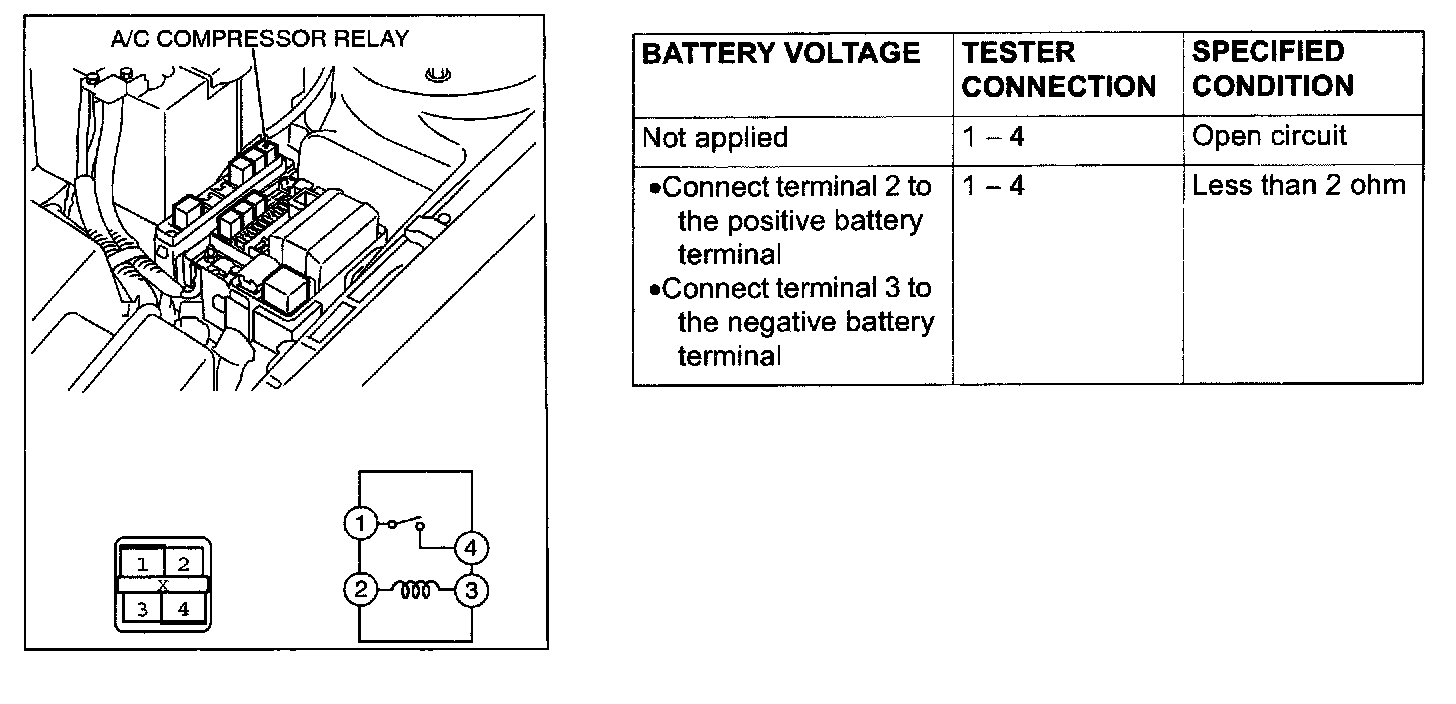

A/C Compressor Relay Continuity Check:
