Load Test Chart

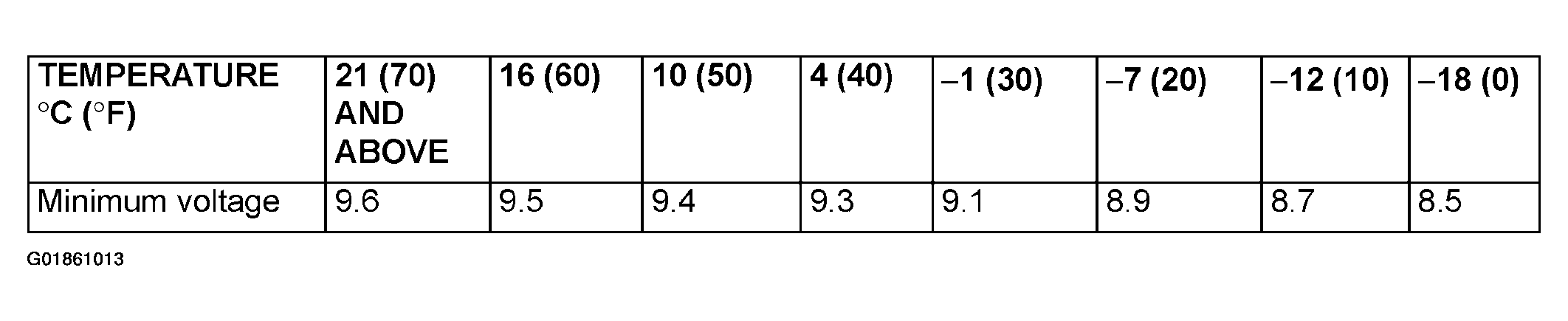

Fig 1: Battery Load Test Chart
G01861013Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
