Axle Shaft Assembly

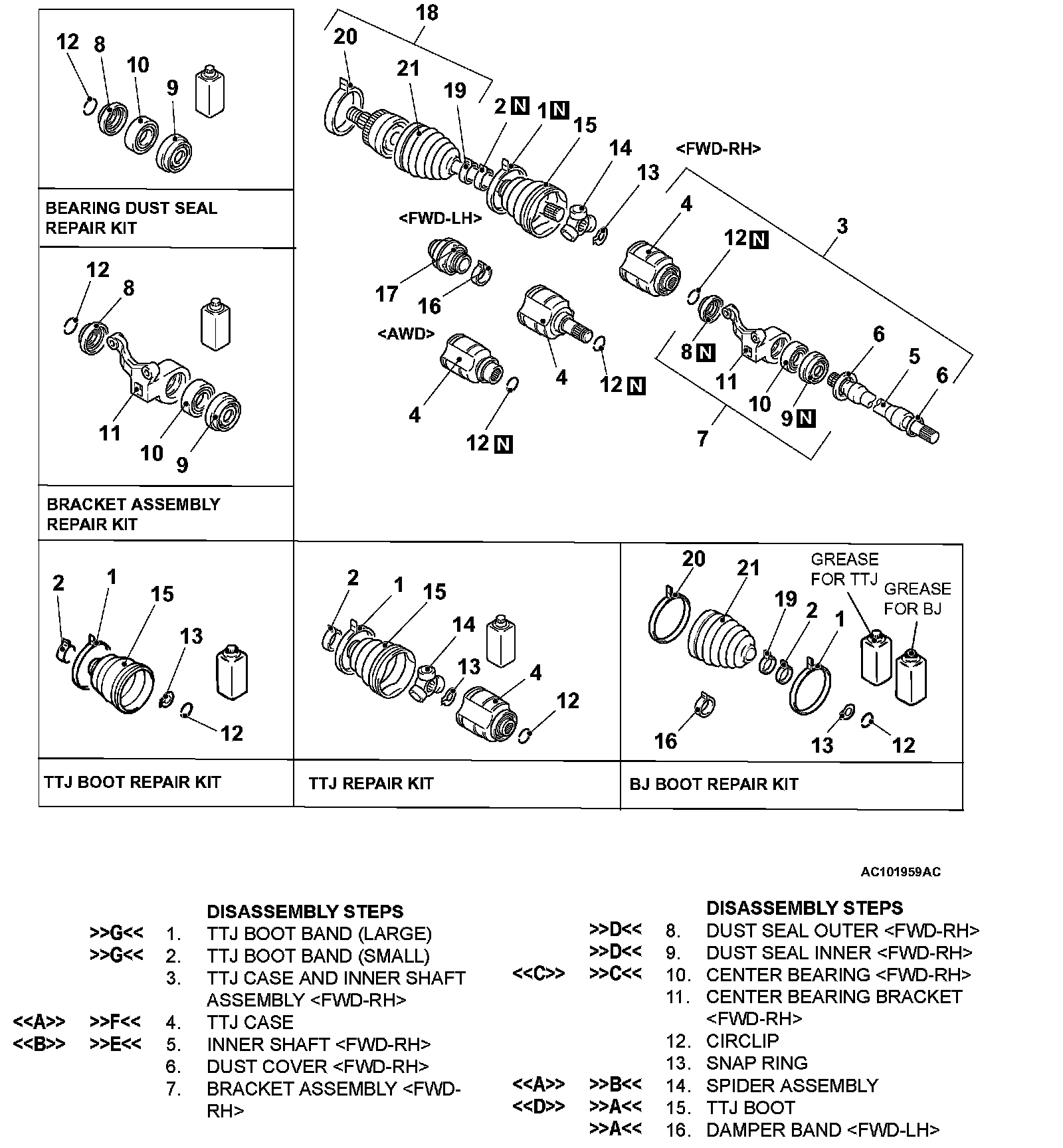

DRIVE SHAFT ASSEMBLY OVERHAUL W/ RELATED COMPONENTS


Part 1 Of 2:




Part 2 Of 2:
