Power Steering Pump
>>
Disassembly and Assembly
Disassembly and Assembly

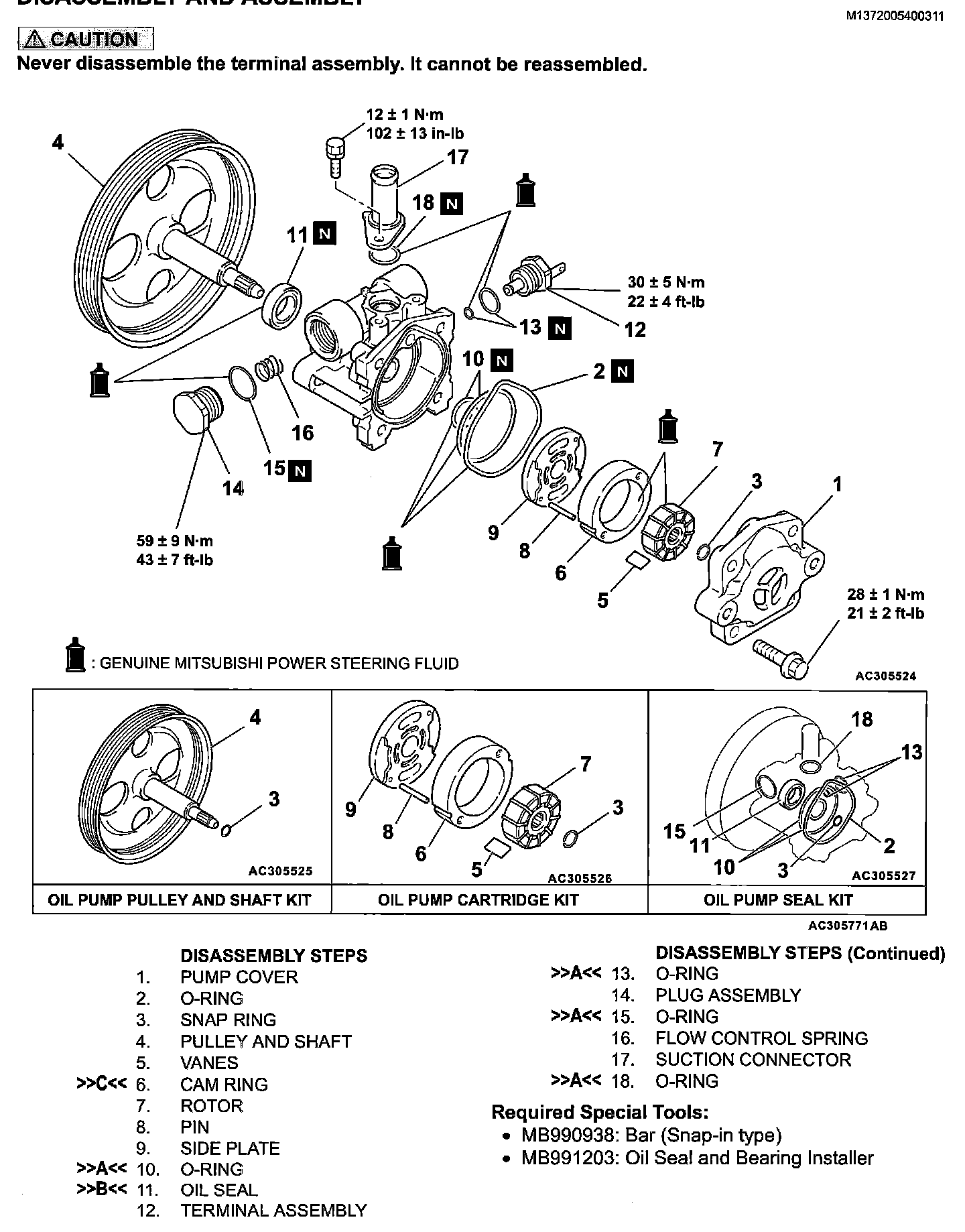

POWER STEERING OIL PUMP ASSEMBLY OVERHAUL W/ RELATED COMPONENTS
