Brake Master Cylinder

Part 1 Of 2:

Part 2 Of 2:

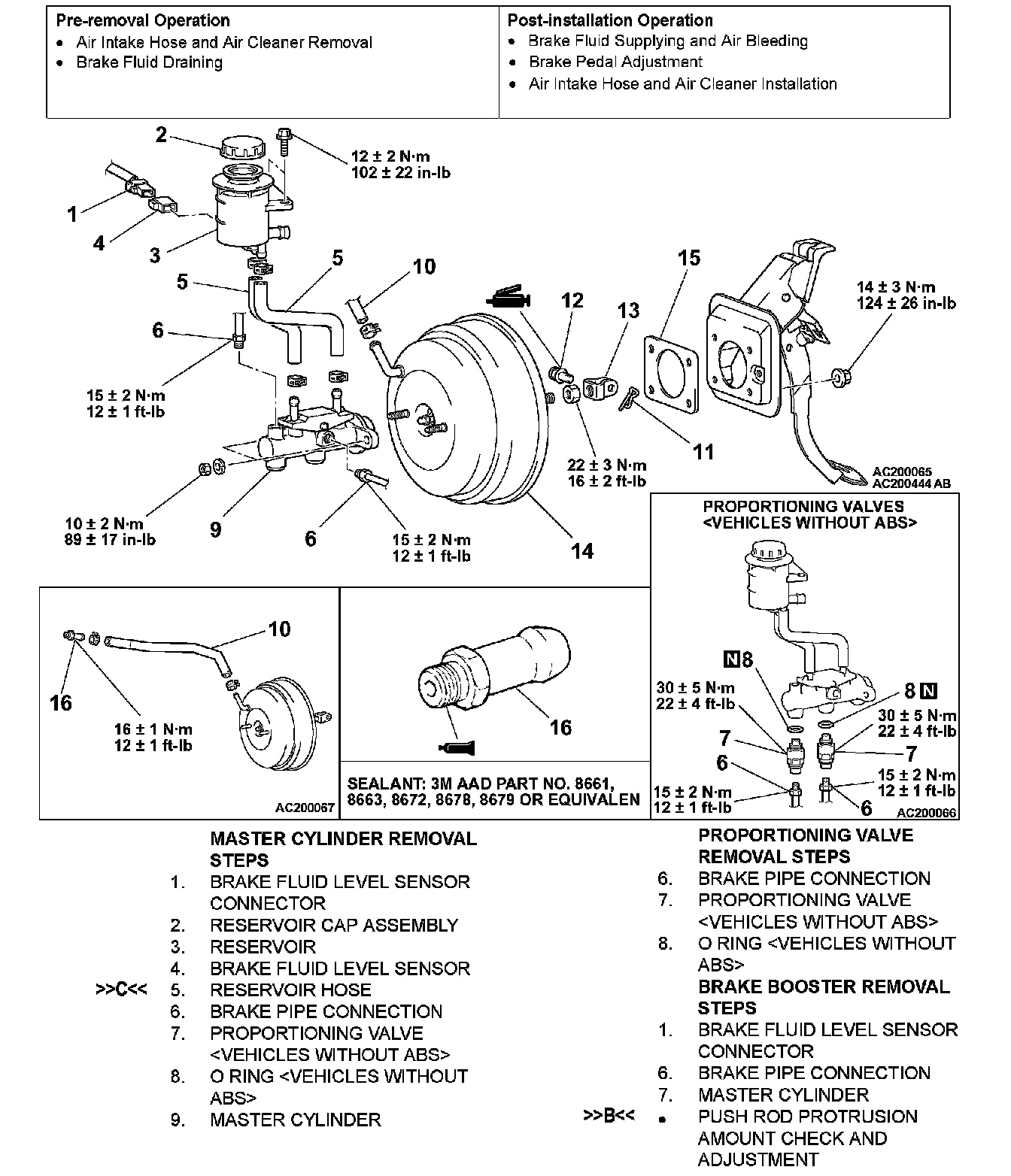

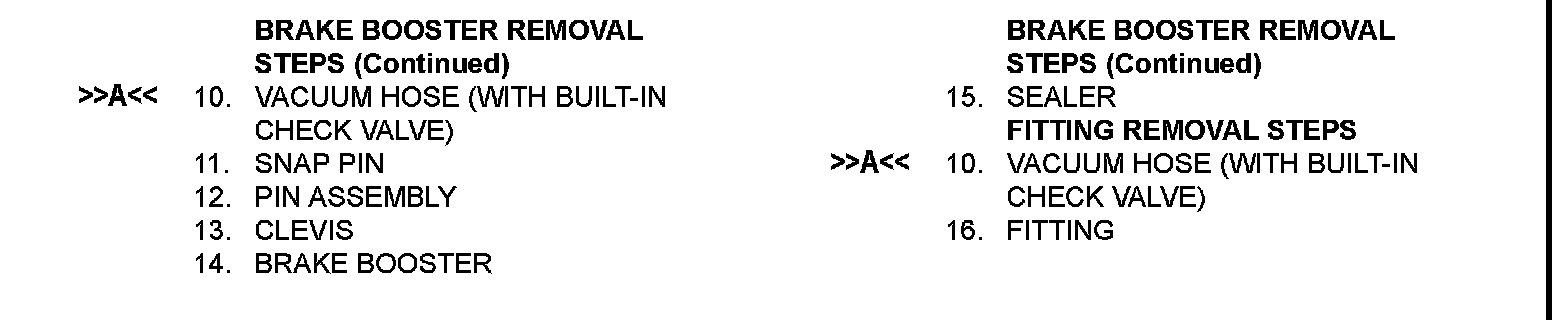

MASTER CYLINDER ASSEMBLY AND BRAKE BOOSTER REPLACEMENT W/ RELATED COMPONENTS

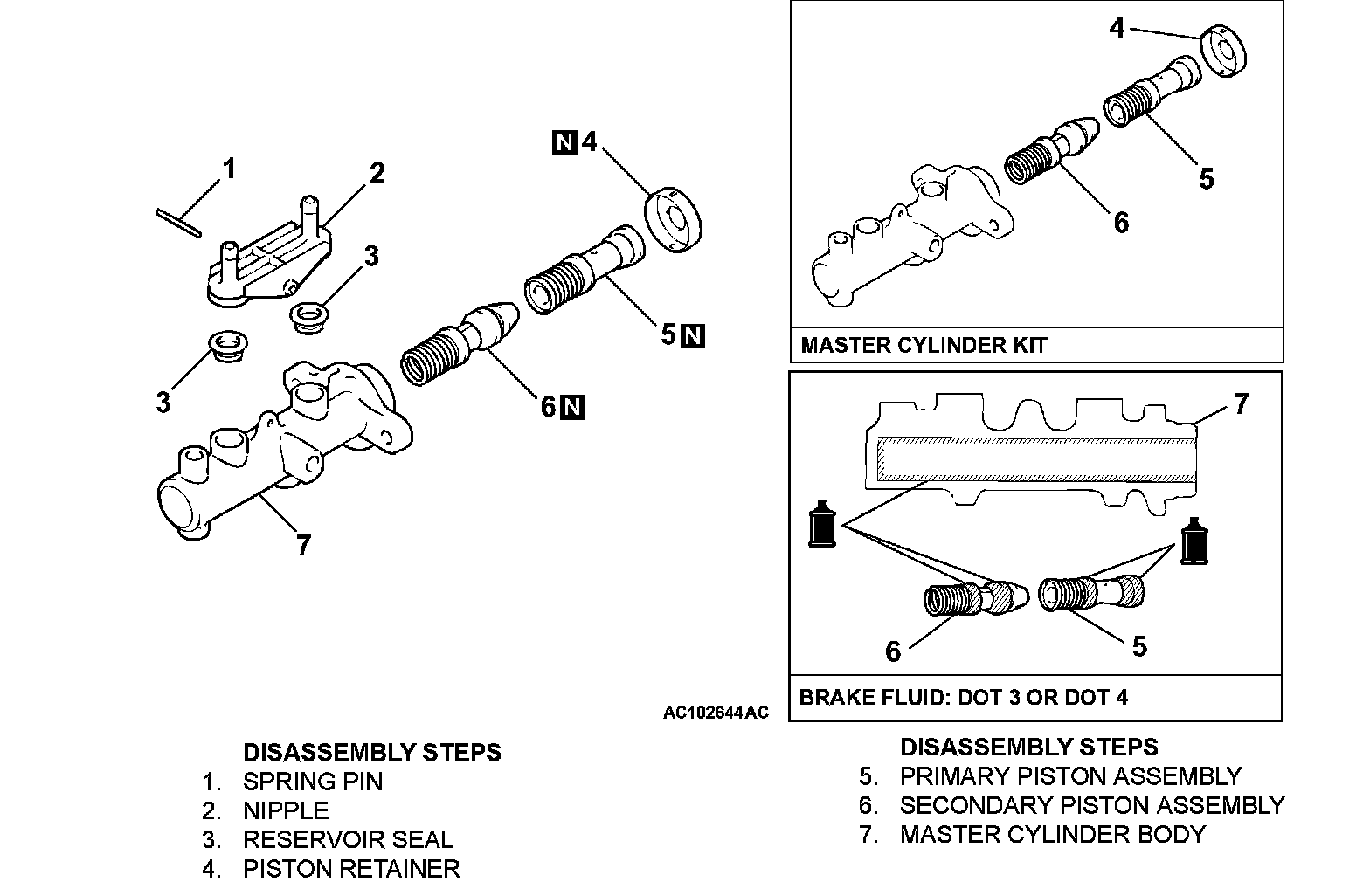

MASTER CYLINDER OVERHAUL W/ RELATED COMPONENTS
