Home >> Mitsubishi >> 2003 >> Outlander AWD L4-2.4L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Body and Frame >> Front Door

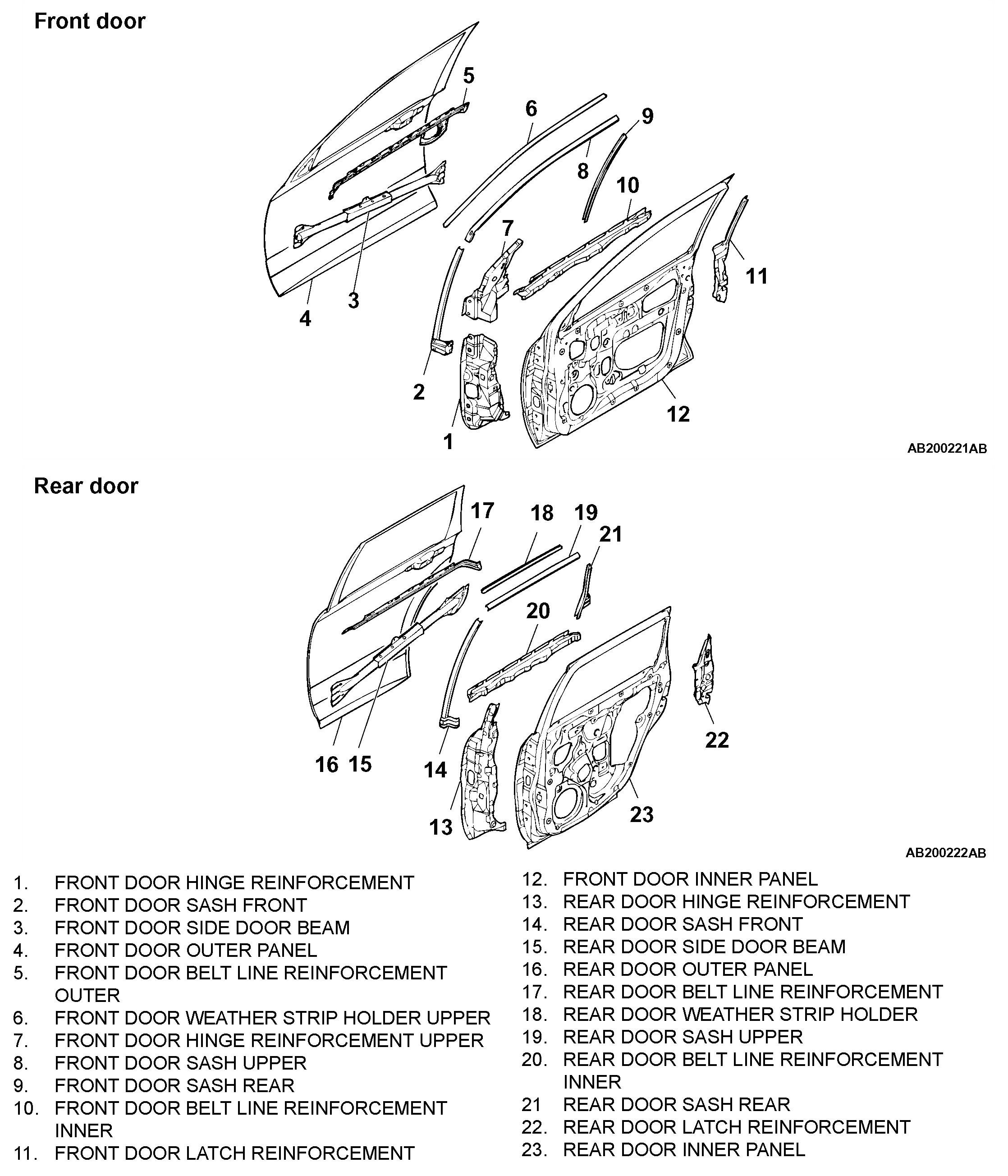

Front Door

DOOR




A one-piece top-bottom pressed door structure was employed for the door outer panel and door inner panel to improve door panel rigidity.
