Home >> Mitsubishi >> 2003 >> Montero V6-3.8L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Camshaft, Engine

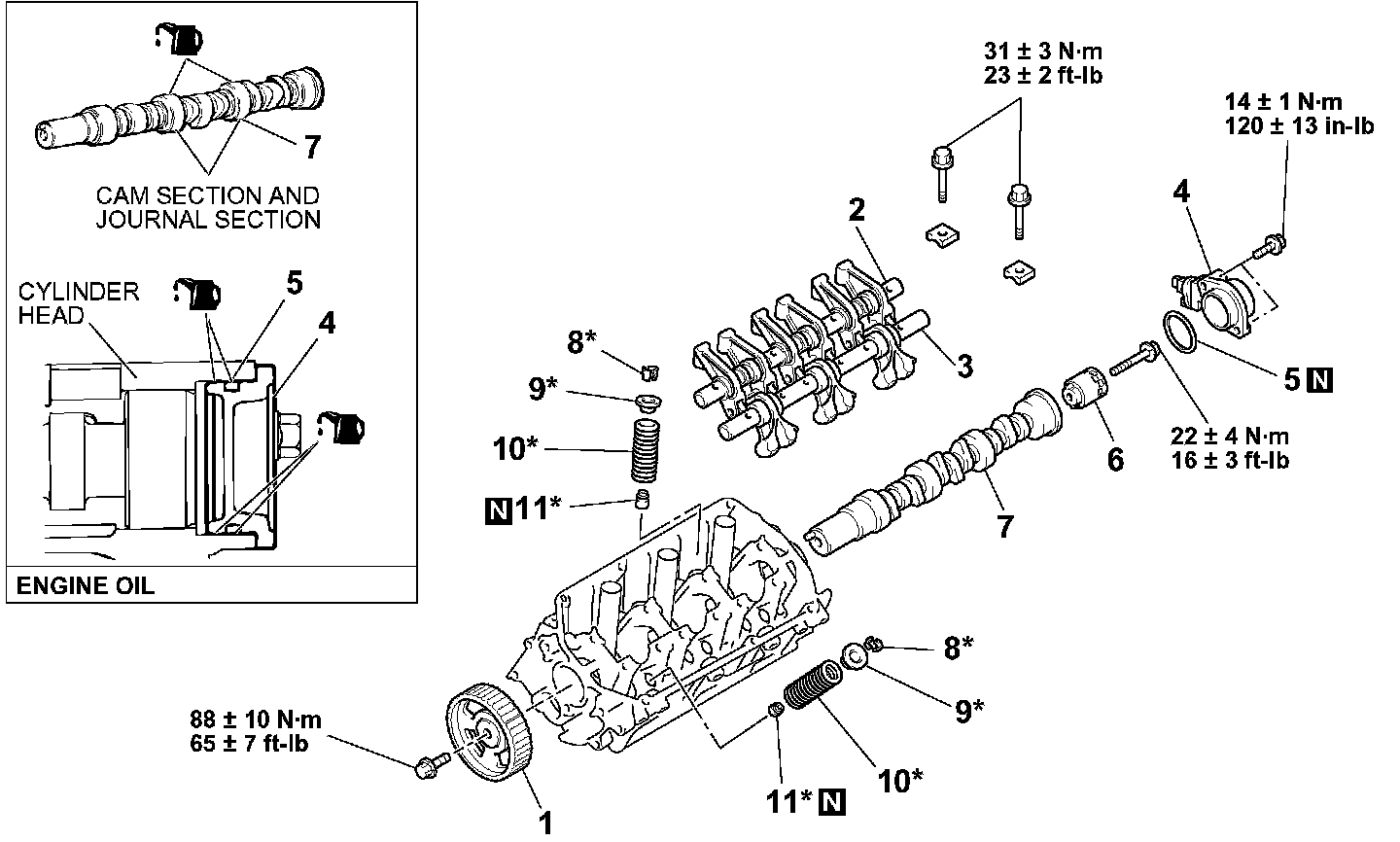

Camshaft, Engine

Part 1 Of 2:




Part 2 Of 2:

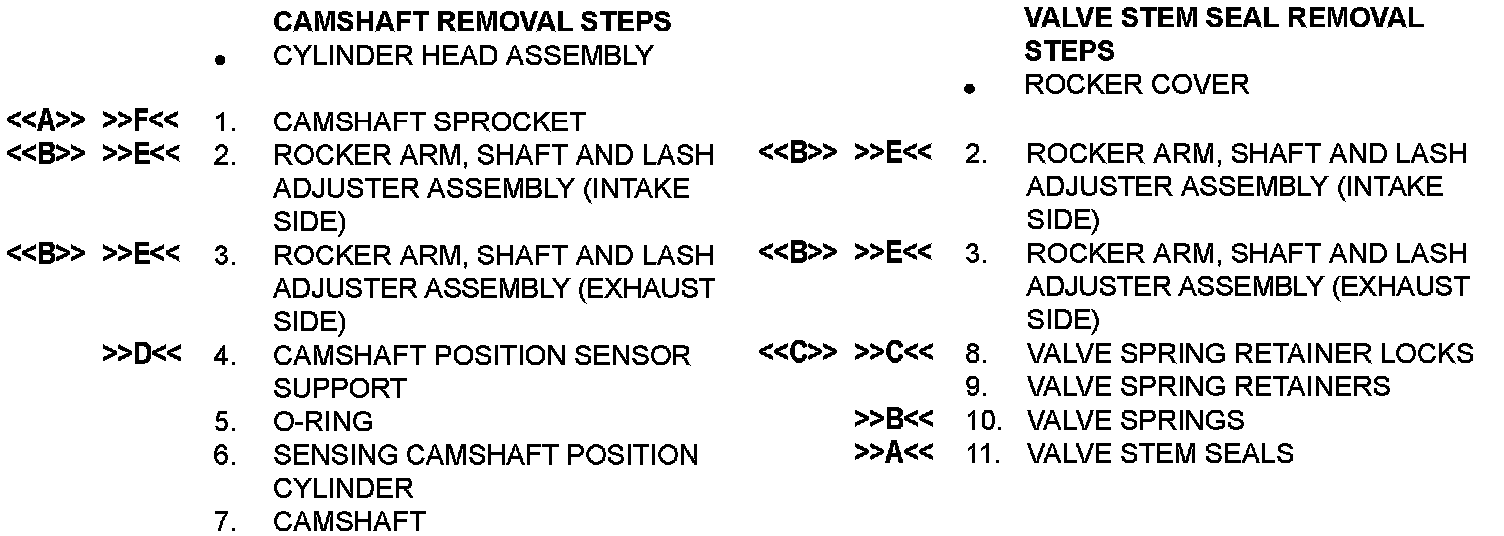

CAMSHAFT AND VALVE STEM SEAL REPLACEMENT W/ RELATED COMPONENTS
