REAR DISC BRAKE ASSEMBLY REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS

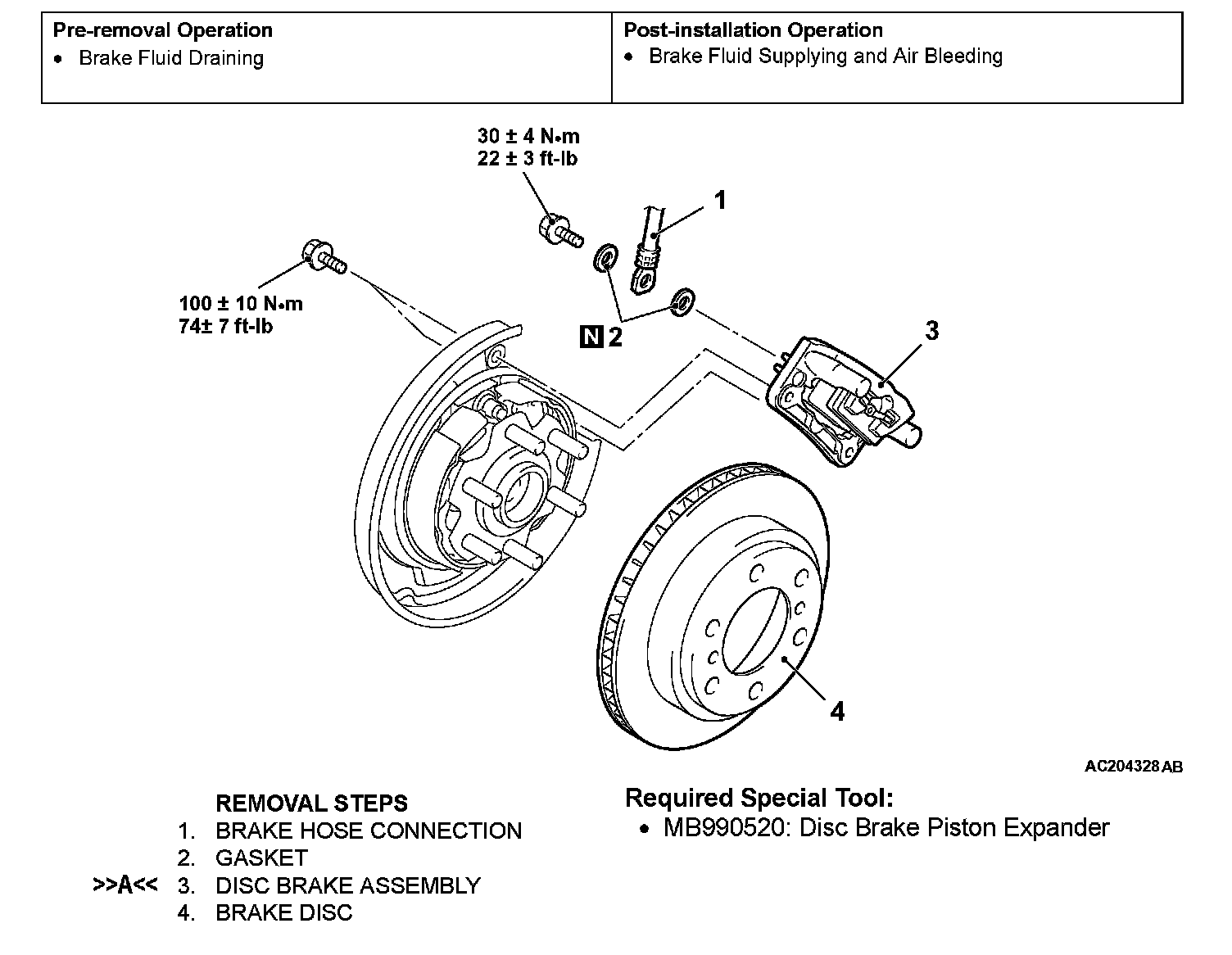

REMOVAL AND INSTALLATION

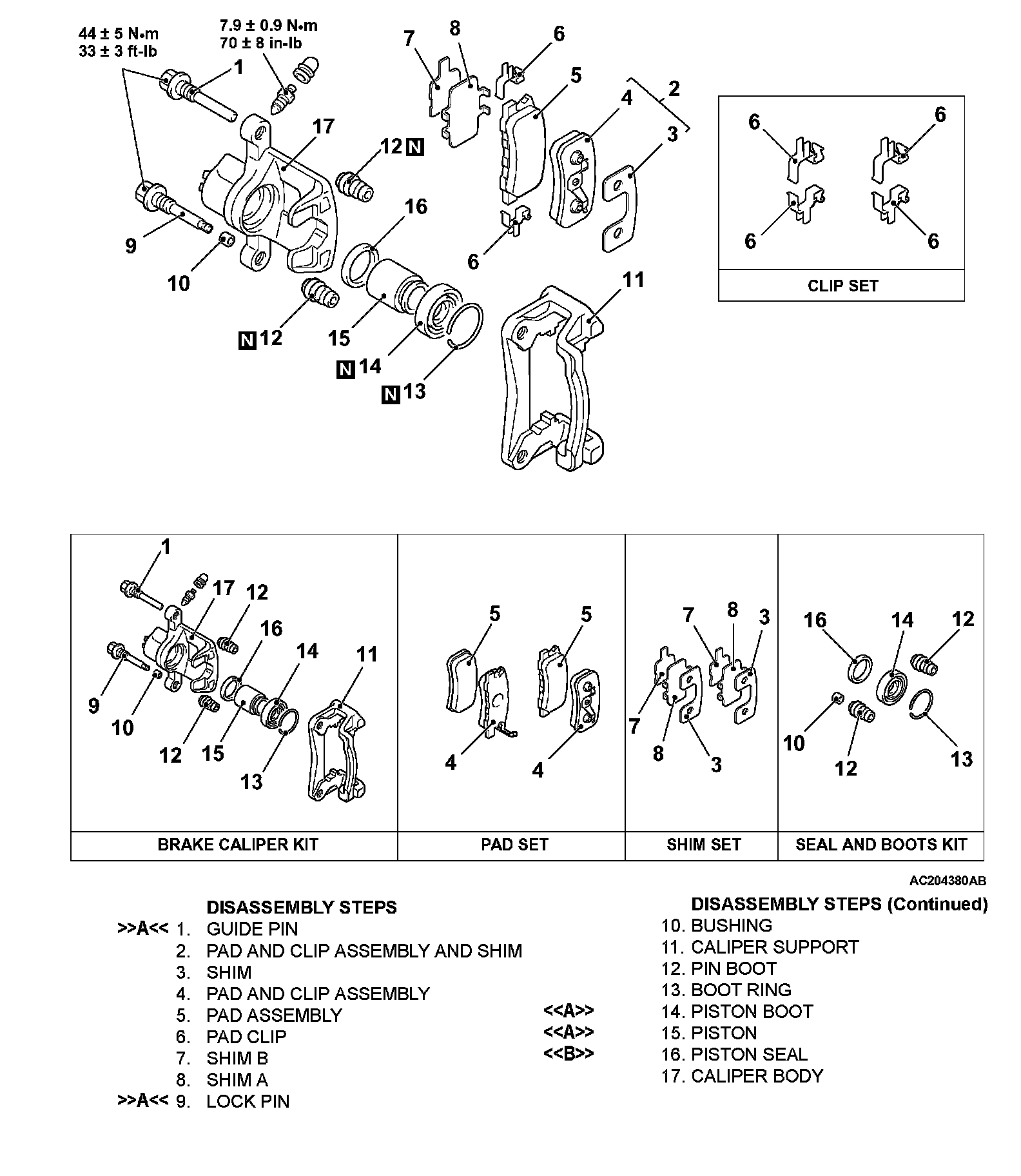

DISASSEMBLY AND ASSEMBLY
