Door Mirror Control Switch Continuity Check

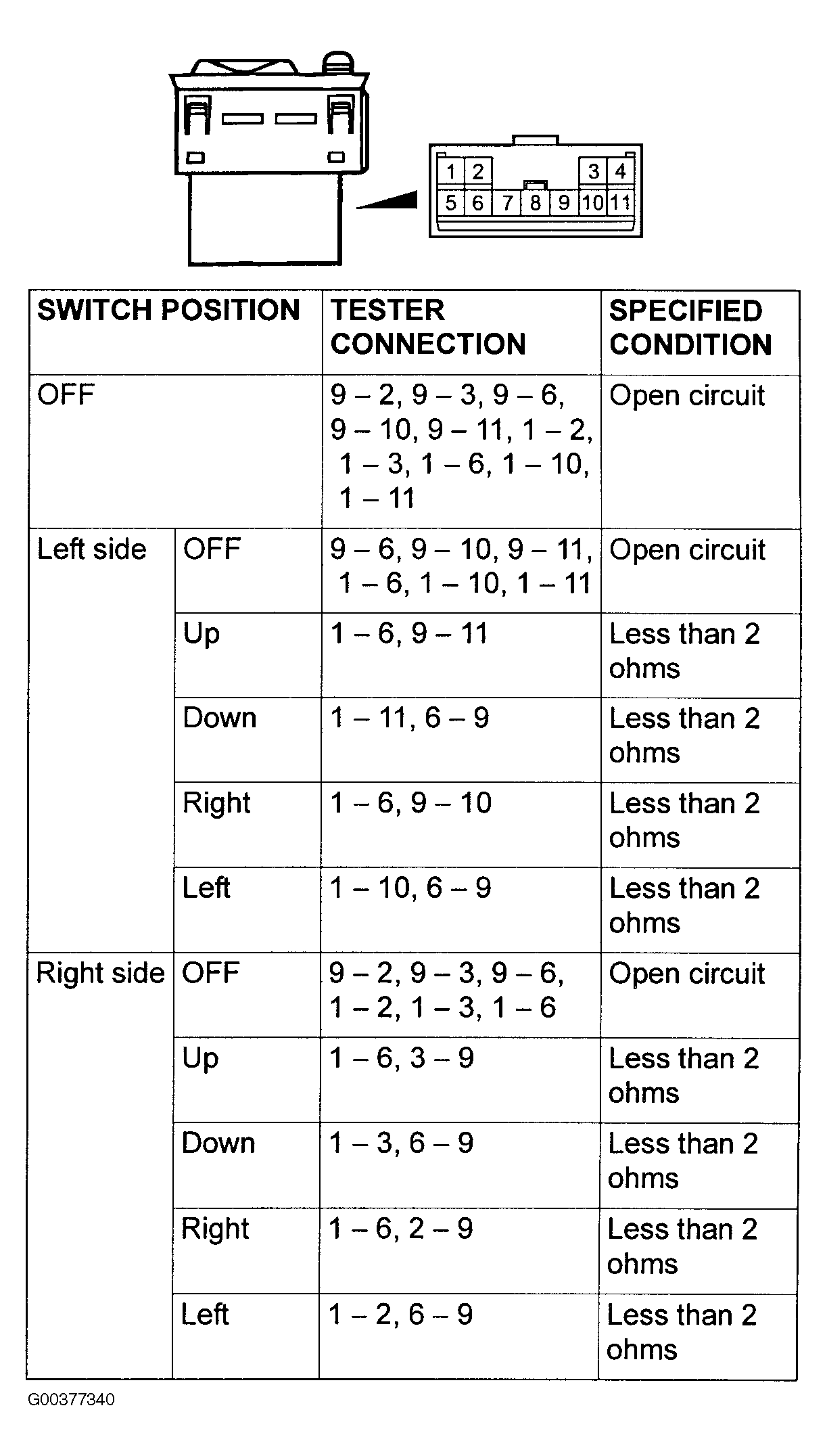

Fig 1: Checking Door Mirror Control Switch Continuity

G00377340

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
