Lancer L4-2.0L SOHC
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Heating and Air Conditioning
>>
Heater Core
Heater Core

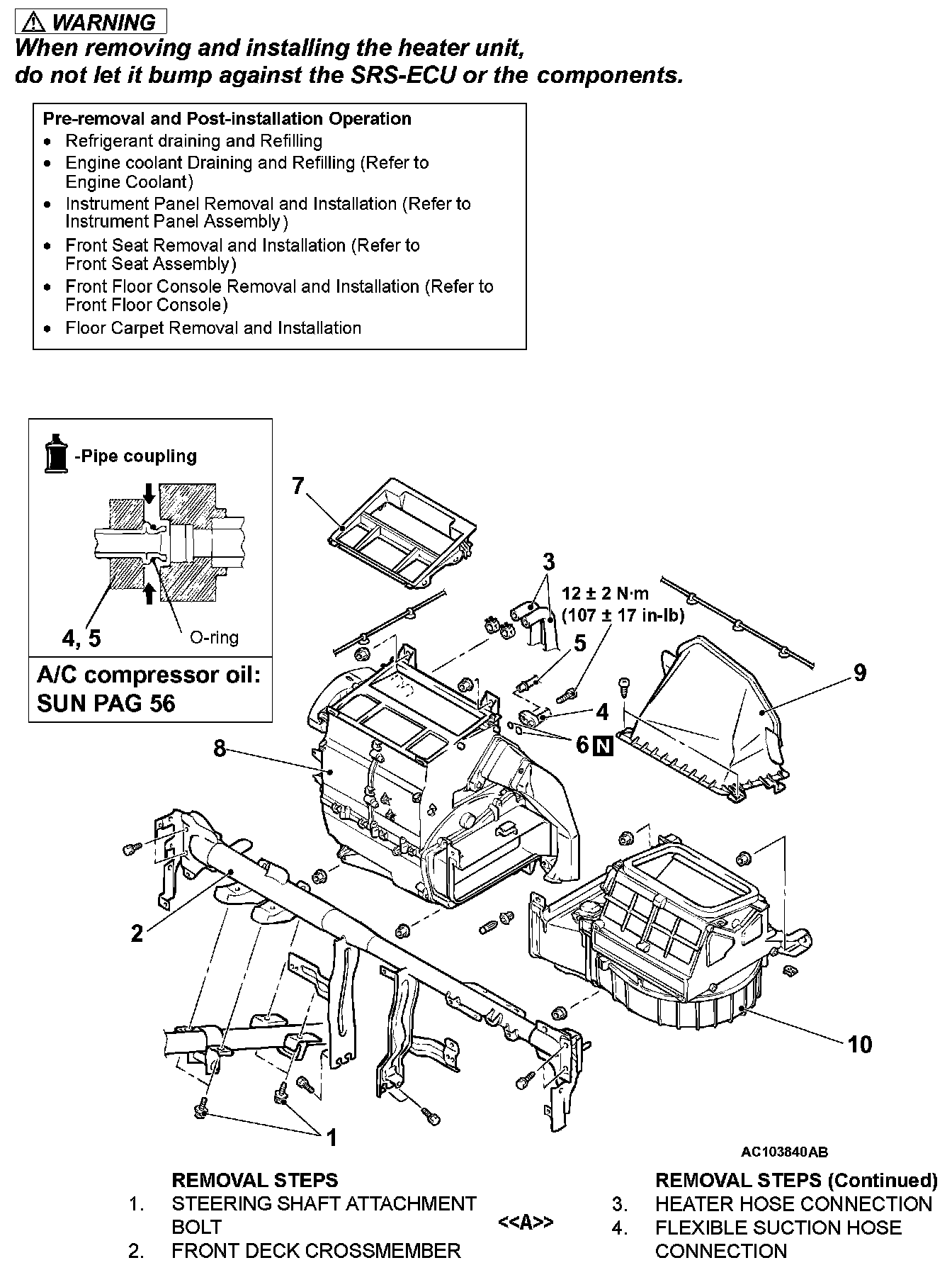

HEATER UNIT / Removal And Installation:

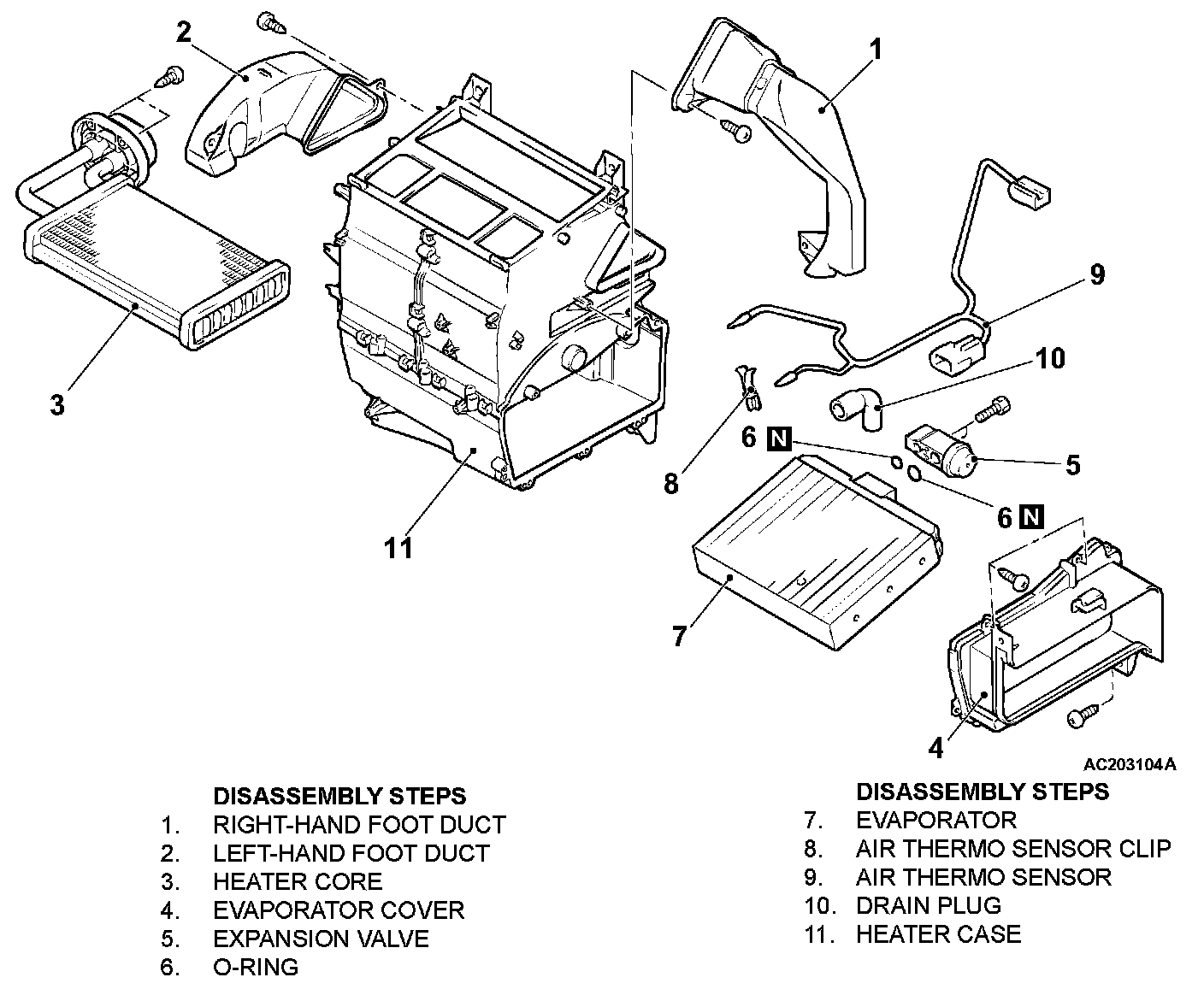

HEATER UNIT / Disassembly And Assembly:
