Fuse: Locations

Overall View:

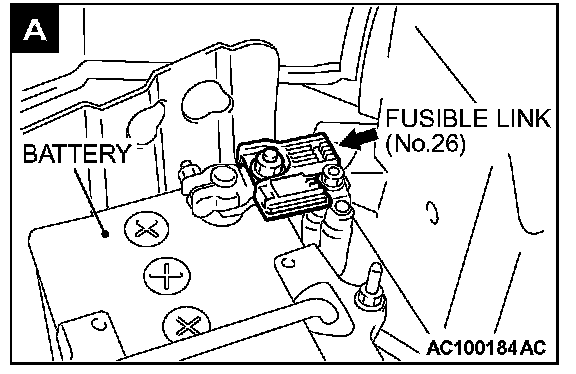

View A:

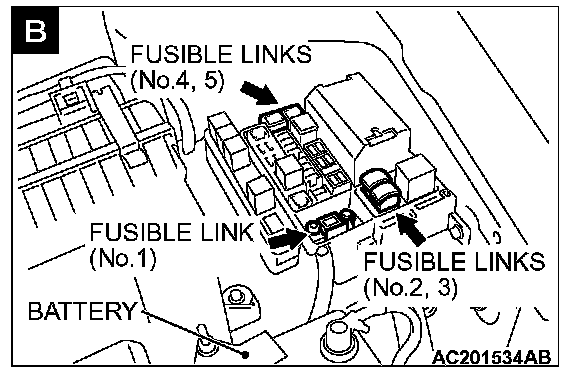

View B:

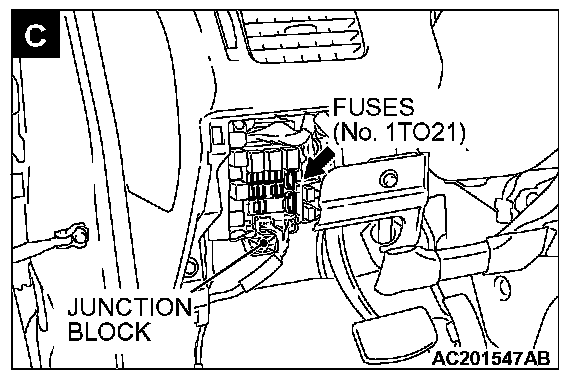

View C:

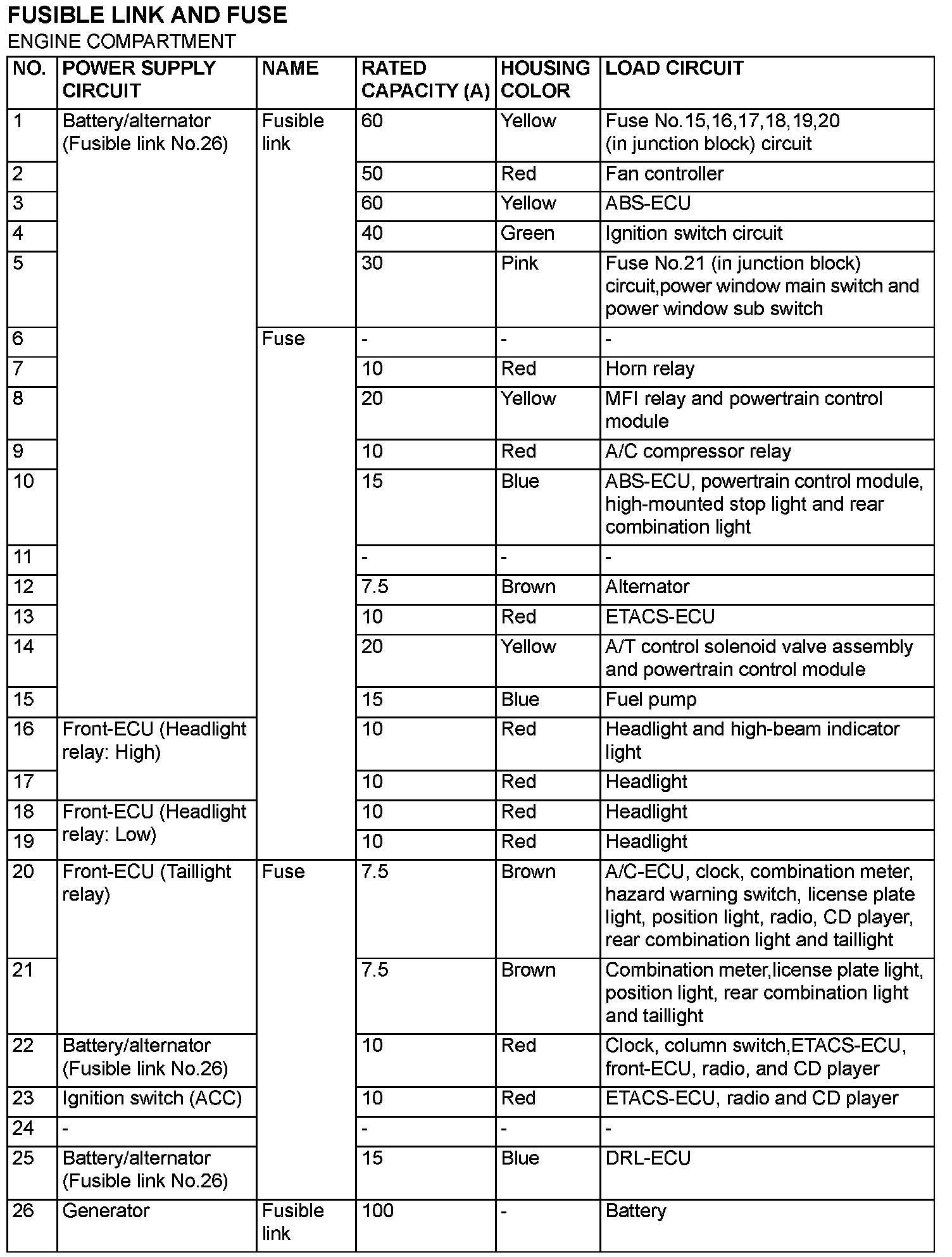

Application Table:

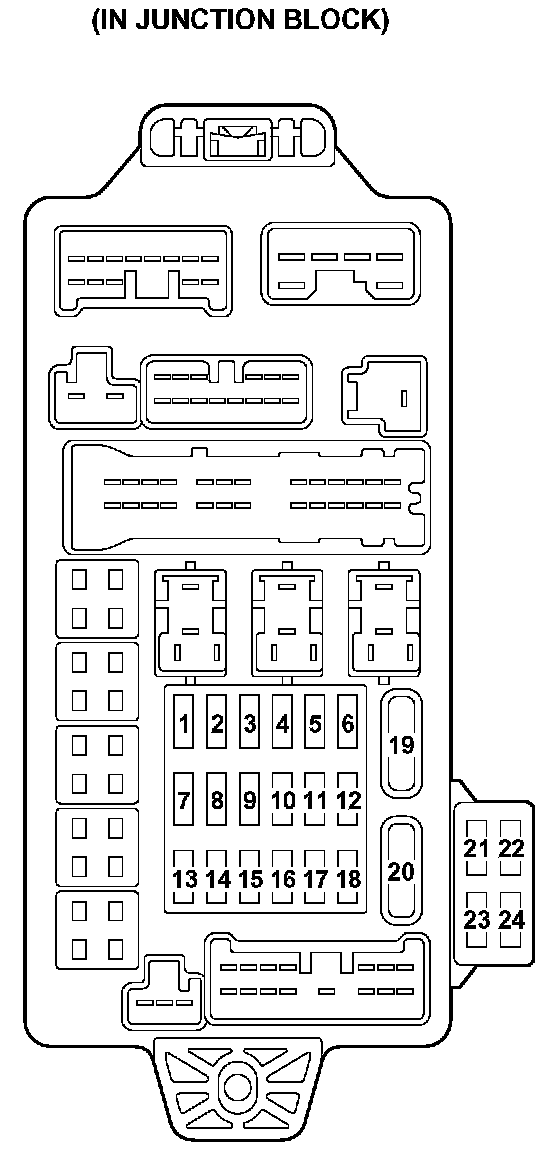

Location View:

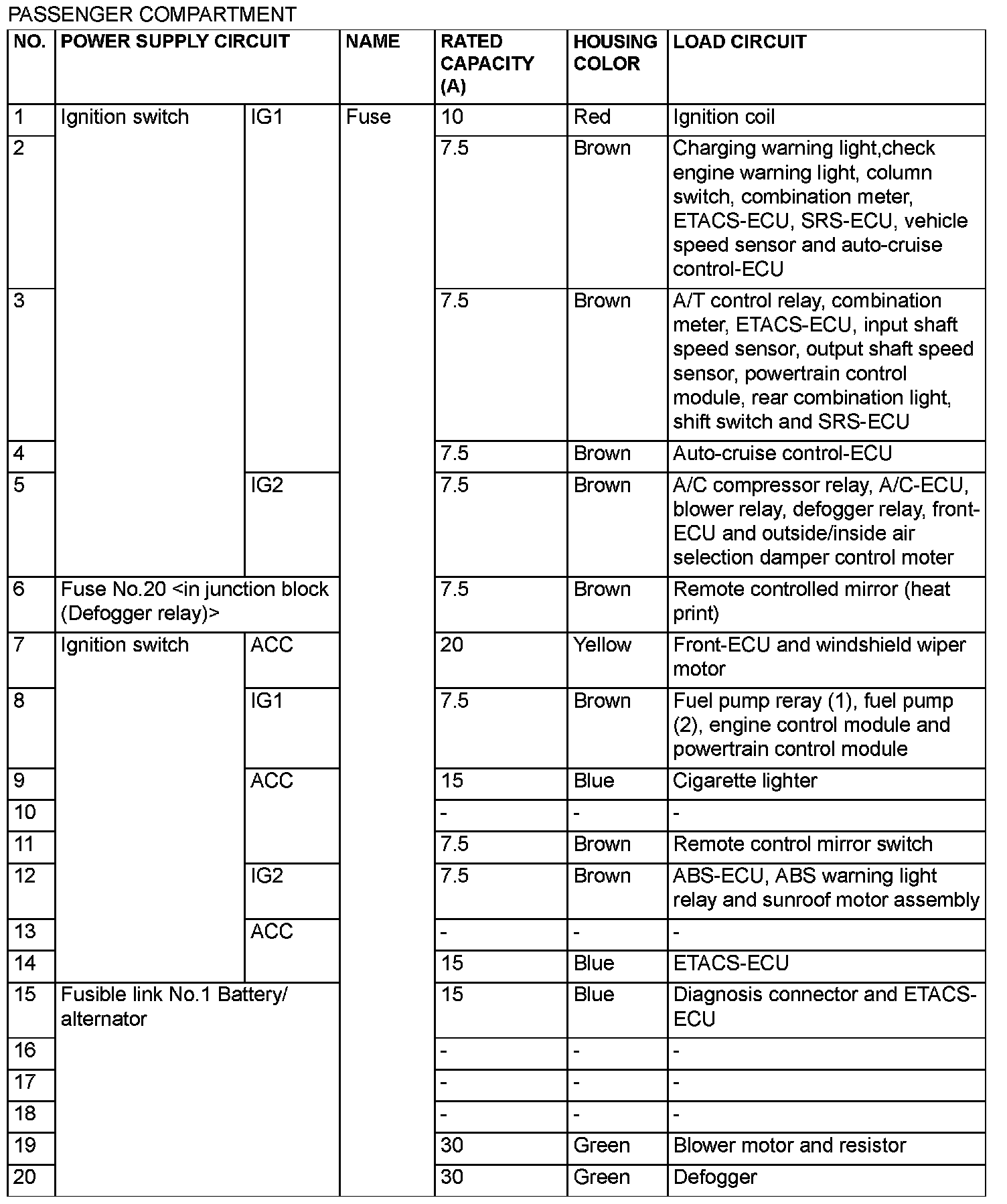

Application Table Part 1:

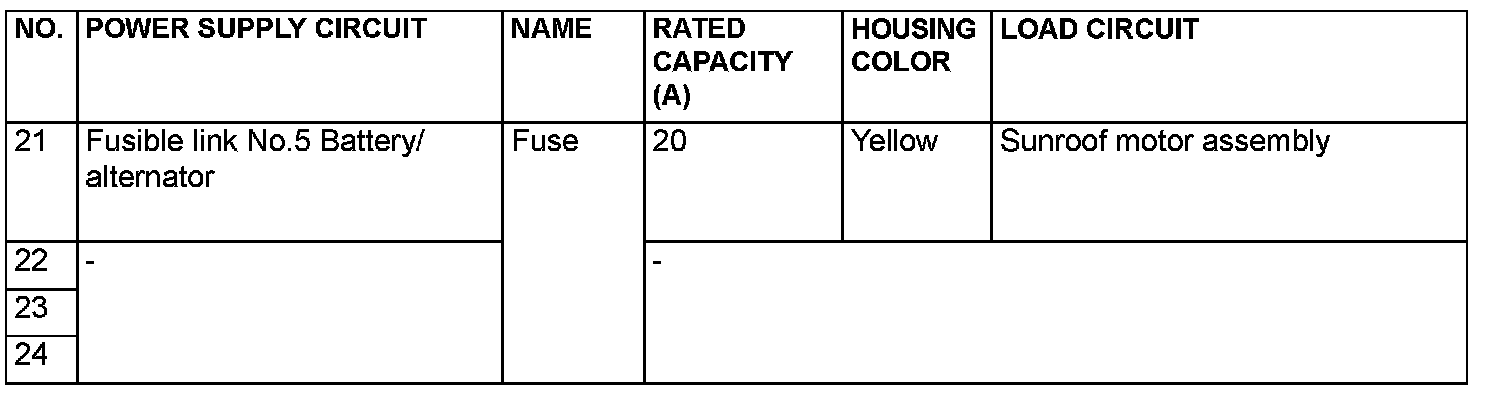

Application Table Part 2:

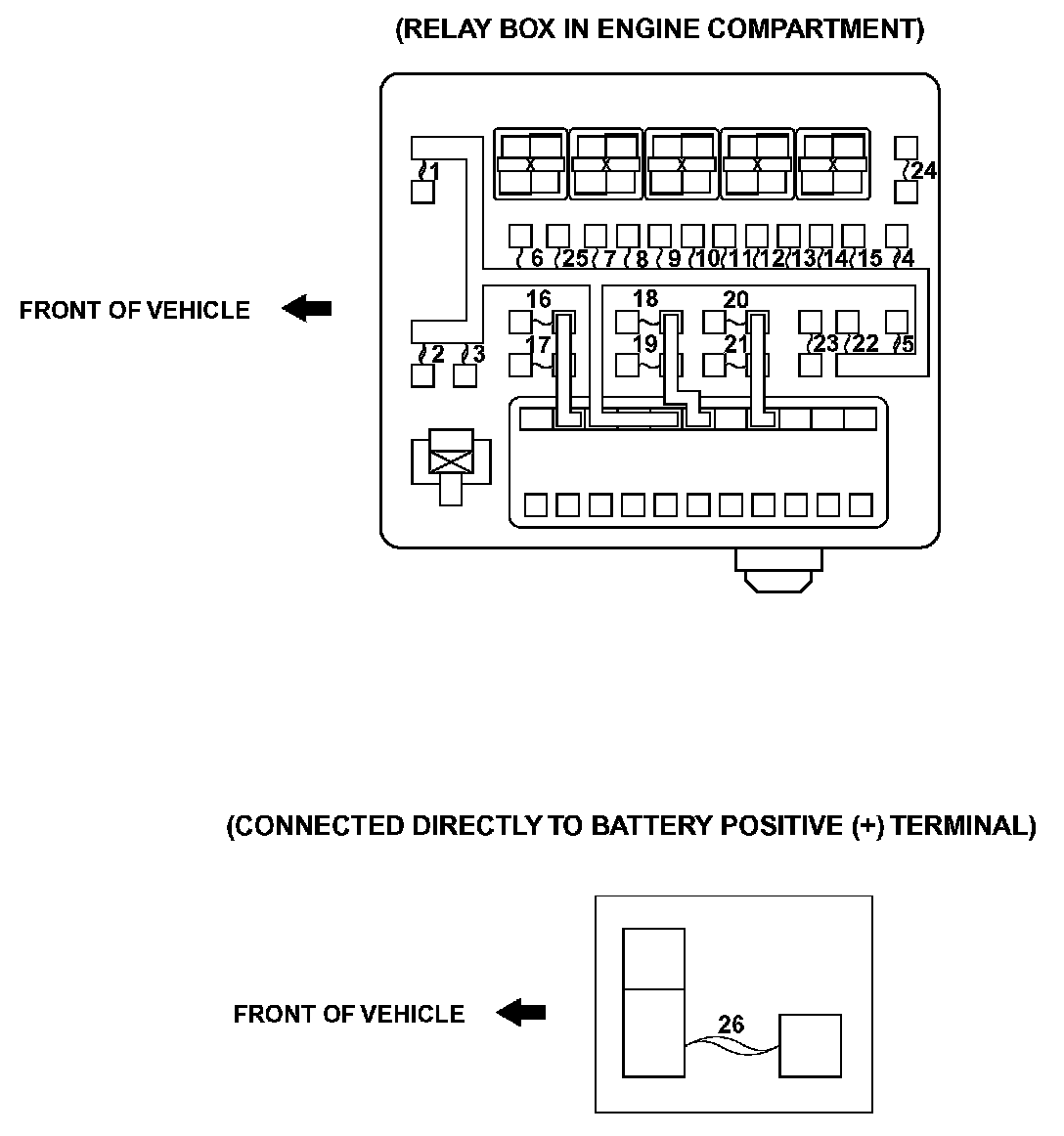

Location View:
