Home >> Mitsubishi >> 2003 >> Lancer L4-2.0L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Power Steering Line/Hose

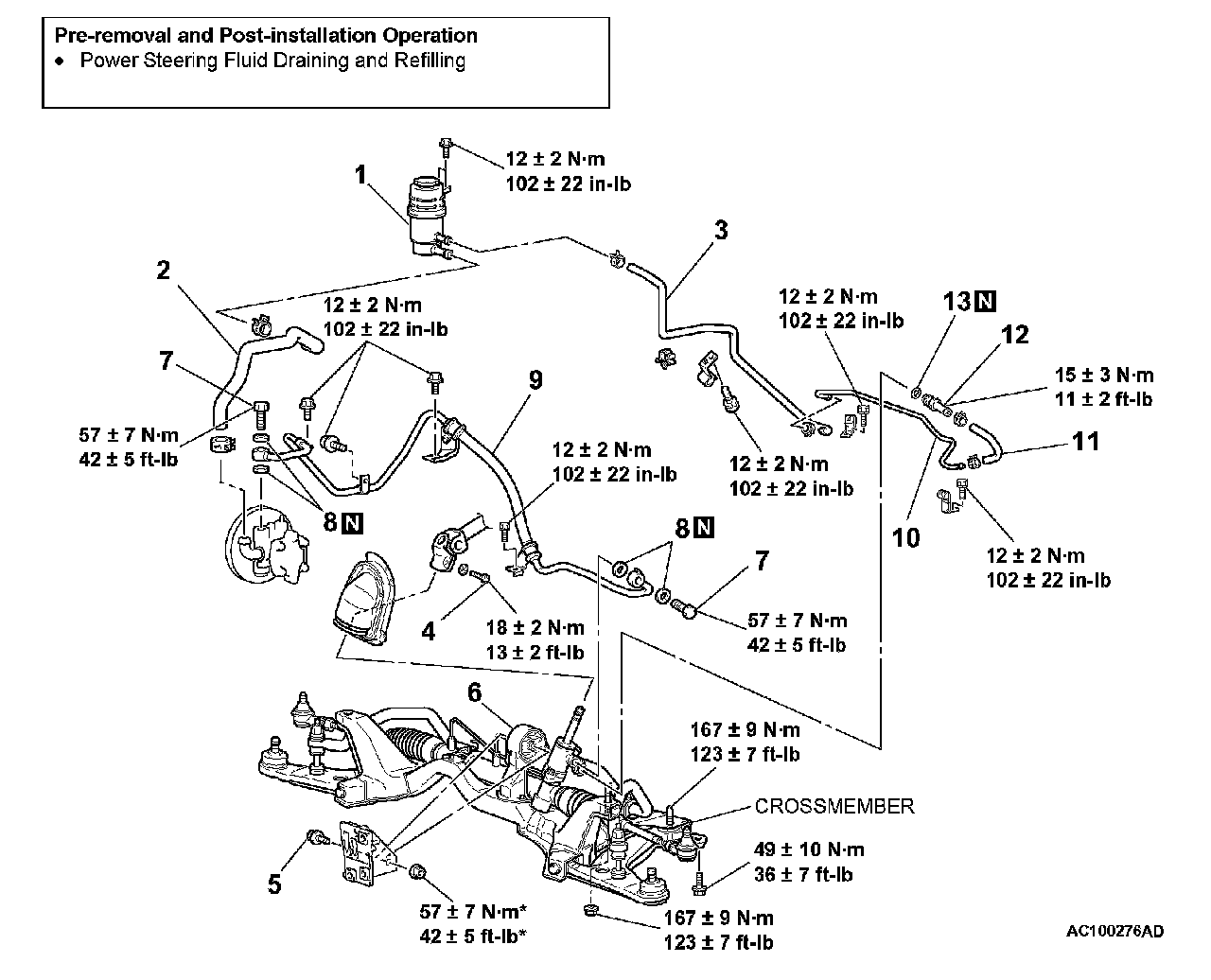

Power Steering Line/Hose

Part 1 Of 2:




Part 2 Of 2:
