Removal and Installation

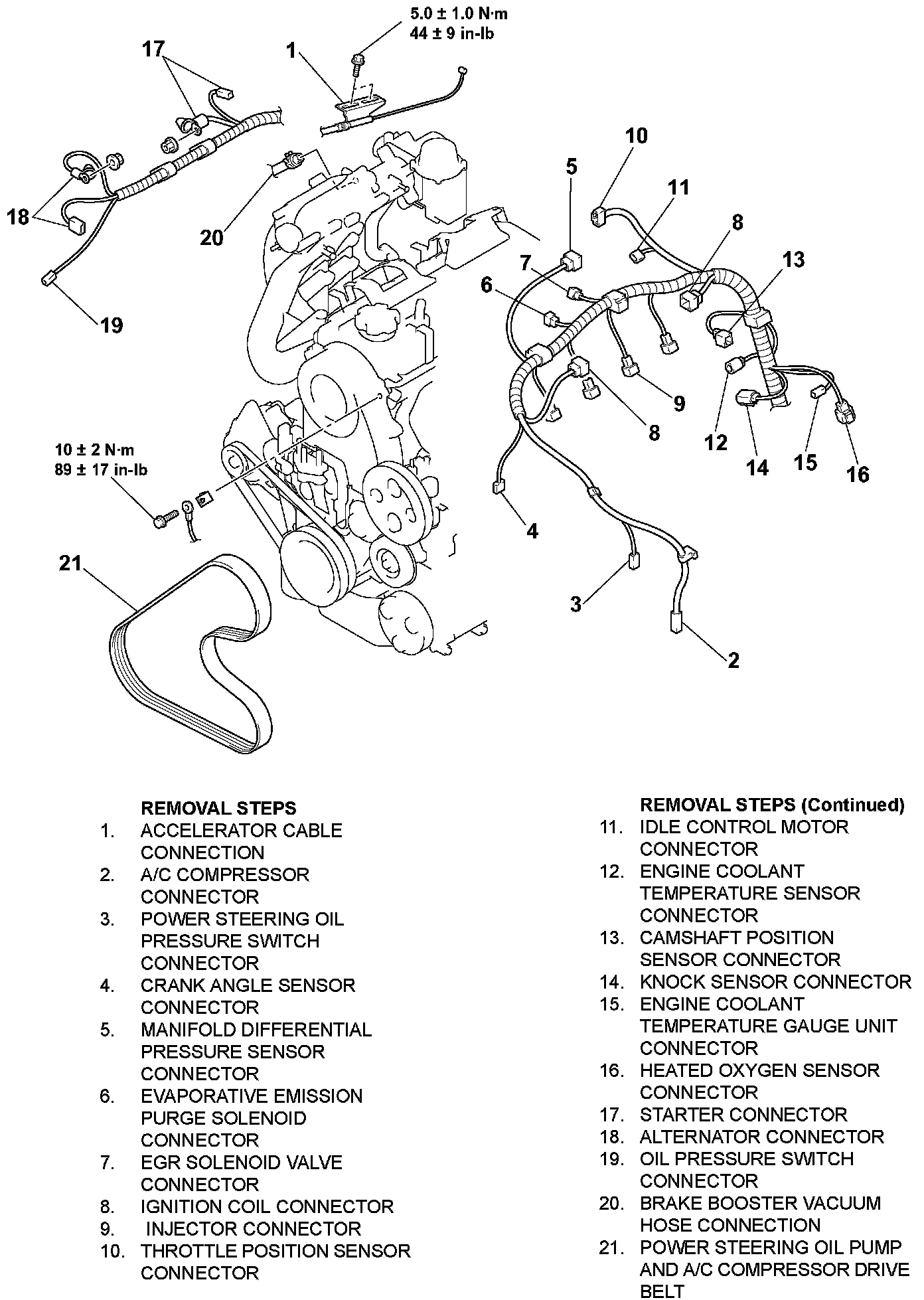

Part 1 Of 3:

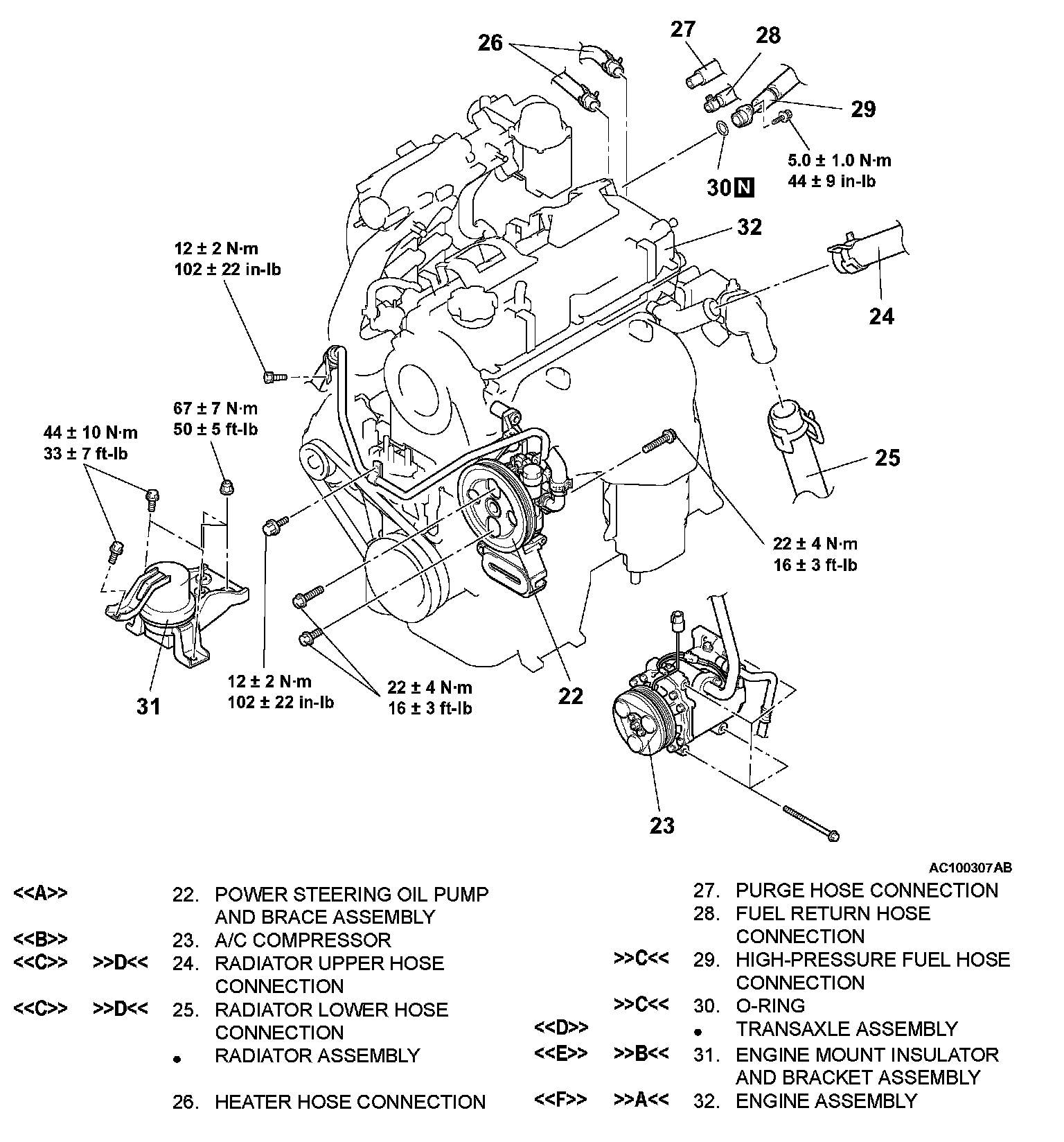

Part 2 Of 3:




Part 3 Of 3:





ENGINE ASSEMBLY REPLACEMENT W/ RELATED COMPONENTS
