Cylinder Head Assembly

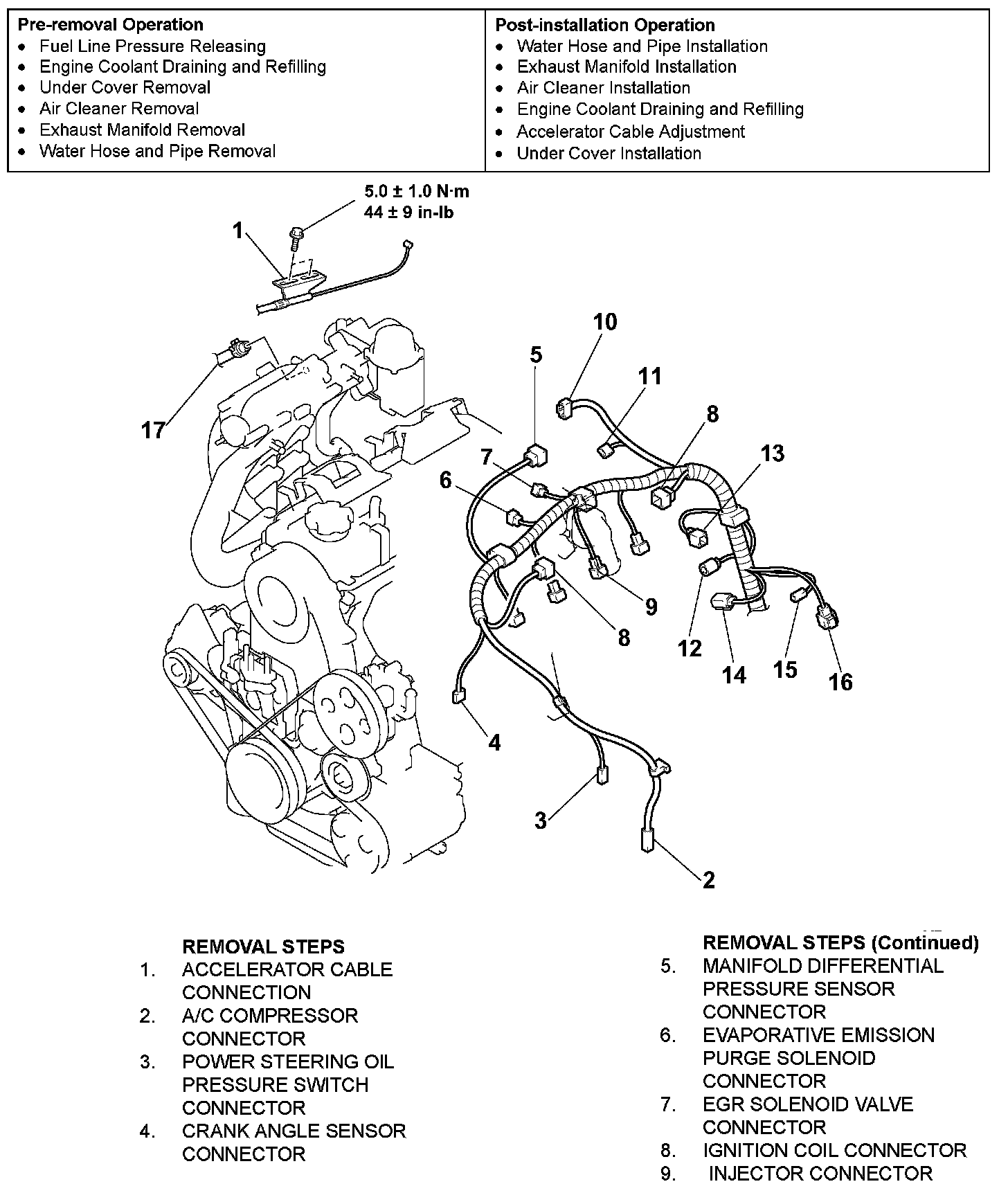

Part 1 Of 4:

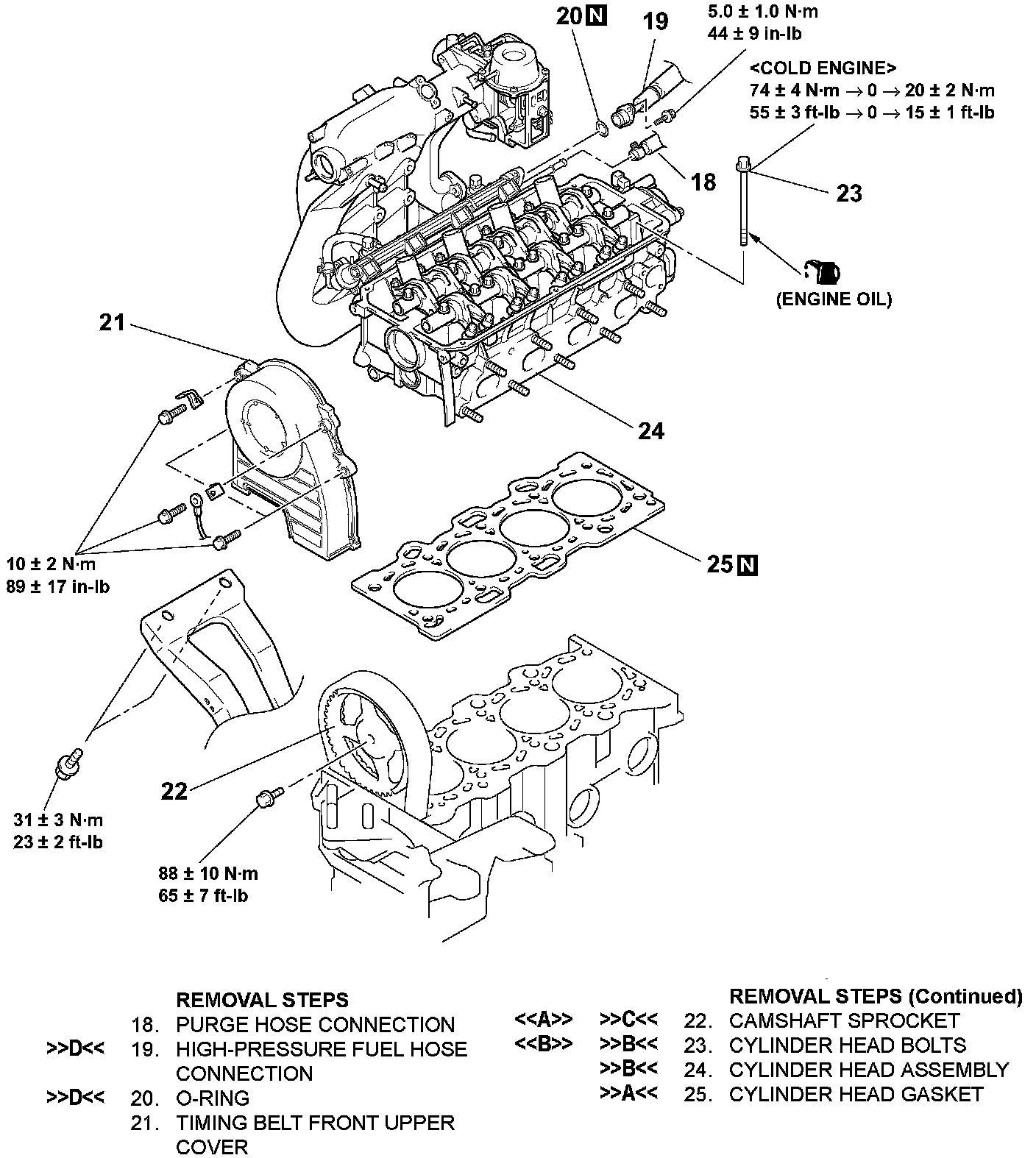

Part 2 Of 4:




Part 3 Of 4:




Part 4 Of 4:





CYLINDER HEAD GASKET REPLACEMENT W/ RELATED COMPONENTS
