Home >> Mitsubishi >> 2003 >> Lancer L4-2.0L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Camshaft, Engine

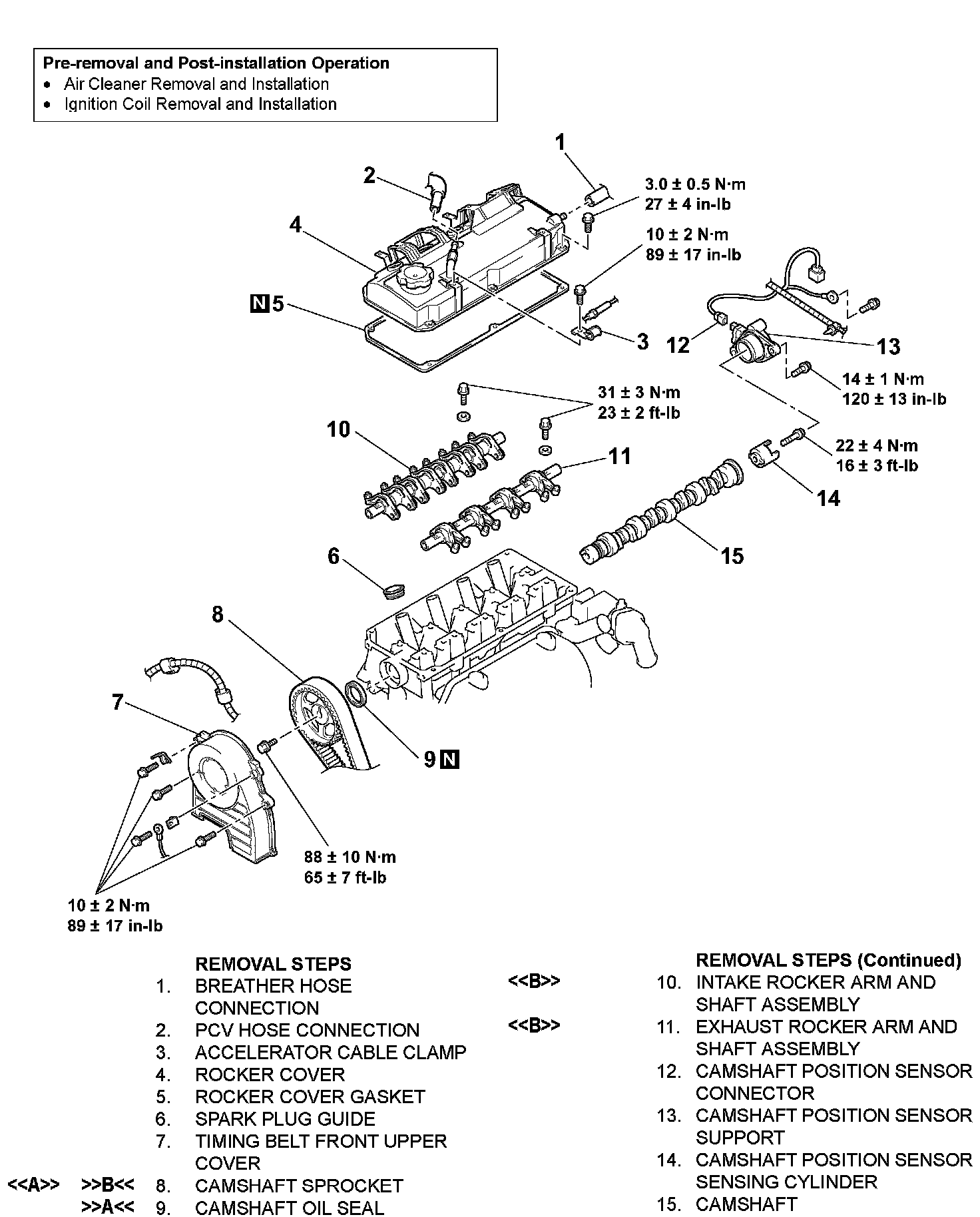

Camshaft, Engine

Part 1 Of 2:




Part 2 Of 2:





CAMSHAFT AND CAMSHAFT OIL SEAL REPLACEMENT W/ RELATED COMPONENTS
