Disassembly and Assembly

Part 1 Of 2:




Part 2 Of 2:

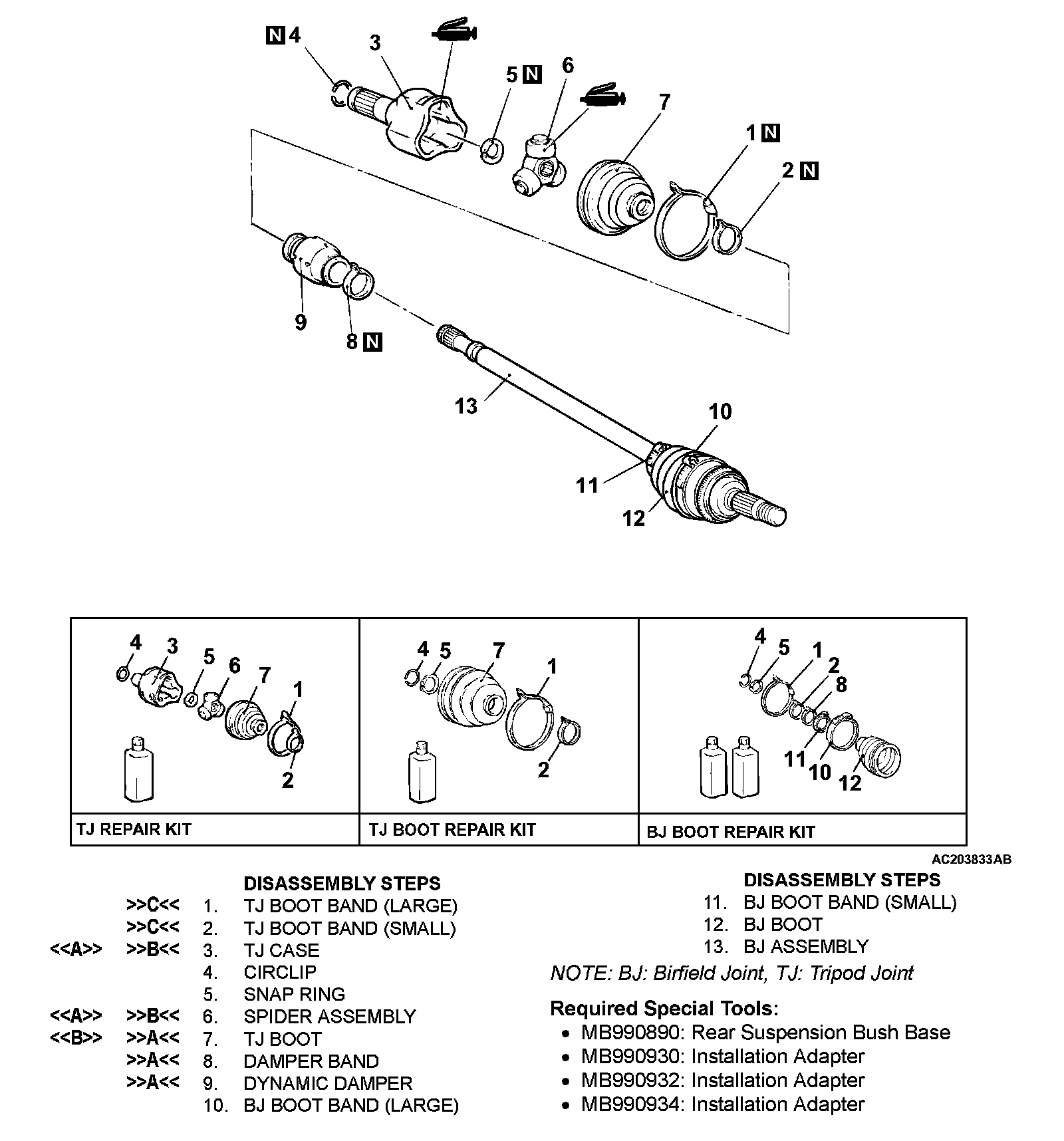

DRIVE SHAFT ASSEMBLY OVERHAUL W/ RELATED COMPONENTS
