Disassembly (Magnetic Switch)

CAUTION: Do not clamp the yoke assembly with a vise.
NOTE: Disconnect the lead from the "M" terminal of the magnetic switch. See Fig 1 .

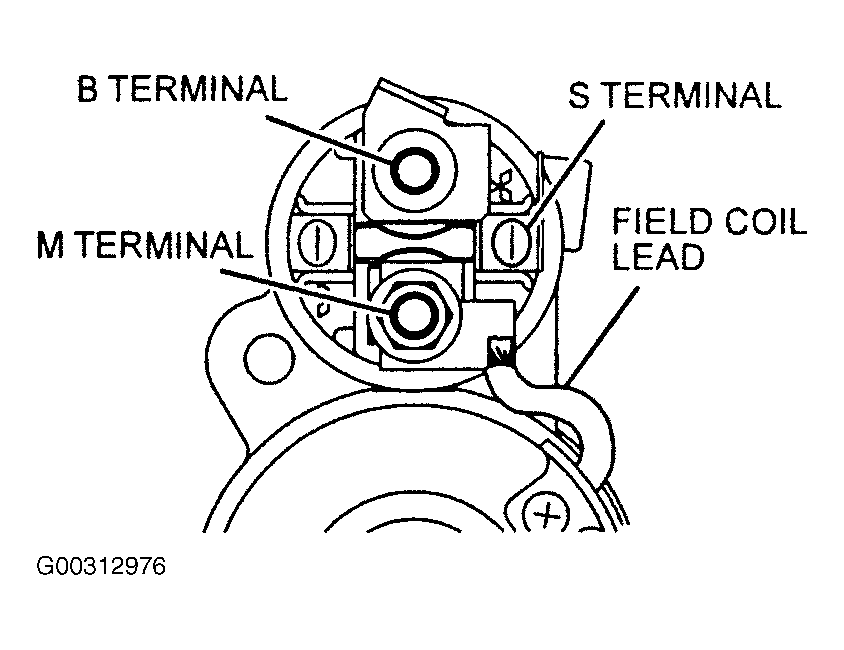

Fig 1: Removing Magnetic Switch
G00312976Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
