Knock Sensor: Service and Repair

Knock Sensor:

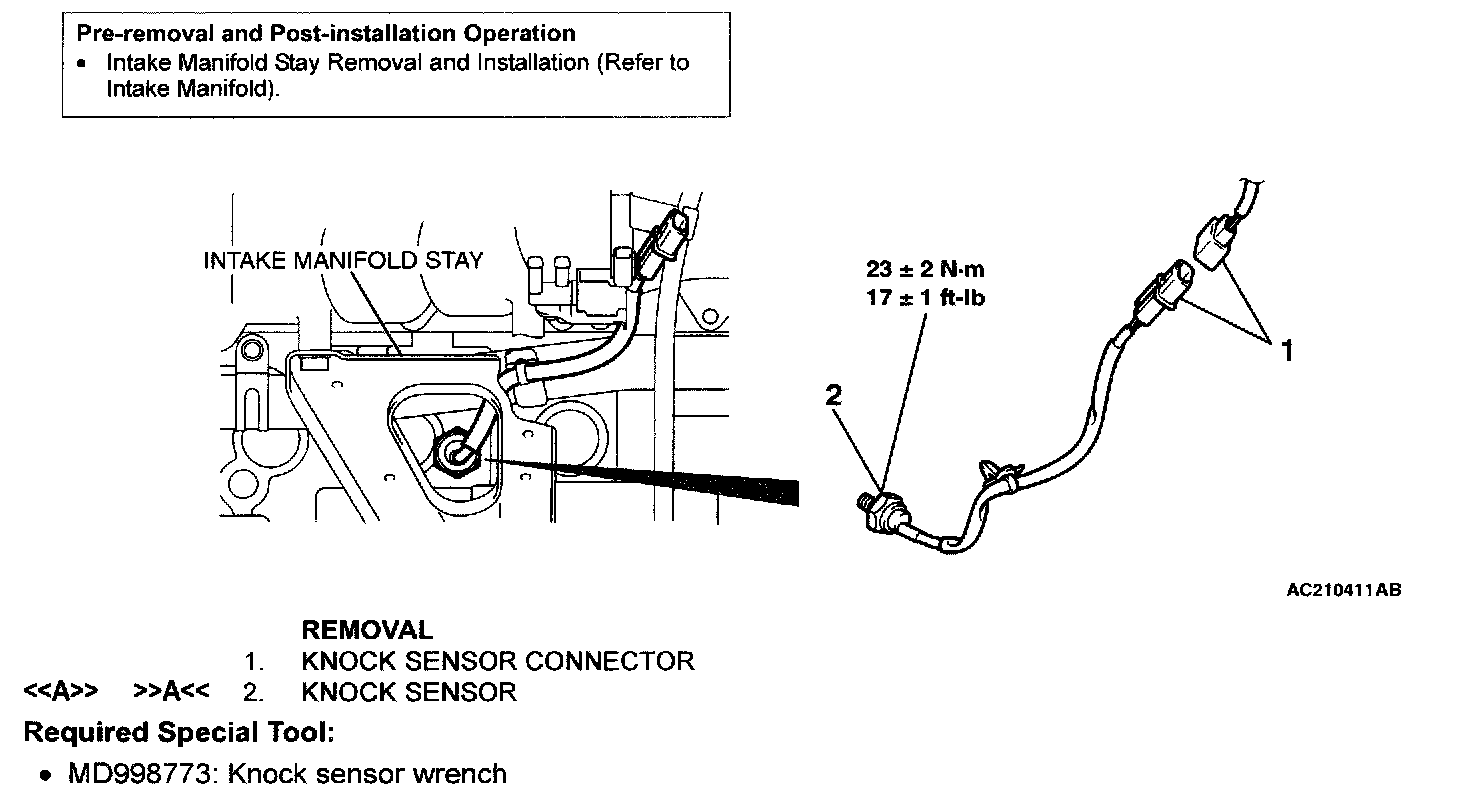

REMOVAL SERVICE POINT







<> KNOCK SENSOR REMOVAL
Use special tool MD998773 to remove the knock sensor.

INSTALLATION SERVICE POINT







<> KNOCK SENSOR INSTALLATION
Use special tool MD998773 to install the knock sensor.
