Home >> Mitsubishi >> 2003 >> Lancer Evolution L4-2.0L DOHC Turbo >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> System Diagram >> Removal and Installation

Removal and Installation

Part 1 Of 5:




Part 2 Of 5:




Part 3 Of 5:




Part 4 Of 5:




Part 5 Of 5:

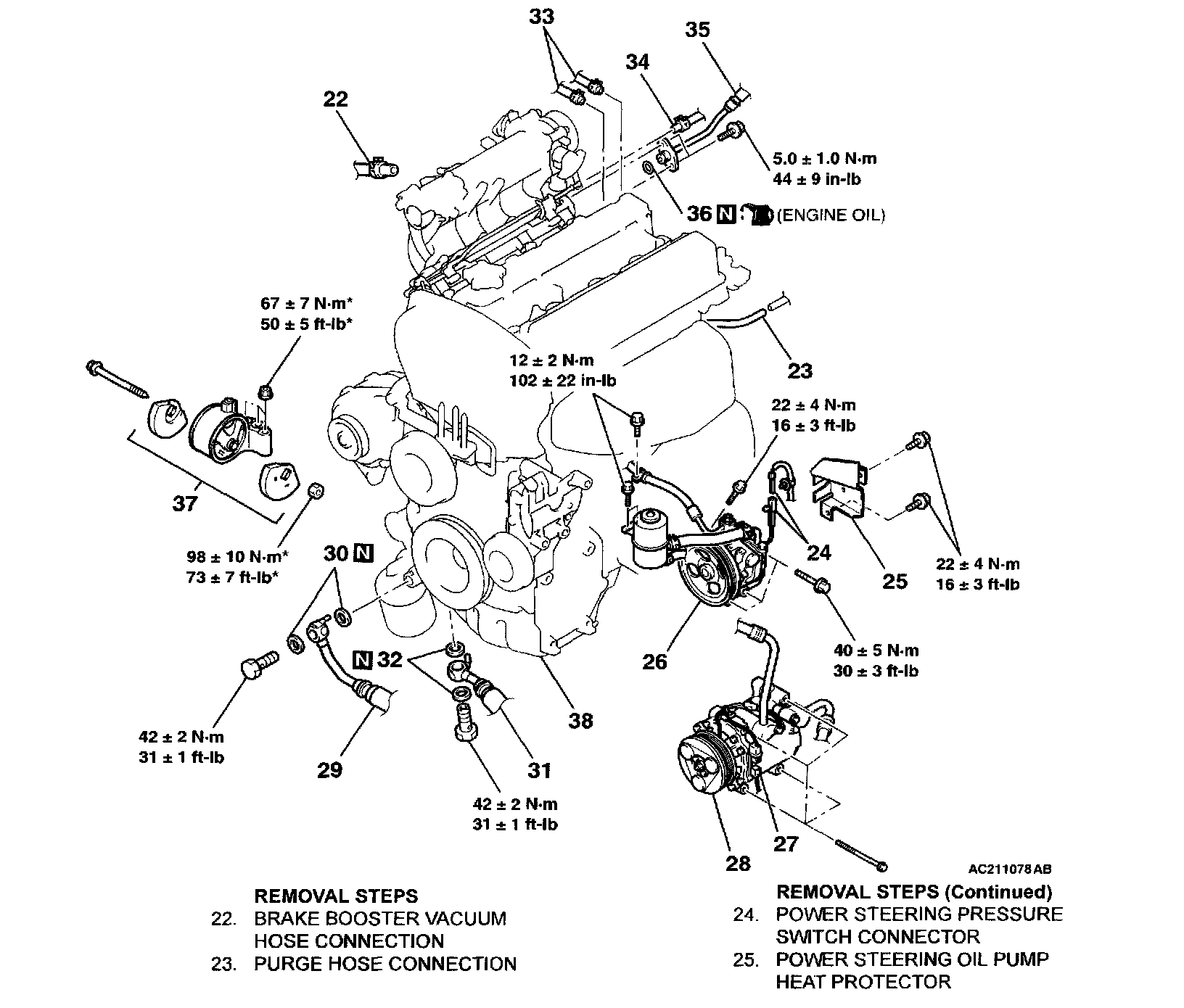

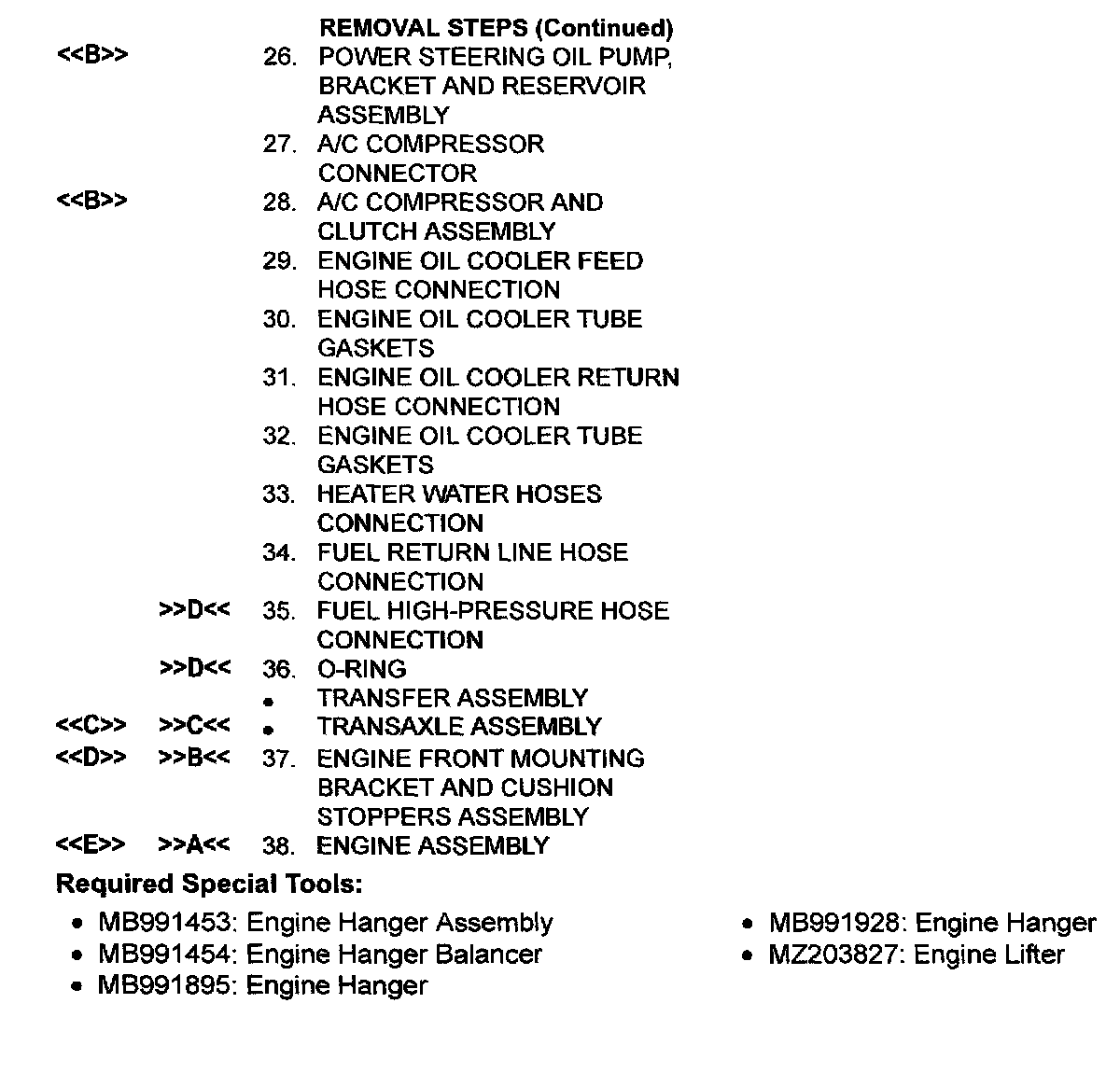

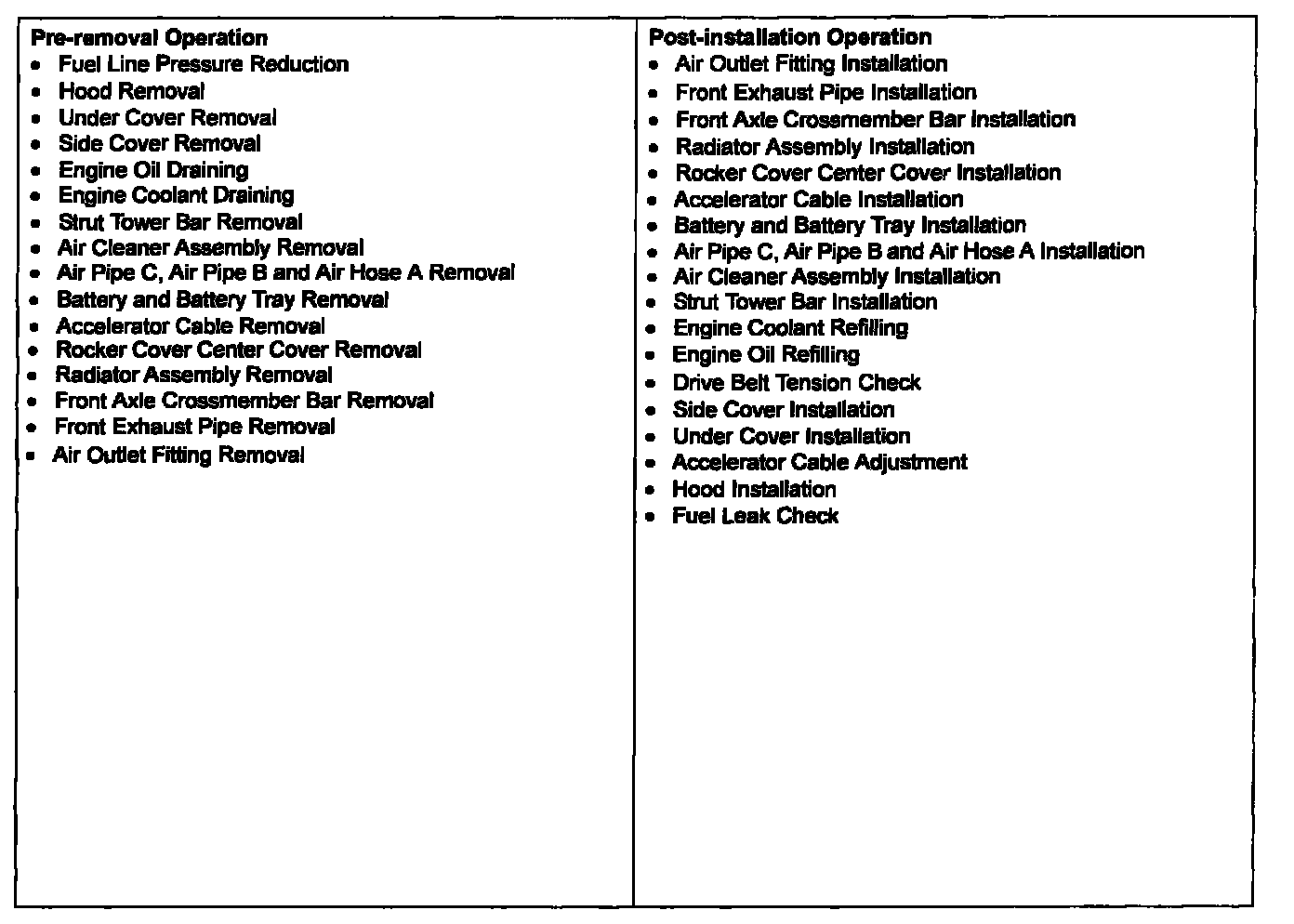

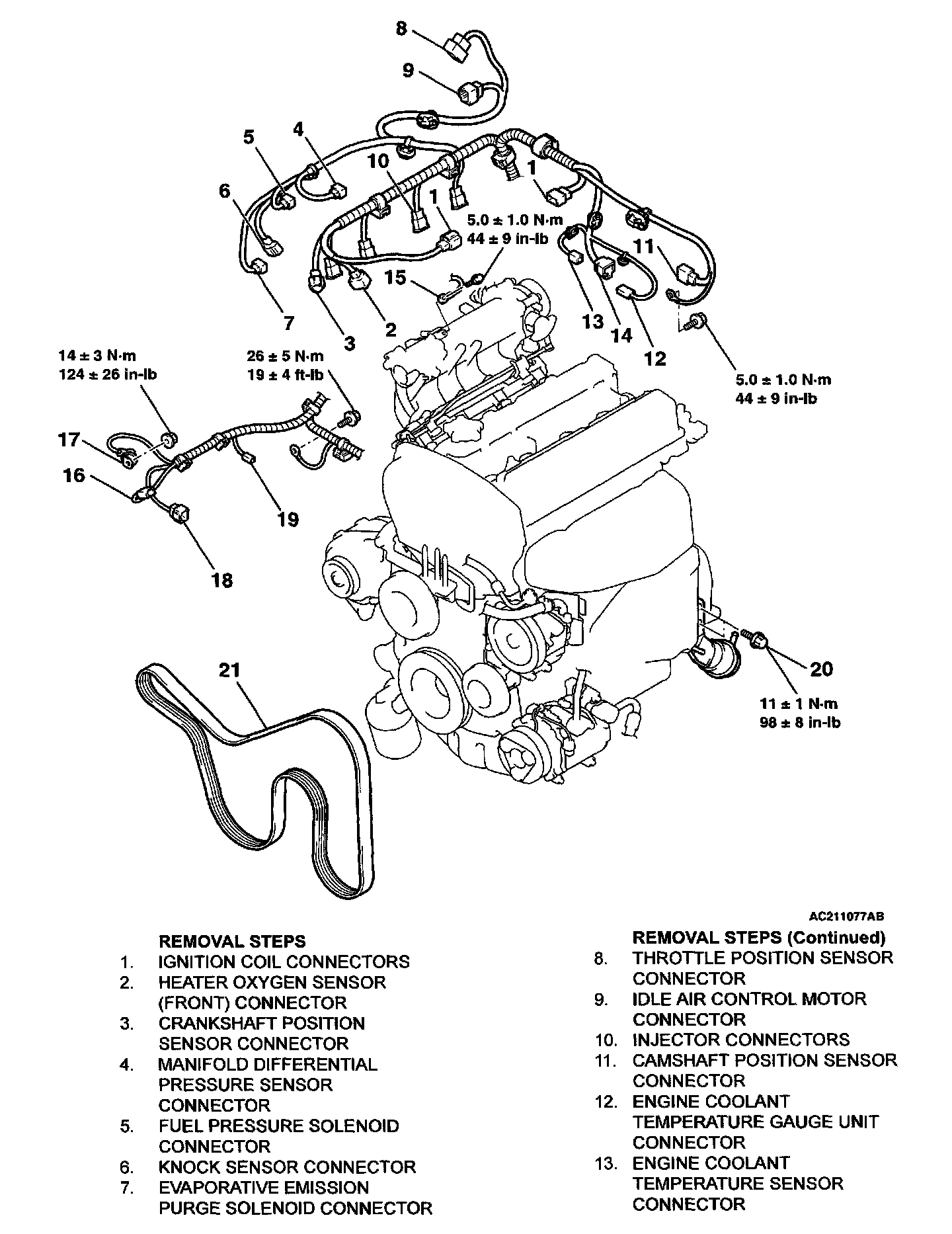

ENGINE ASSEMBLY REPLACEMENT W/ RELATED COMPONENTS
