Home >> Mitsubishi >> 2003 >> Eclipse V6-3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Steering Column

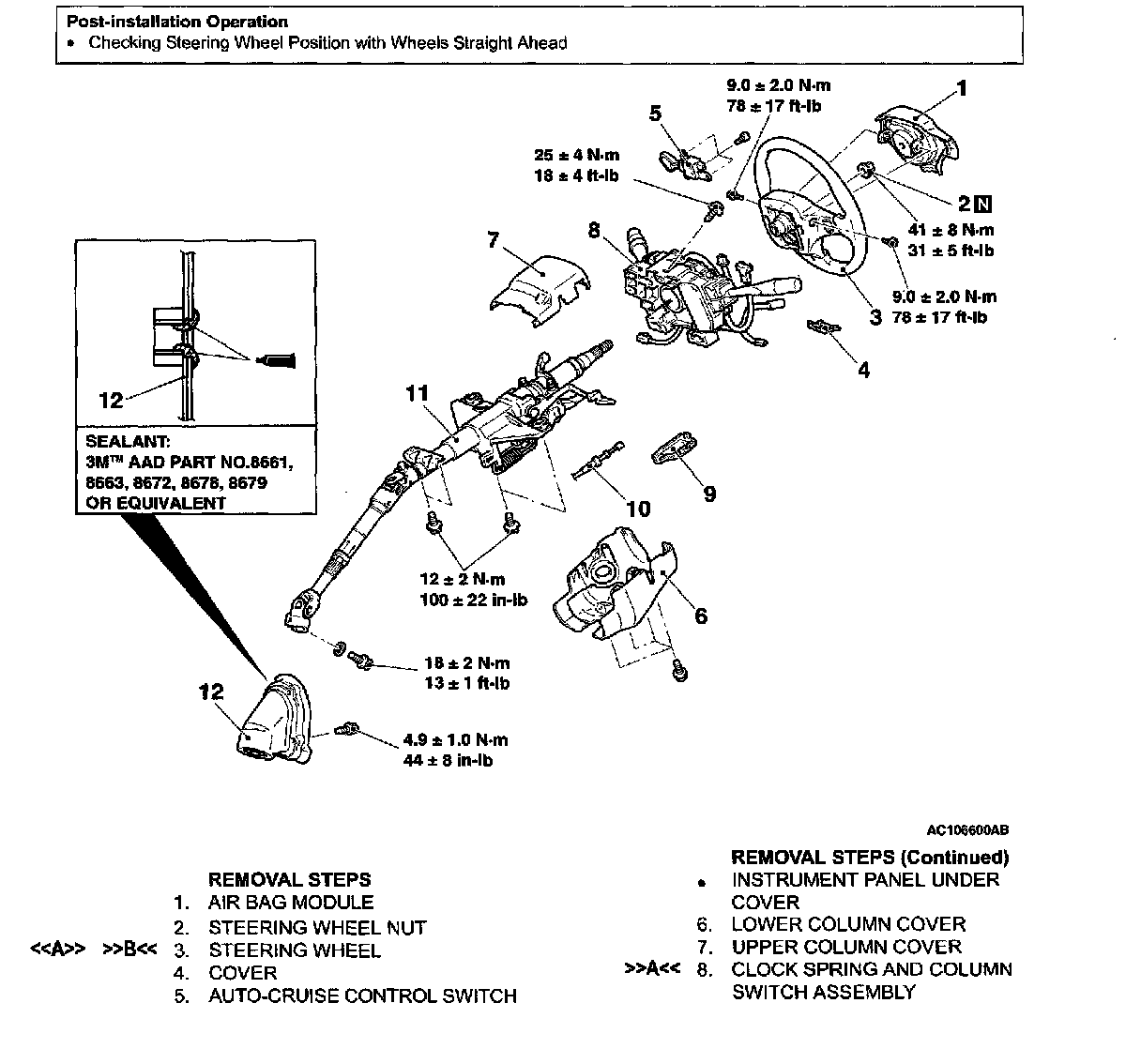

Steering Column

Part 1 Of 2:

Part 2 Of 2:
