Home >> Mitsubishi >> 2003 >> Eclipse V6-3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Disc Brake System >> Front

Front

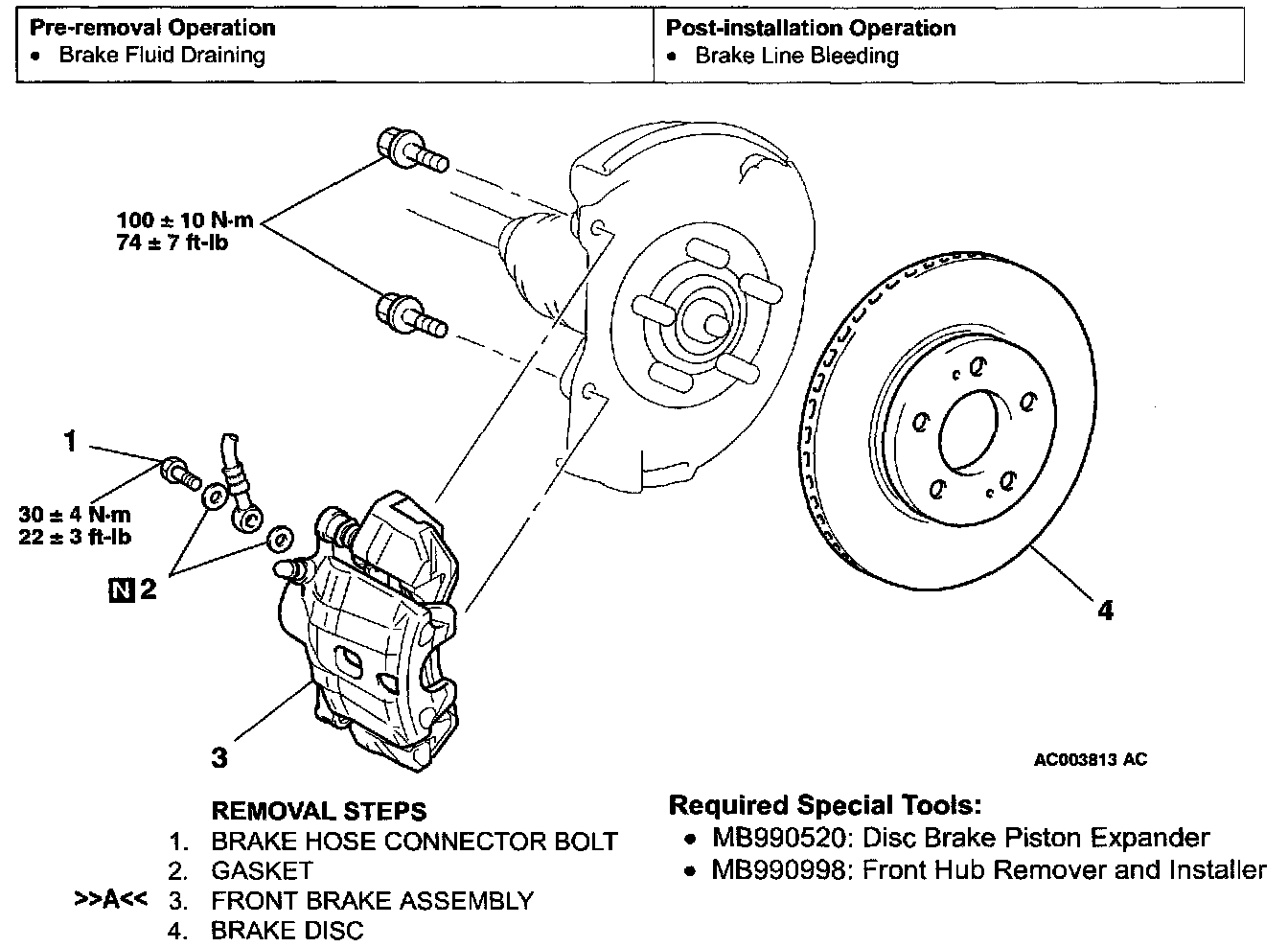

FRONT DISC BRAKE ASSEMBLY REPLACEMENT W/ RELATED COMPONENTS

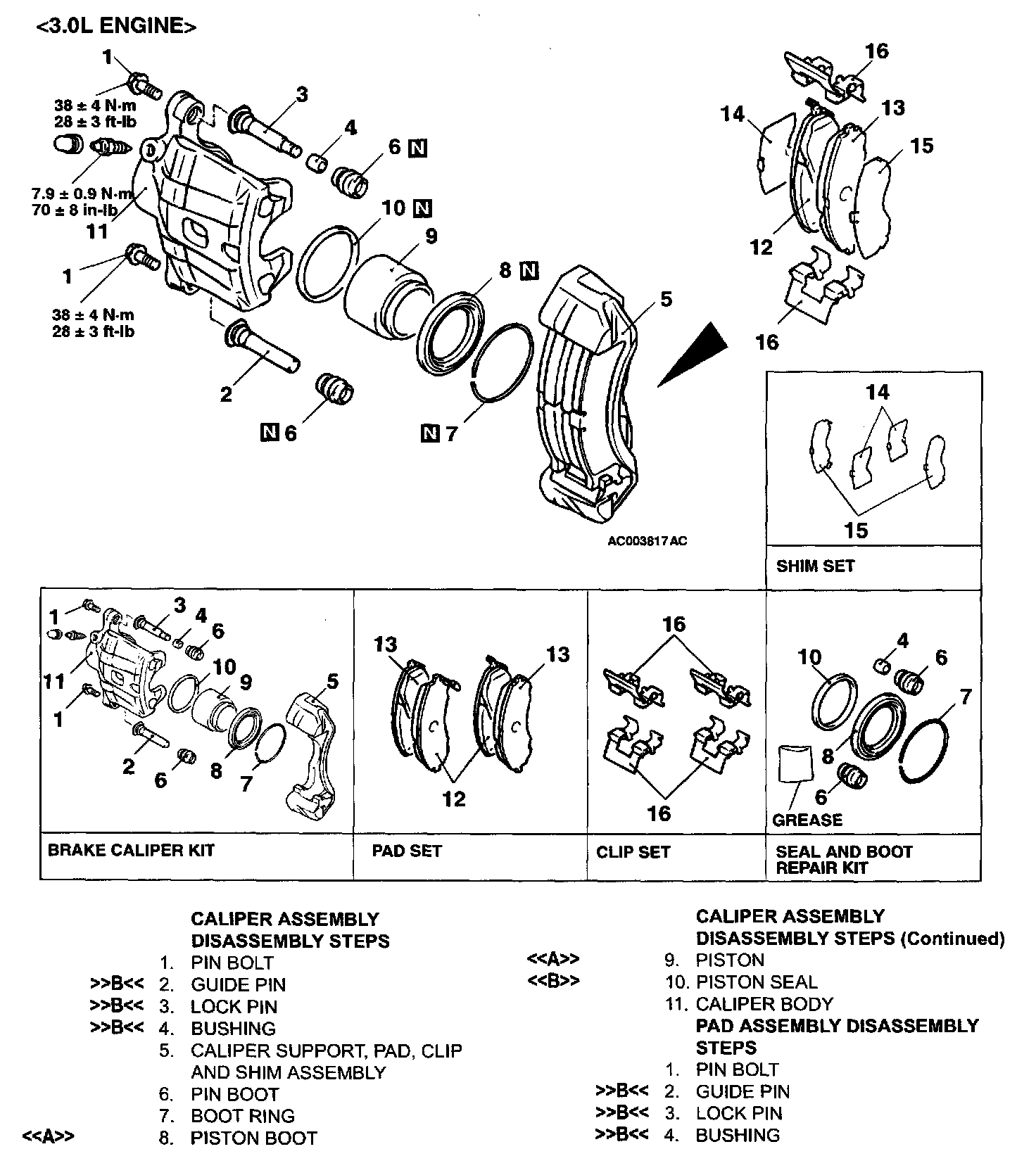

FRONT DISC BRAKE ASSEMBLY OVERHAUL W/ RELATED COMPONENTS
