Quarter Window Regulator: Service and Repair

Quarter Window Glass and Regulator

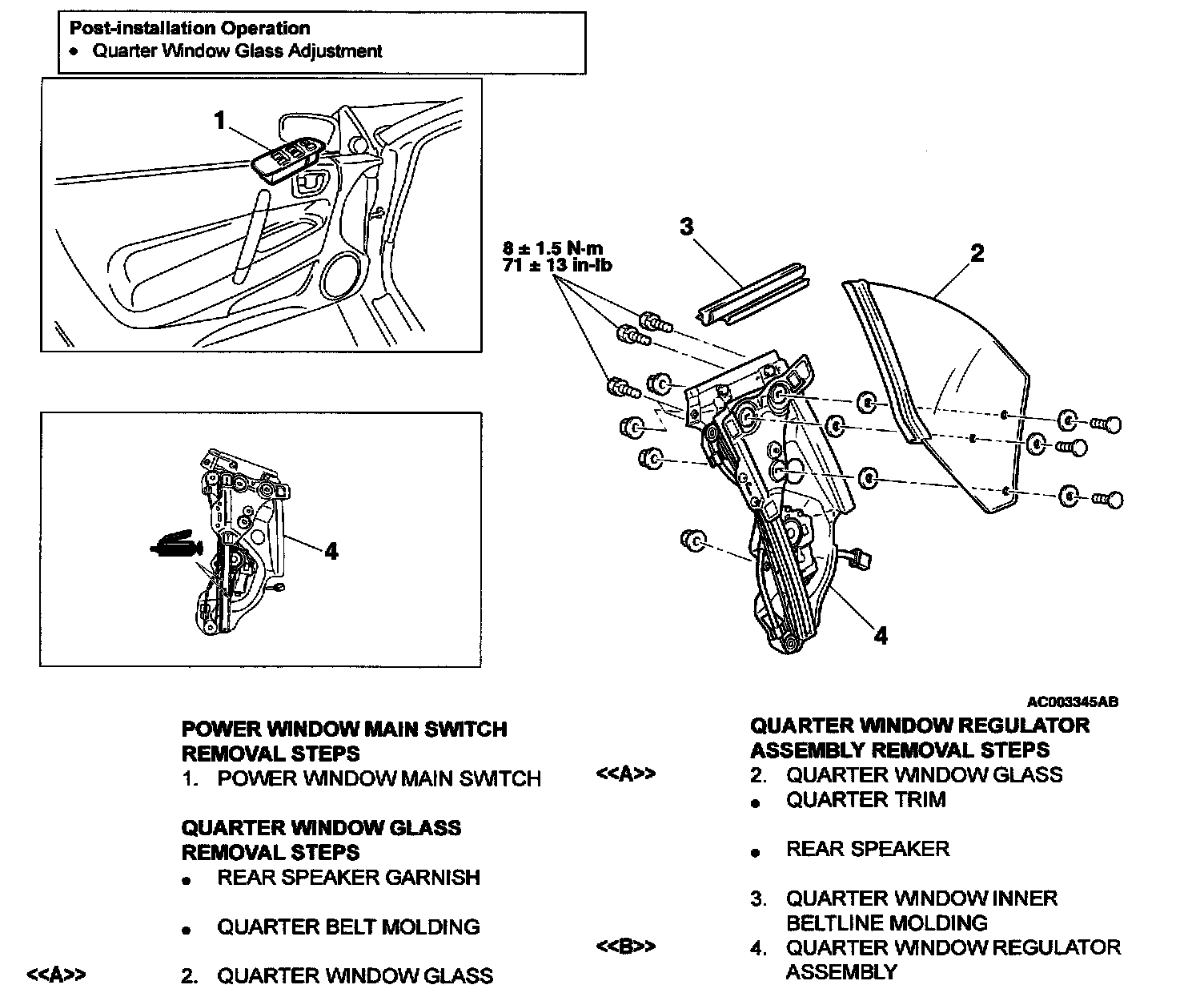

Quarter Window Glass and Regulator:

REMOVAL SERVICE POINTS

[[A]] QUARTER WINDOW GLASS REMOVAL
1. Completely raise the quarter window.
2. Remove the quarter window

[[B]] QUARTER WINDOW REGULATOR ASSEMBLY REMOVAL
Disconnect regulator motor connector, remove the quarter window regulator assembly.
