Symptom Index

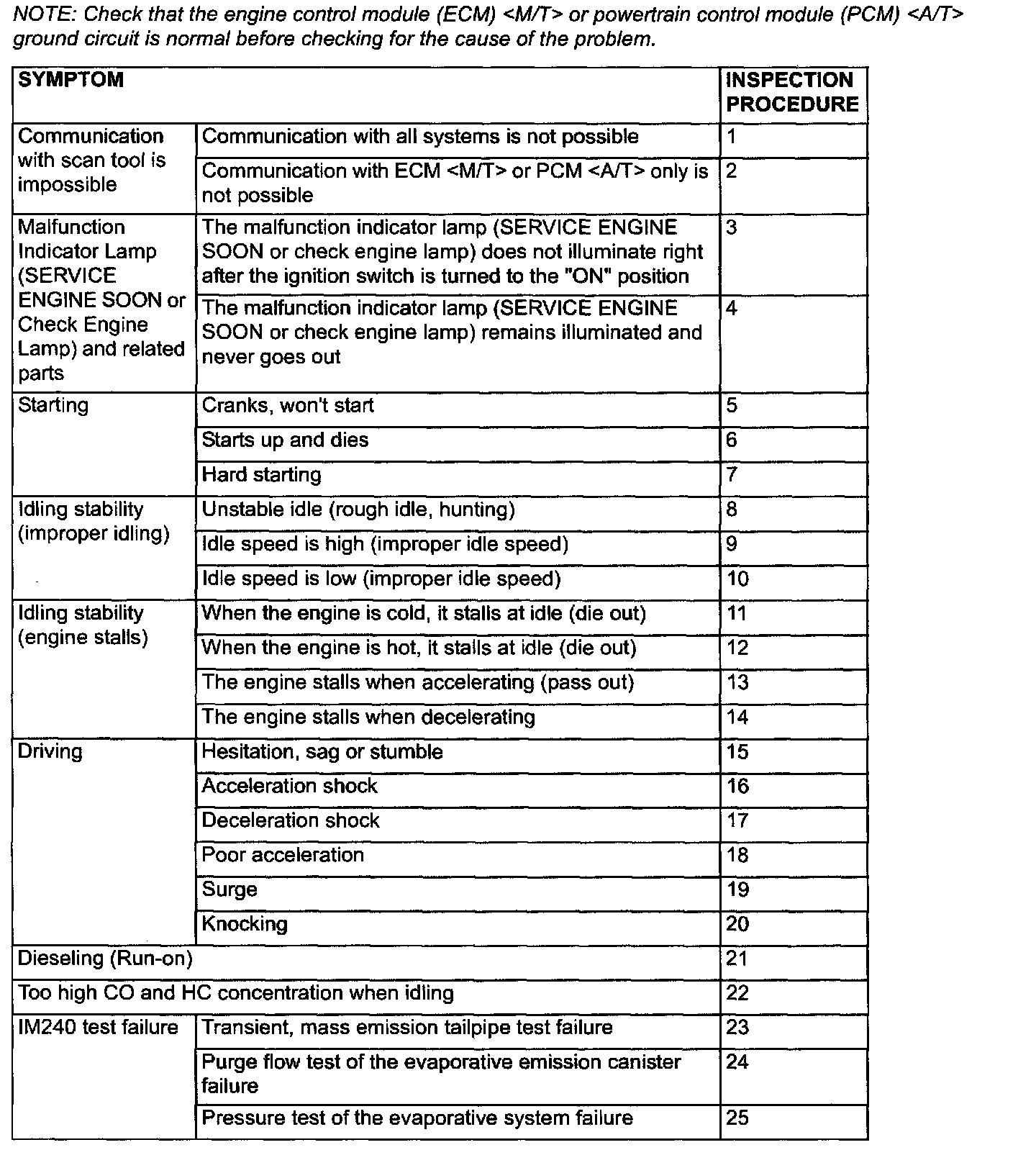

Symptom Chart Part 1:



Symptom Chart Part 2:

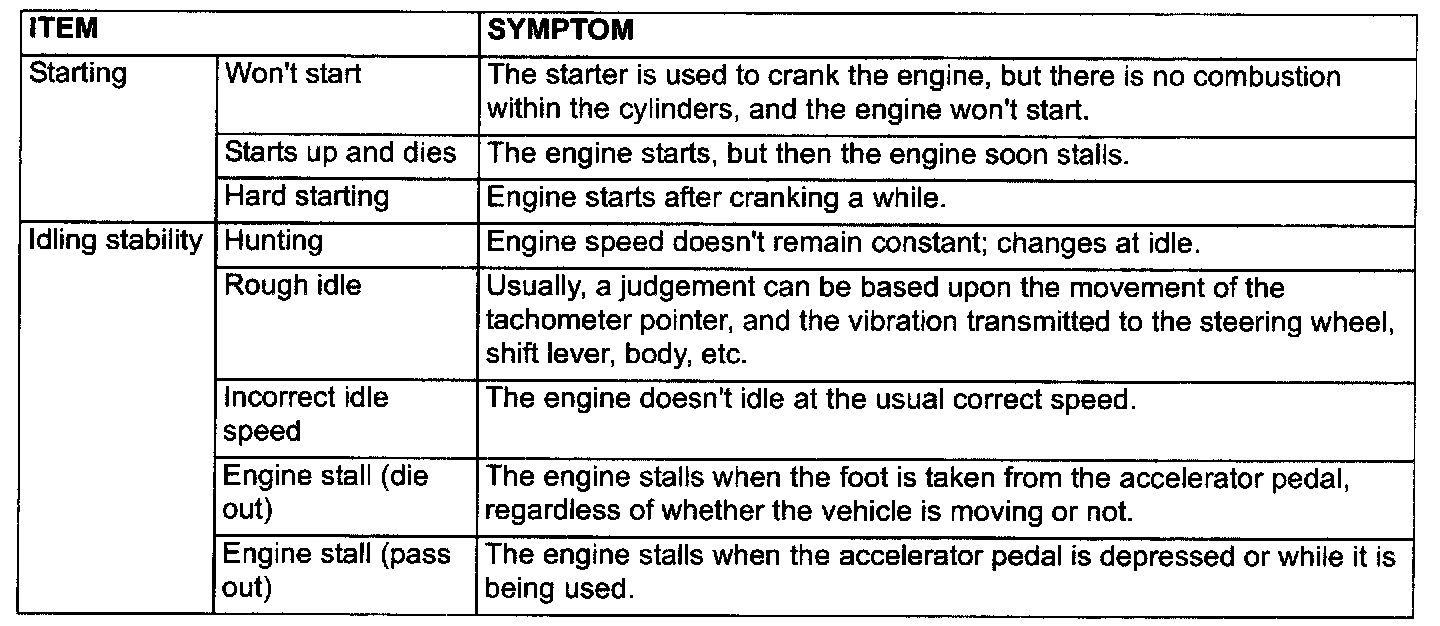

Problem Symptoms Table (For Your Information) Part 1:

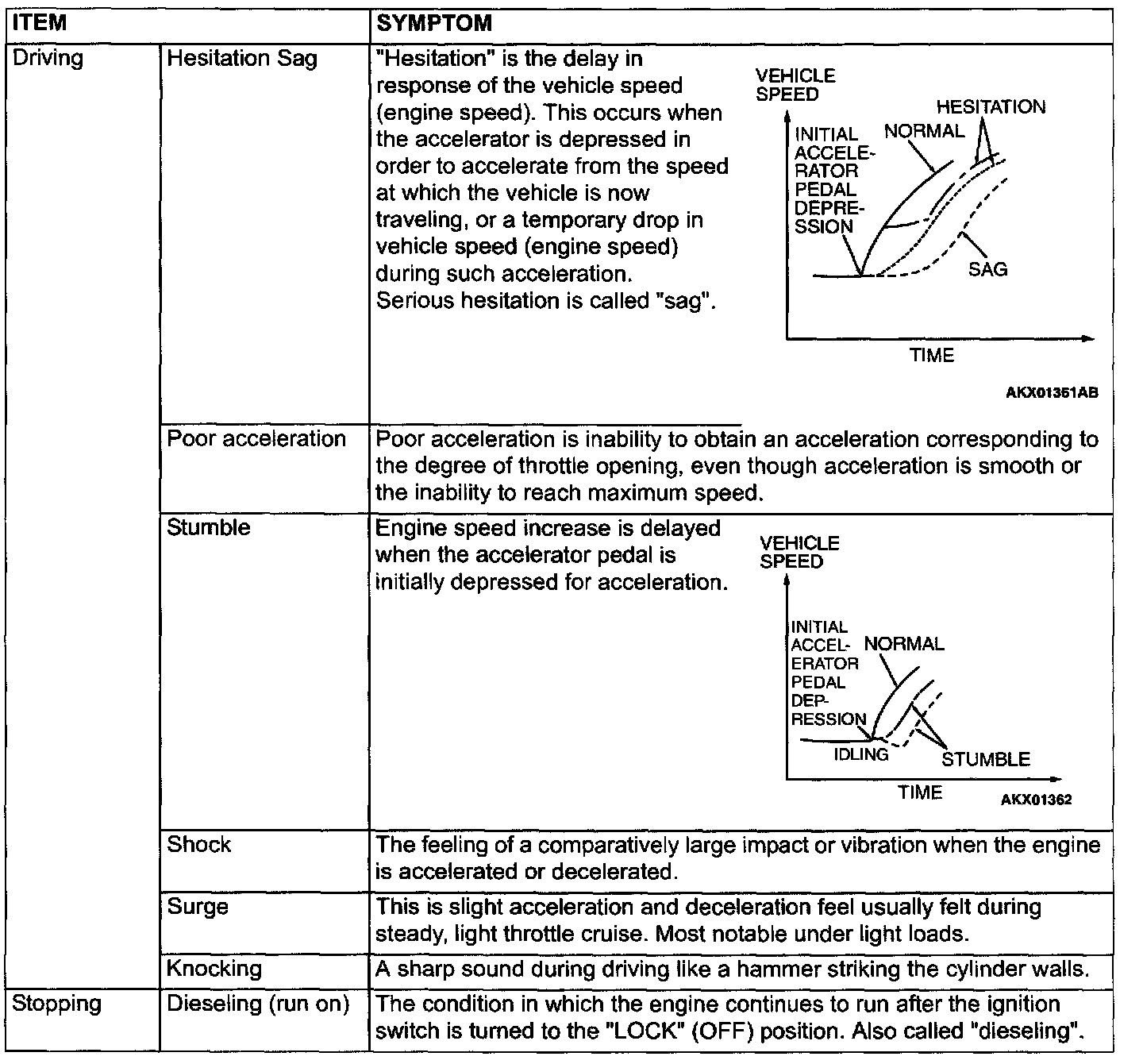

Problem Symptoms Table (For Your Information) Part 2:
