System Diagram

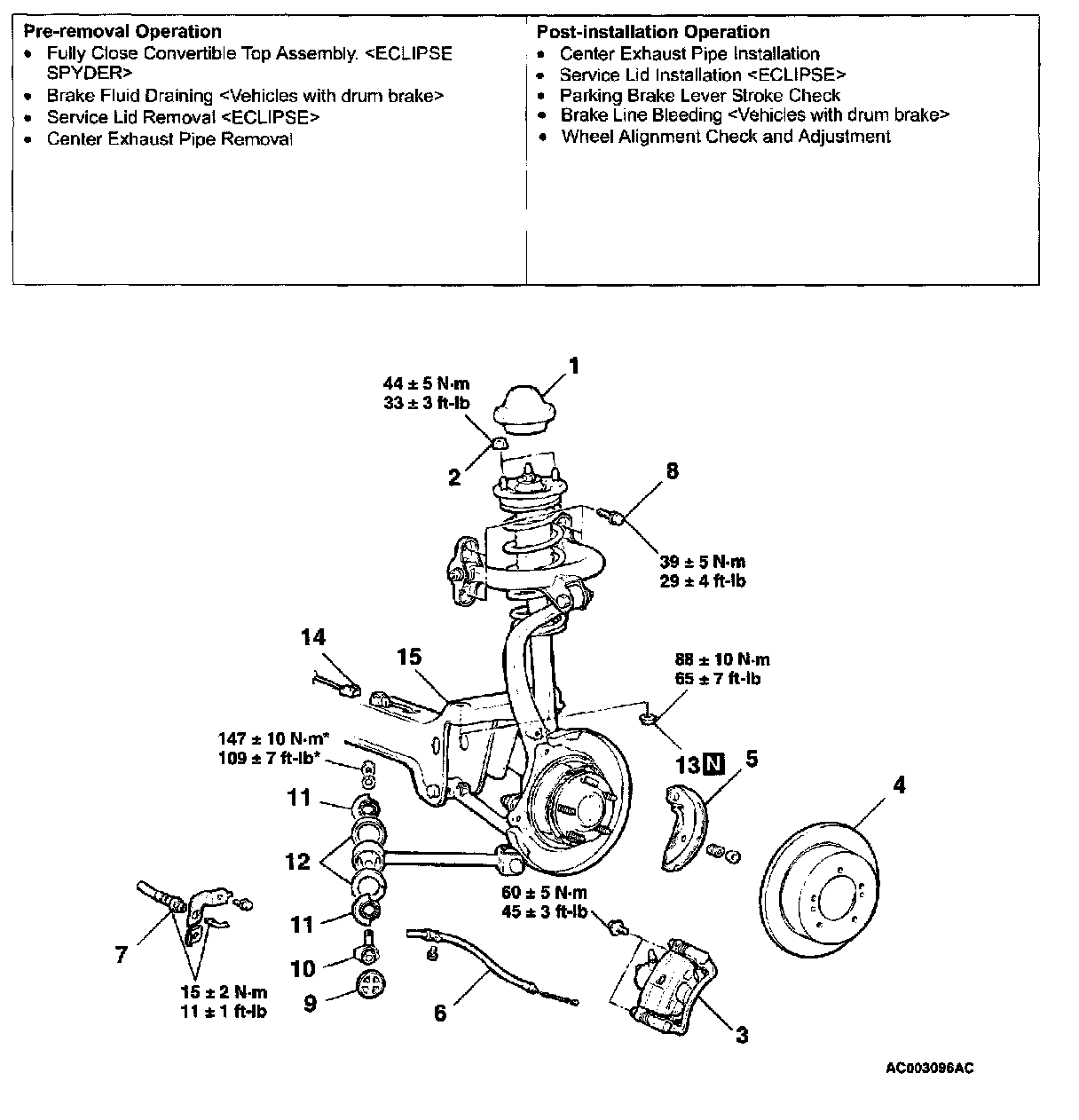

Part 1 Of 2:

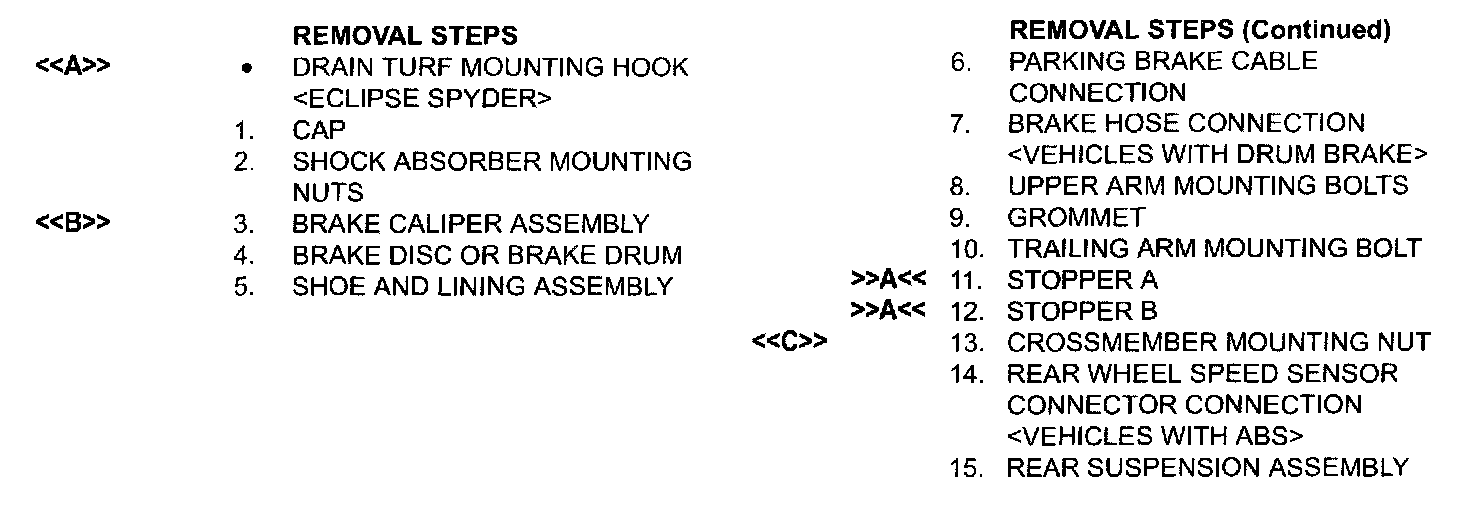

Part 2 Of 2:





REAR SUSPENSION ASSEMBLY REPLACEMENT W/ RELATED COMPONENTS
