Disassembly And Assembly: Notes

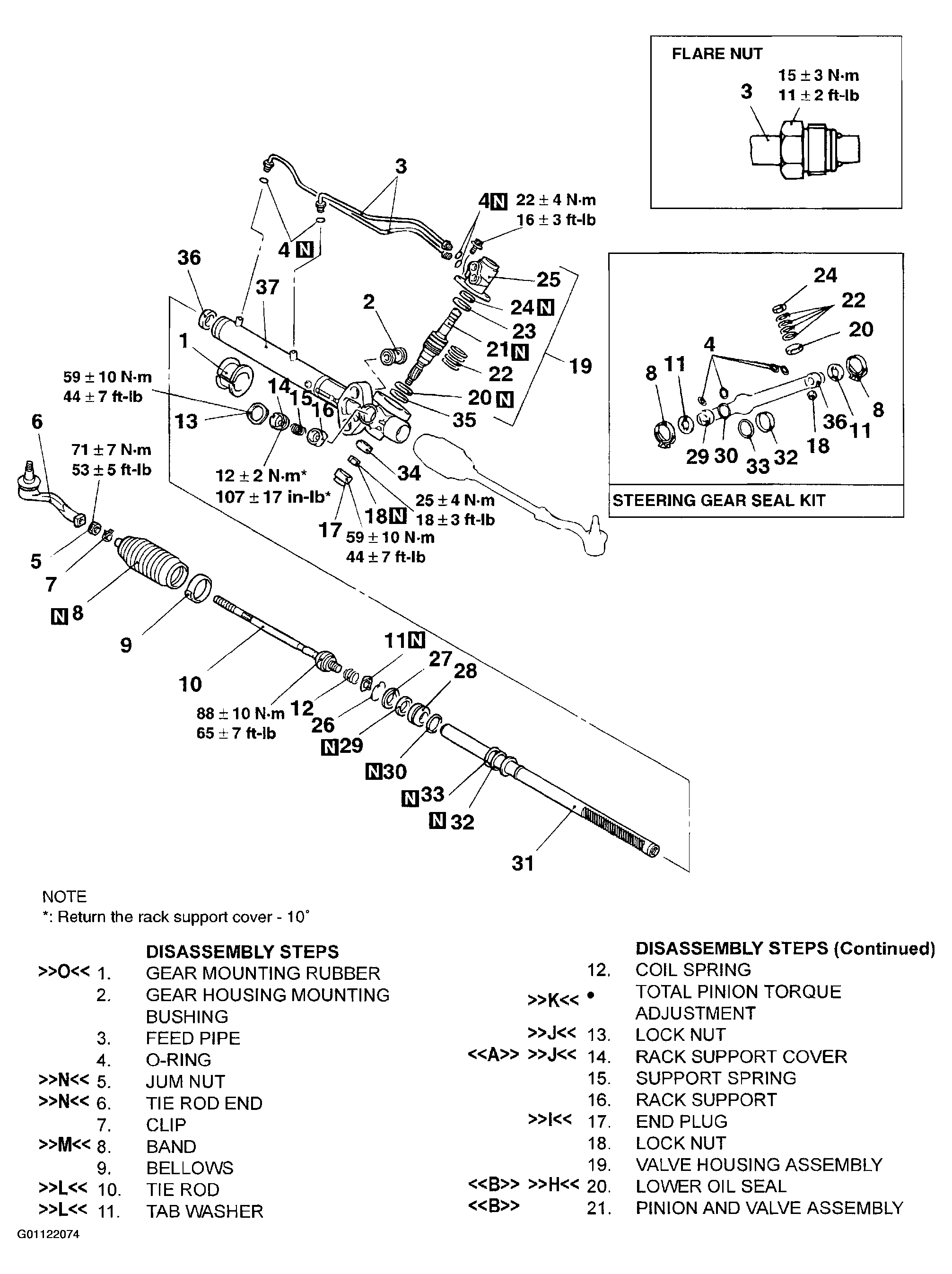

Fig 1: Identifying Steering Gear Box Components (1 Of 2)
G01122074Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

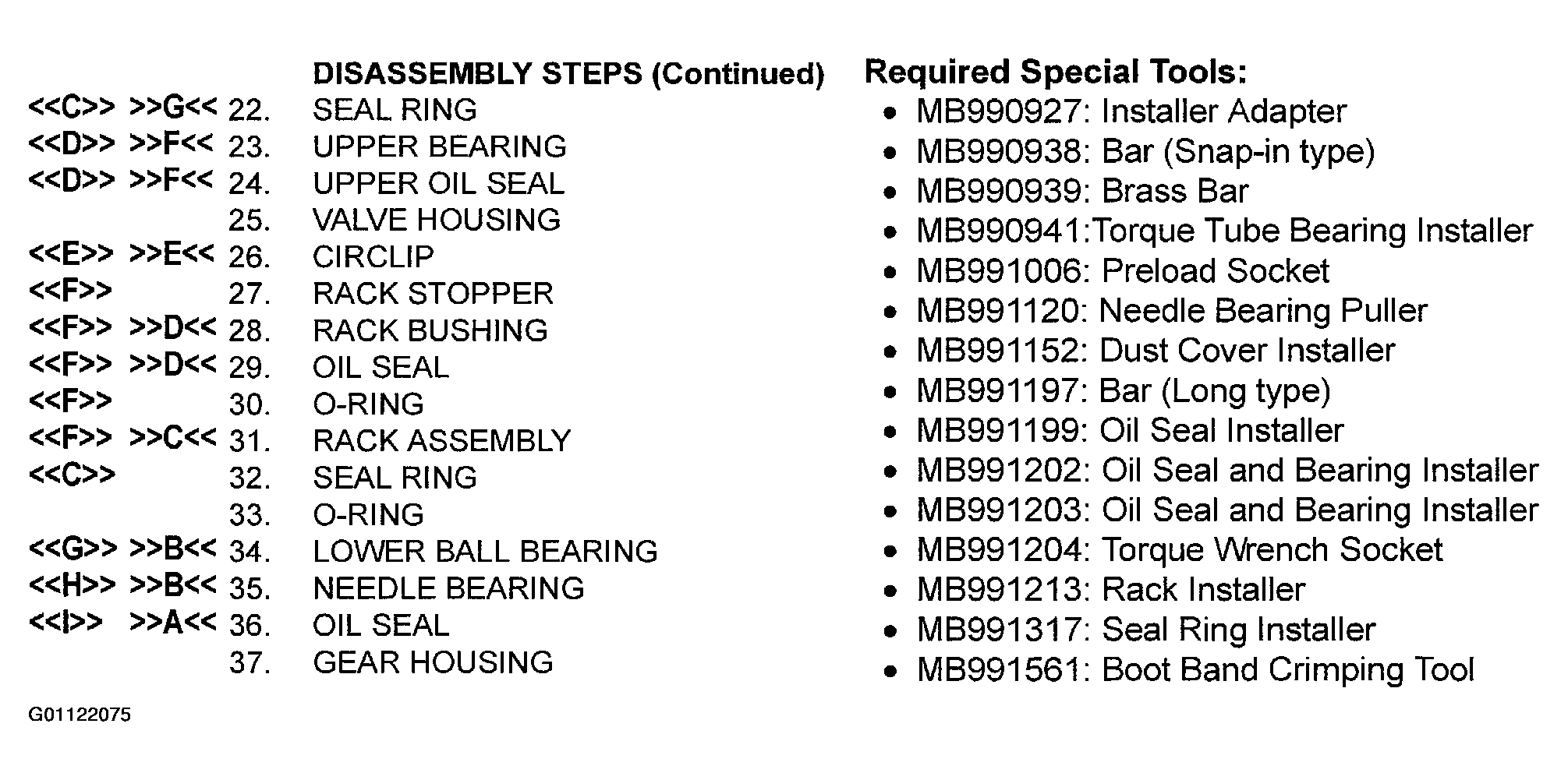

Fig 2: Identifying Steering Gear Box Components (2 Of 2)
G01122075Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
