Home >> Mitsubishi >> 2002 >> Lancer LS L4-2.0L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Stabilizer Bar, Sway Control >> Front

Front

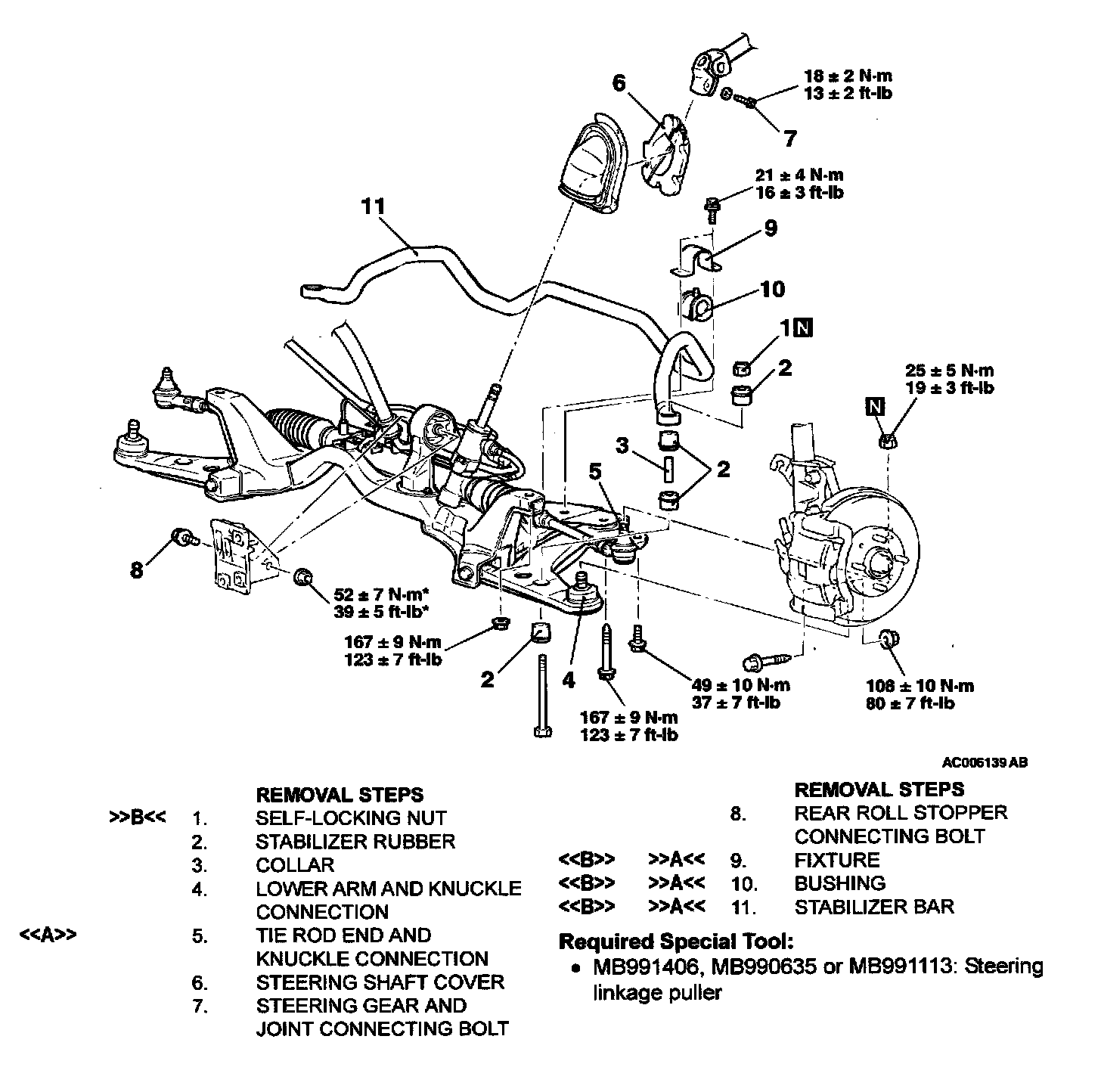

STABILIZER BAR REPLACEMENT W/ RELATED COMPONENTS

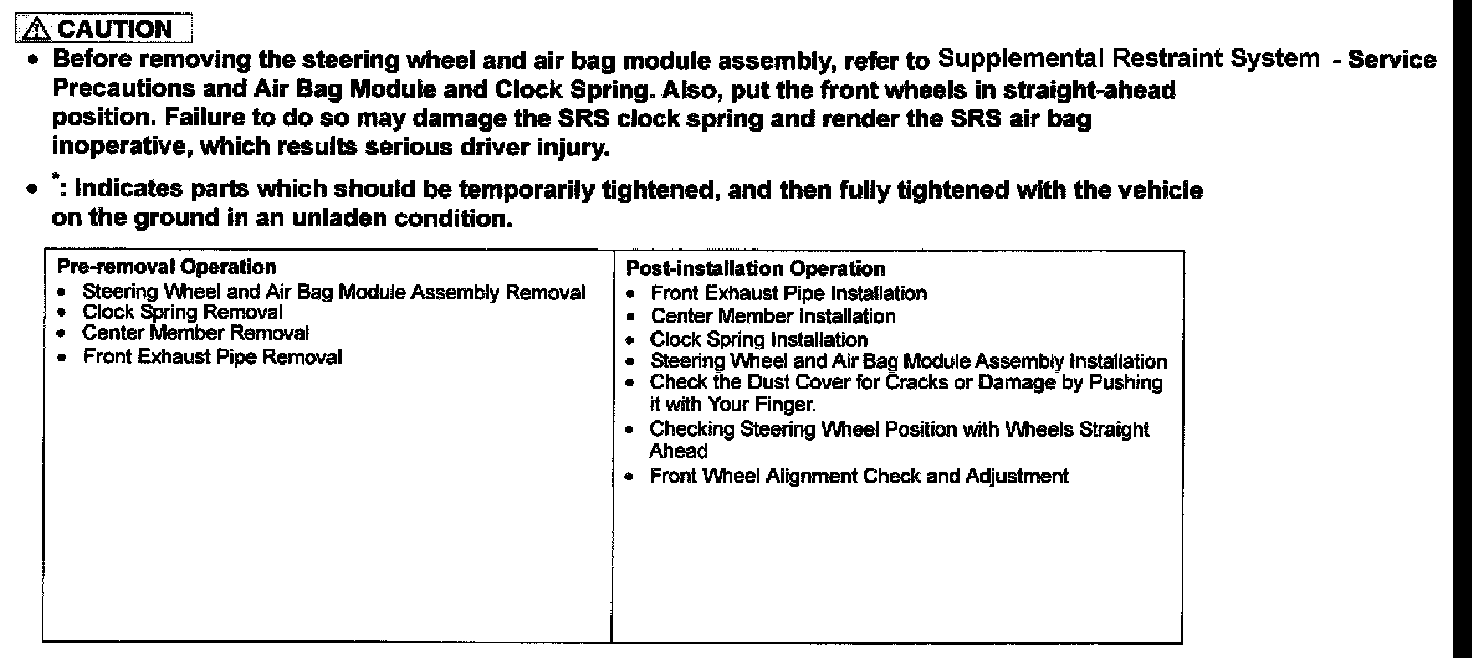

Part 1 of 2





Part 2 of 2
