Axle Shaft Assembly

DRIVESHAFT ASSEMBLY REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS

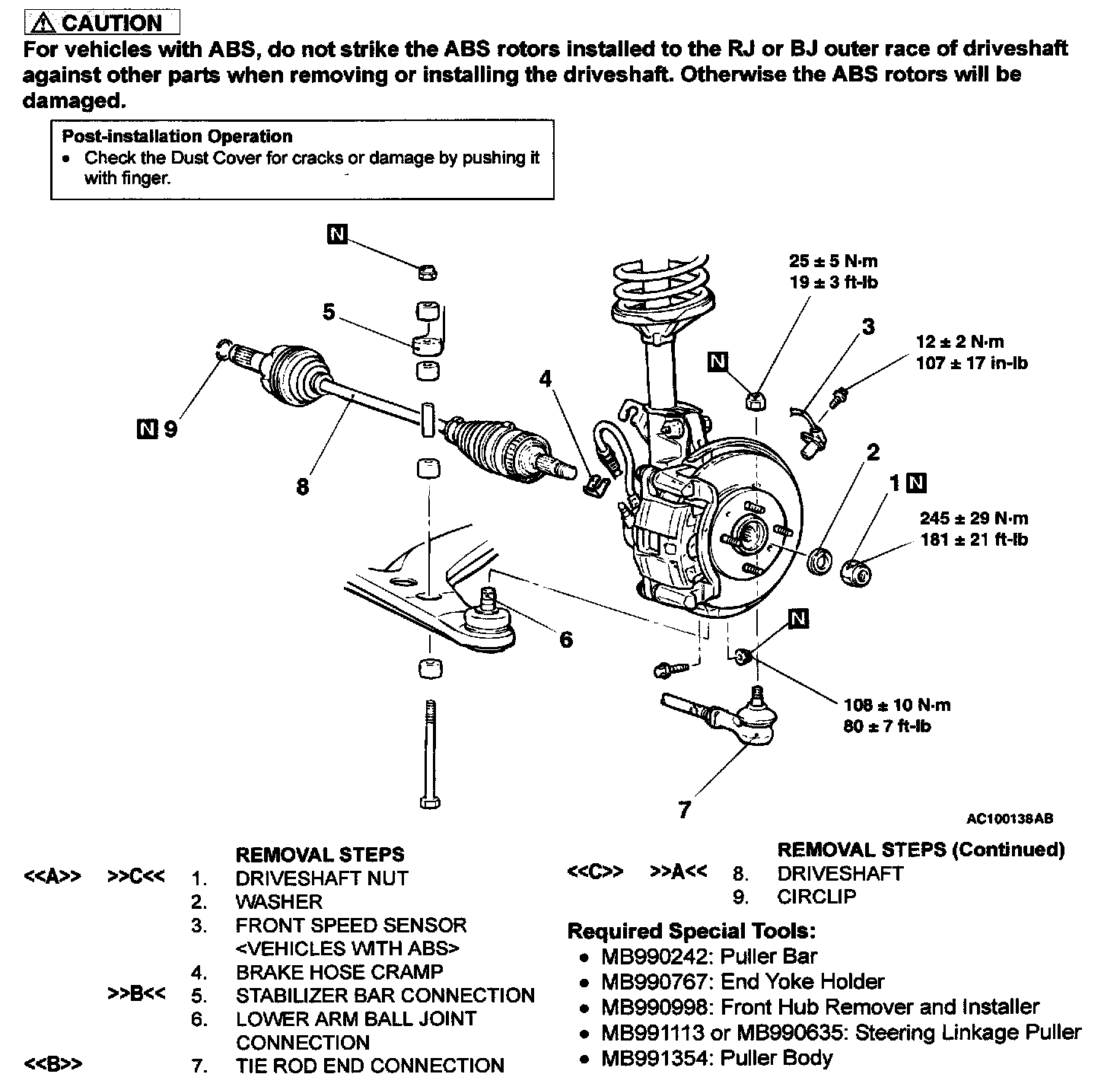

Replacement

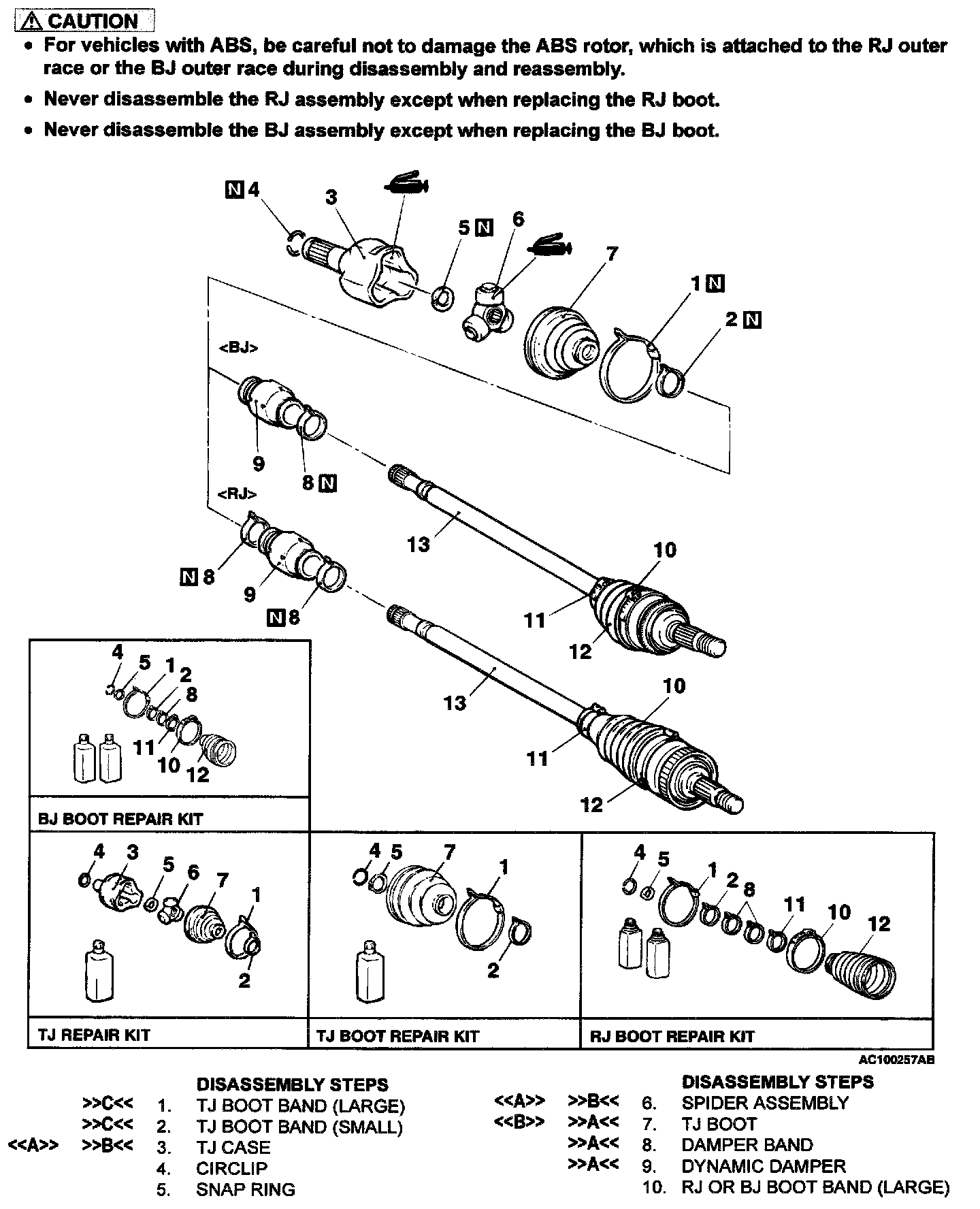

Overhaul





Part 1 of 2





Part 2 of 2
