Engine Assembly Replacement
Engine Assembly Replacement

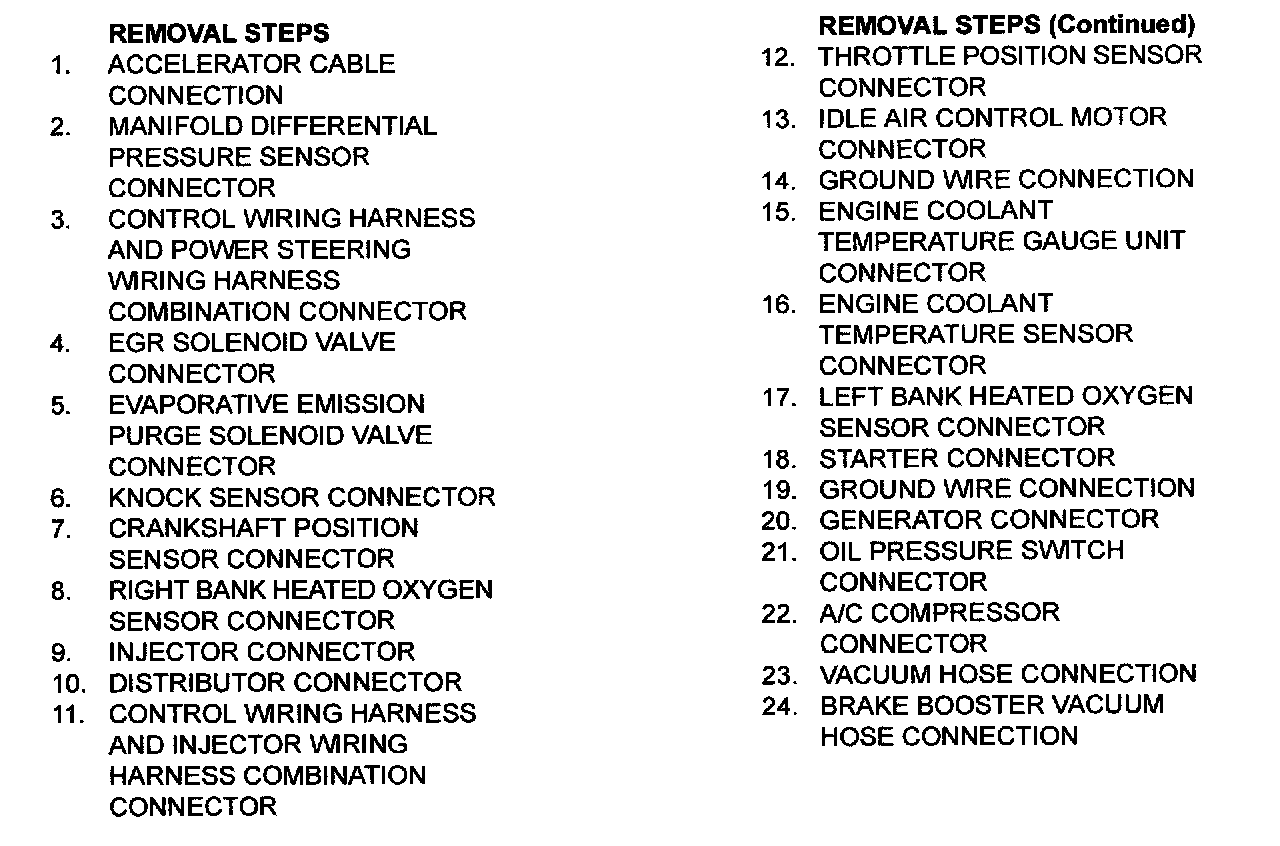

ENGINE ASSEMBLY REPLACEMENT W/ RELATED COMPONENTS

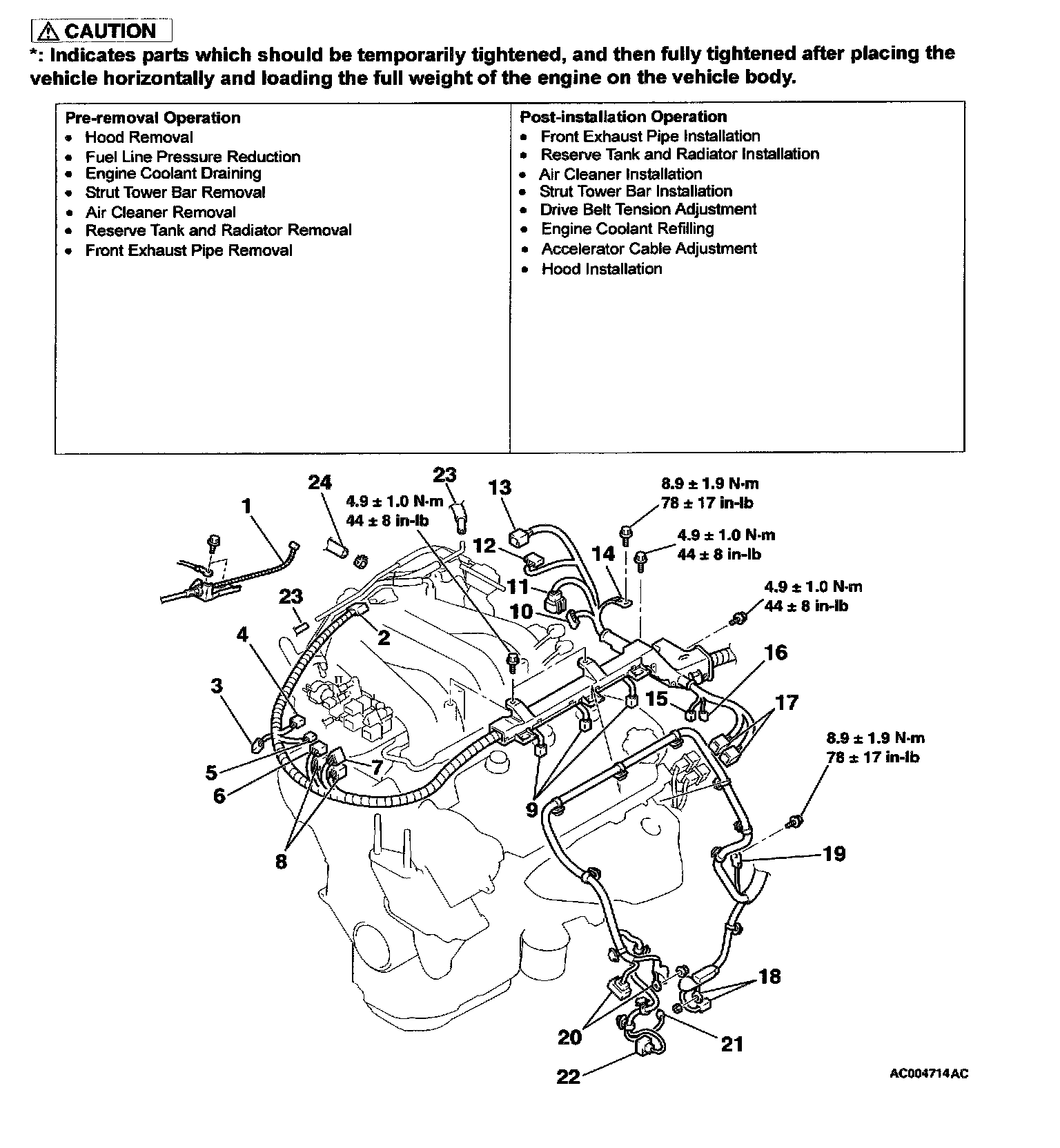

Part 1 of 3

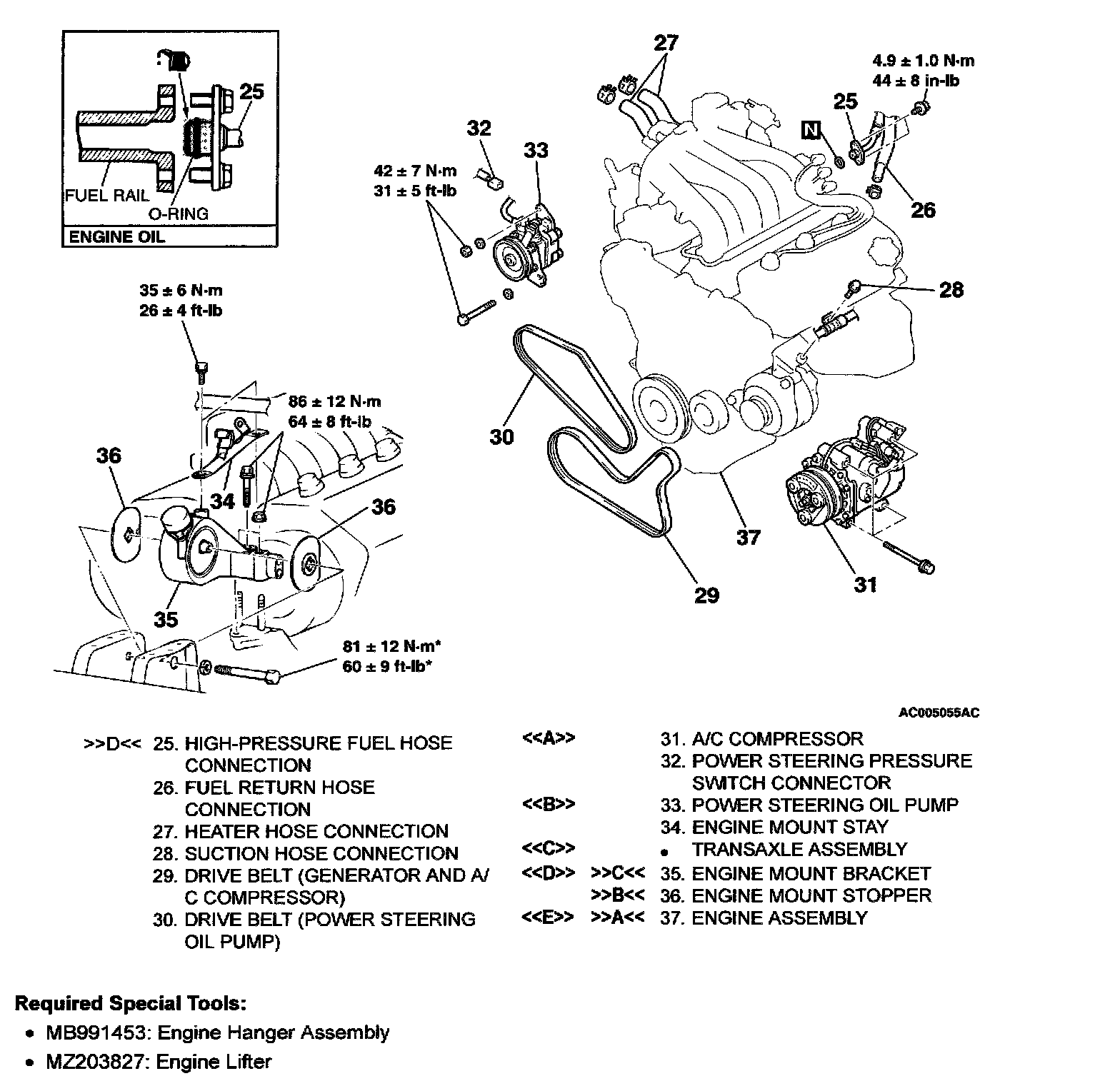

Part 2 of 3
Part 3 of 3
