Eclipse GT V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Grounding
Grounding

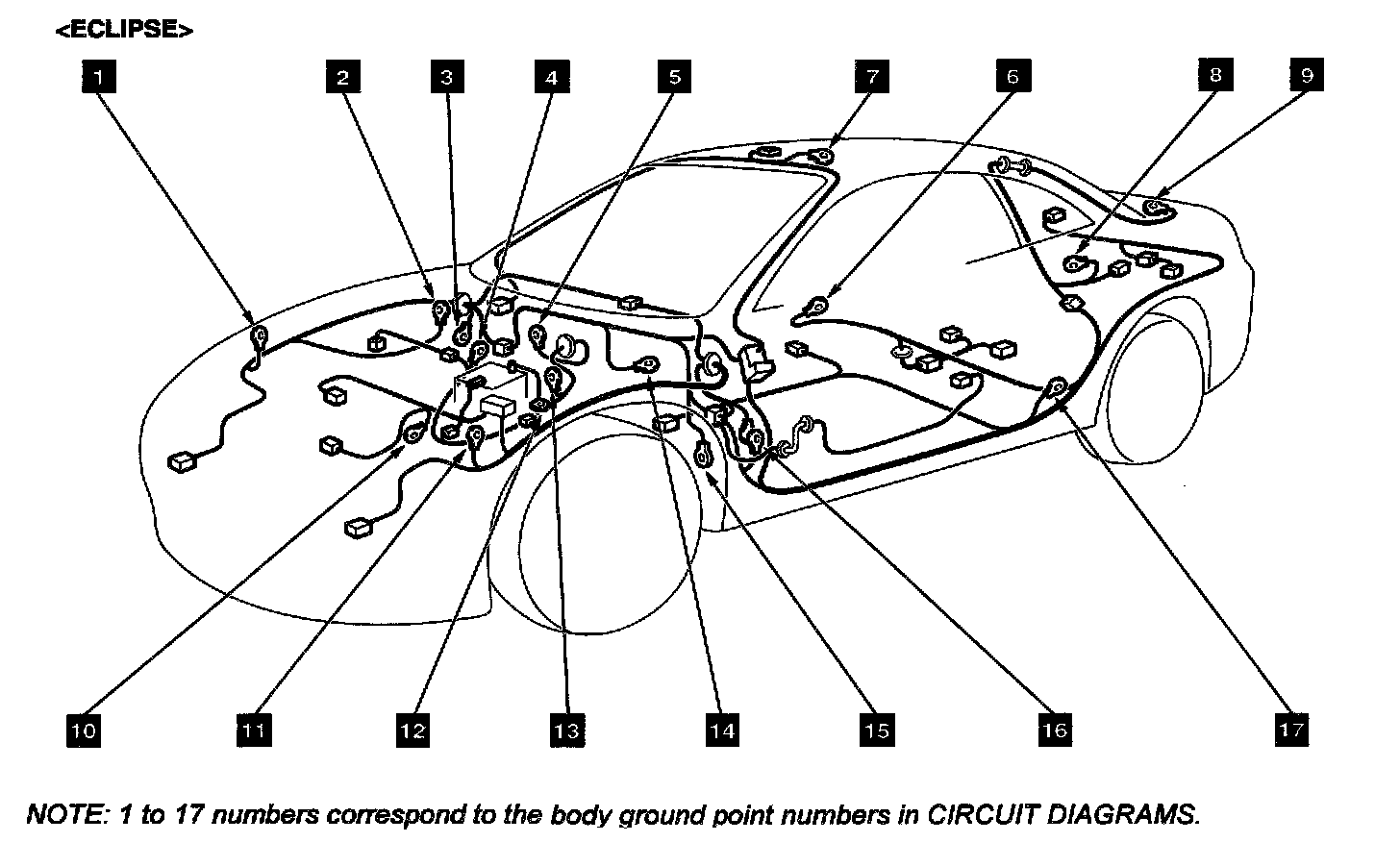

Overall View:

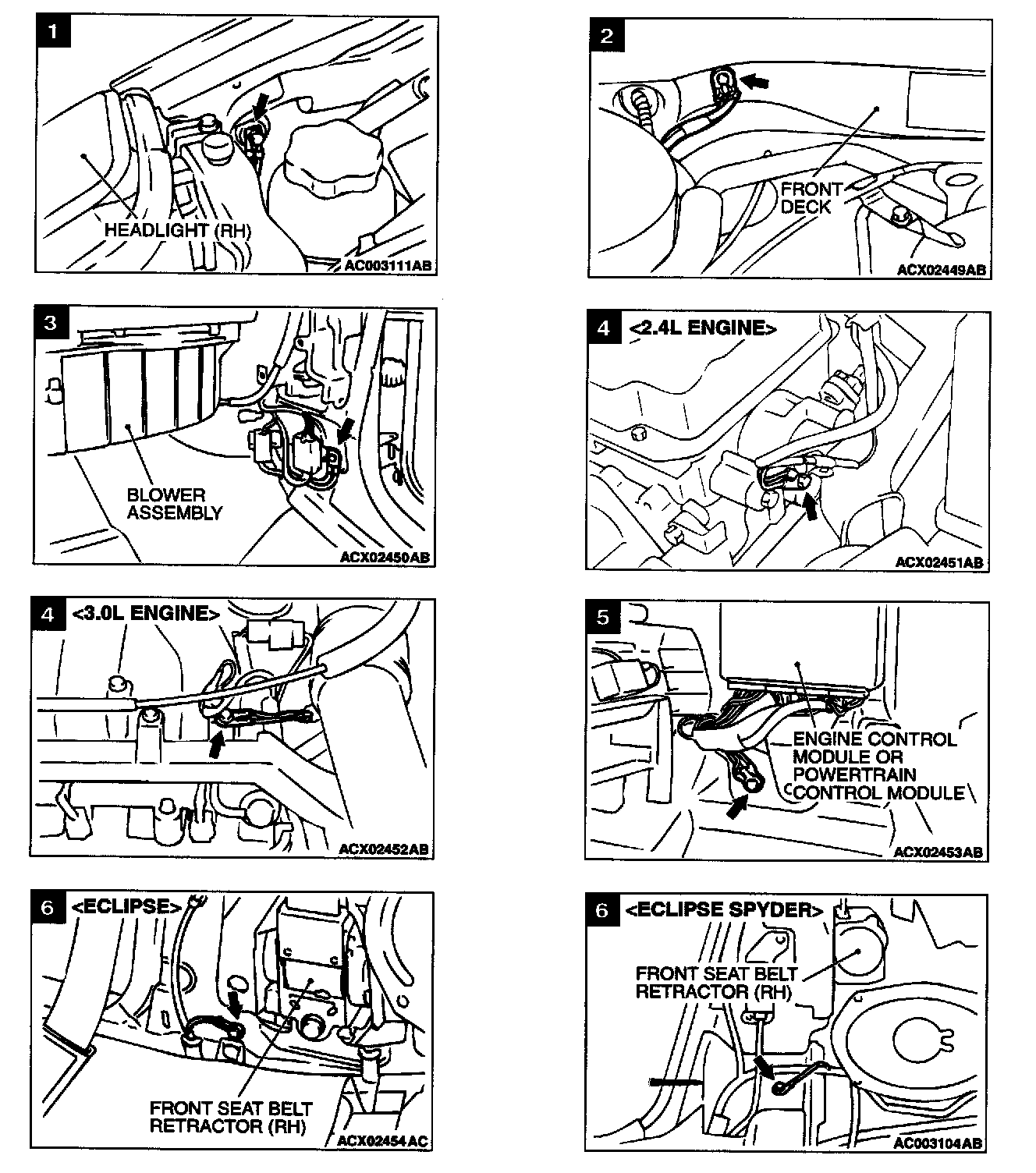

Views 1 - 6:

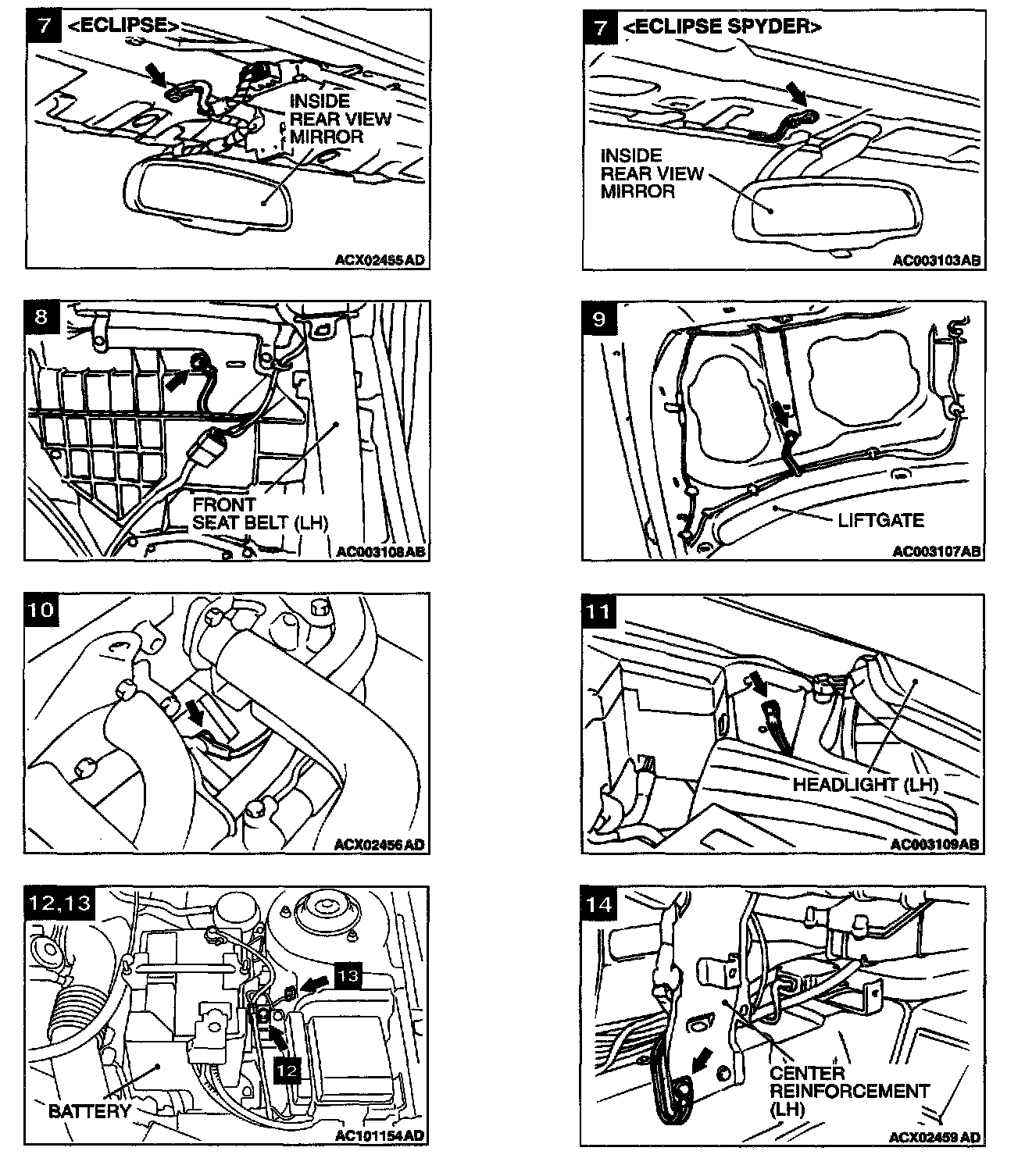

Views 7 - 14:

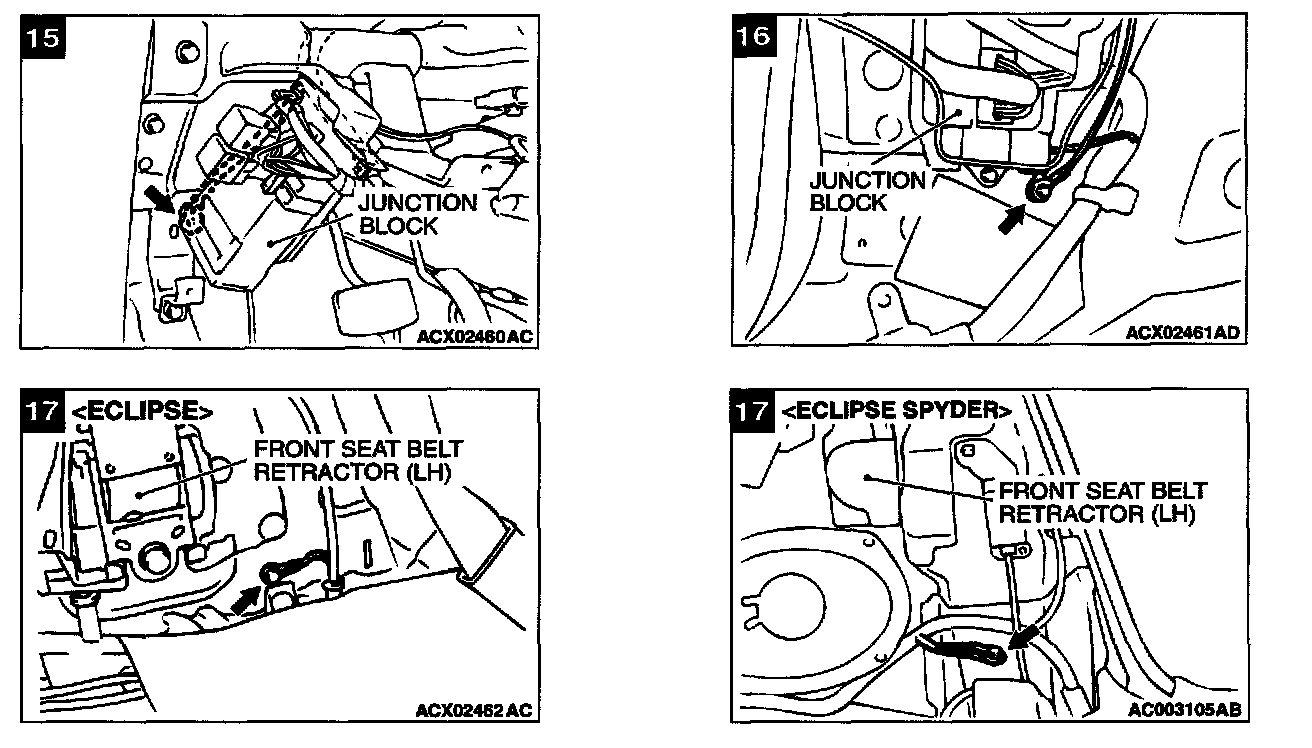

Views 15 - 17:
