Front

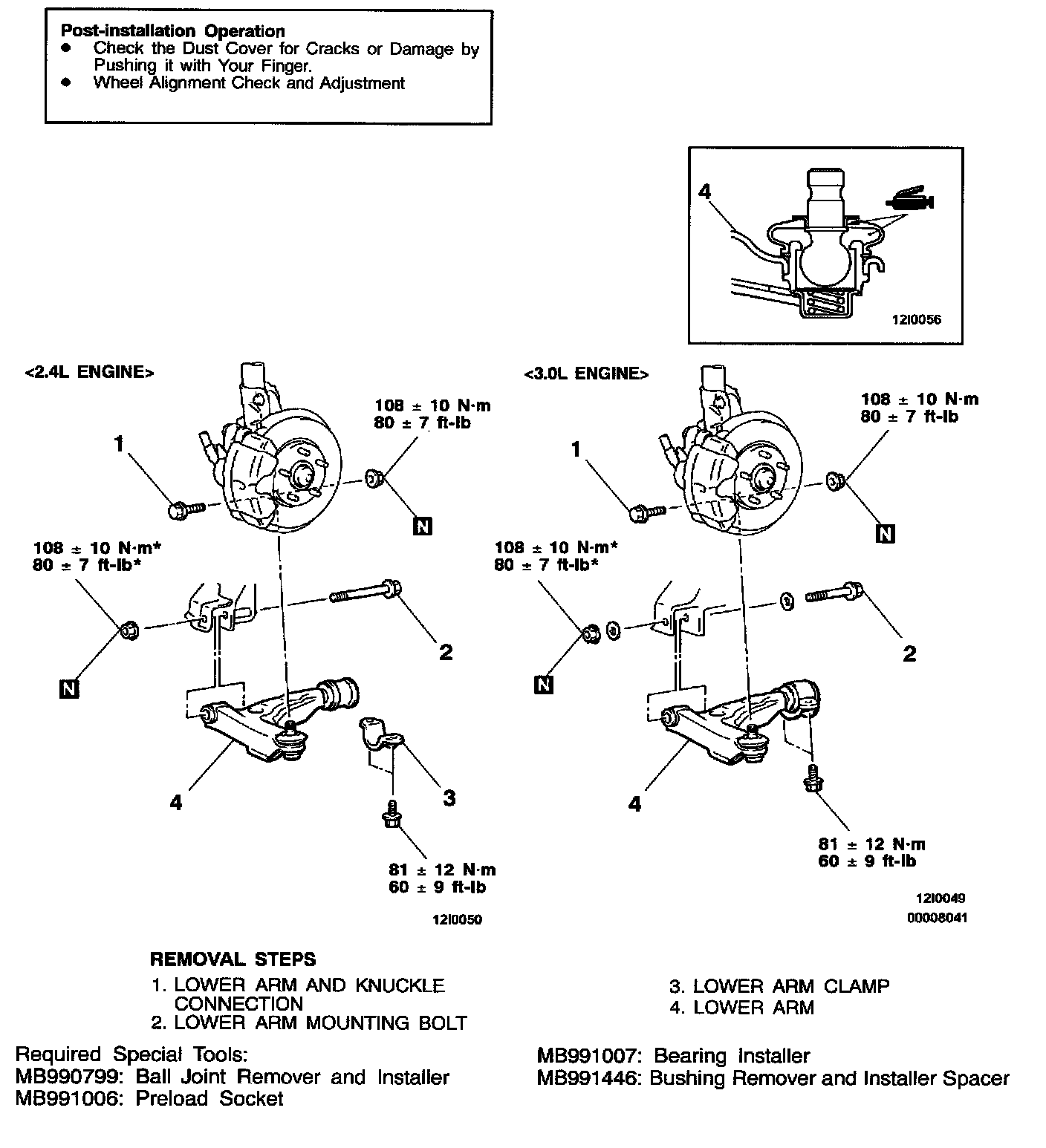

LOWER ARM REPLACEMENT W/ RELATED COMPONENTS





CAUTION: *: Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on the ground in an unladen condition.
