Home >> Mitsubishi >> 2000 >> Eclipse GT V6-3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Radiator

Radiator

Part 1 Of 2:




Part 2 Of 2:

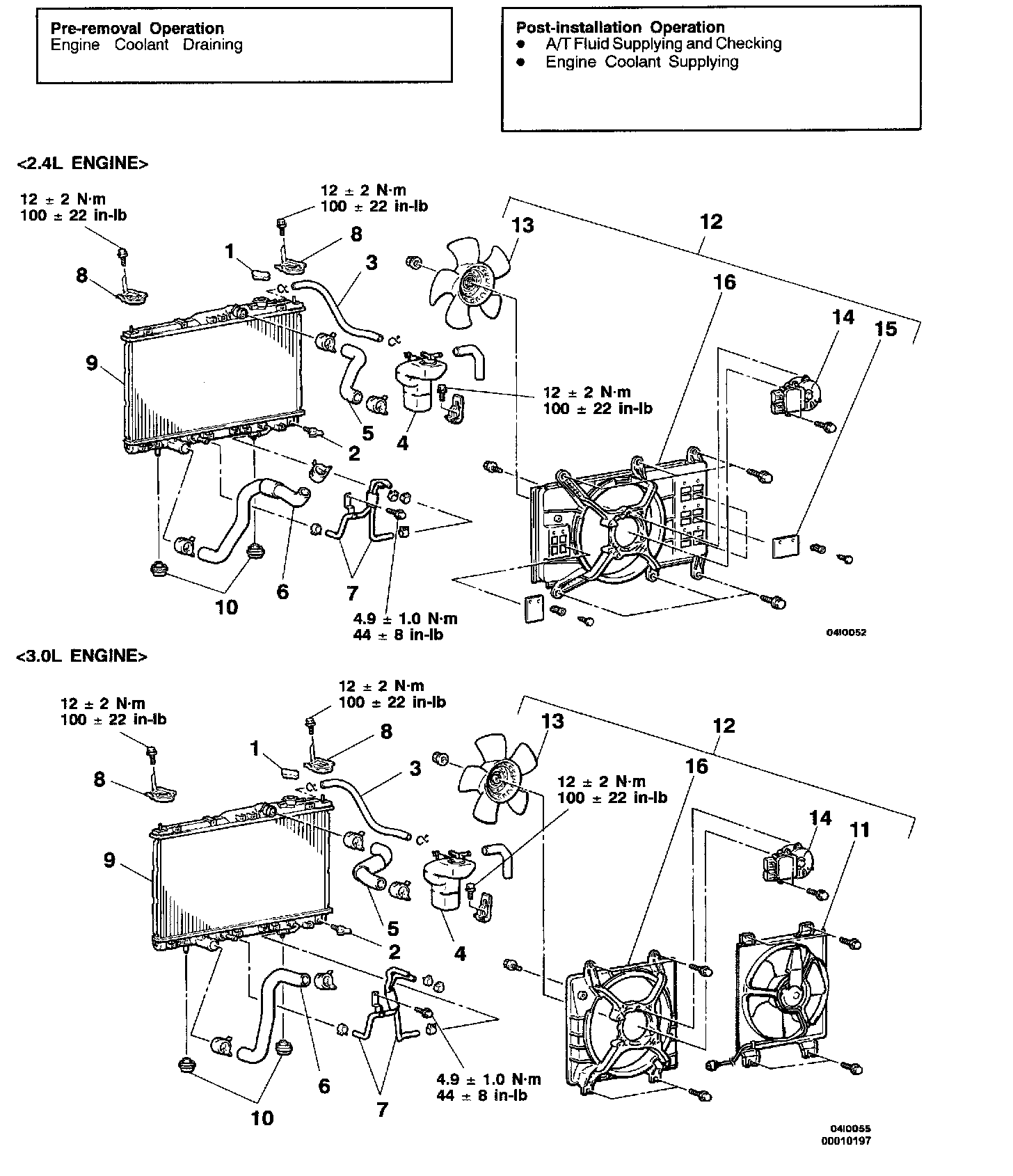

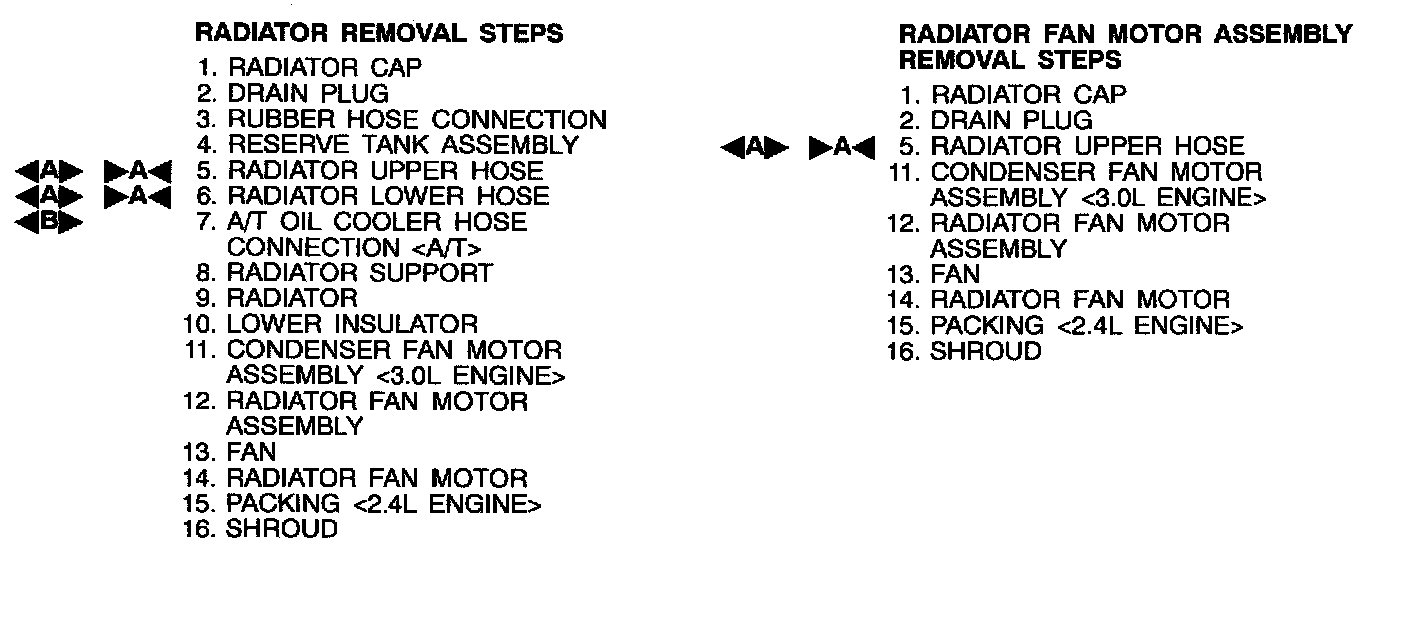

RADIATOR REPLACEMENT W/ RELATED COMPONENTS
