Home >> Mitsubishi >> 2000 >> Eclipse GT V6-3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Intake Manifold

Intake Manifold

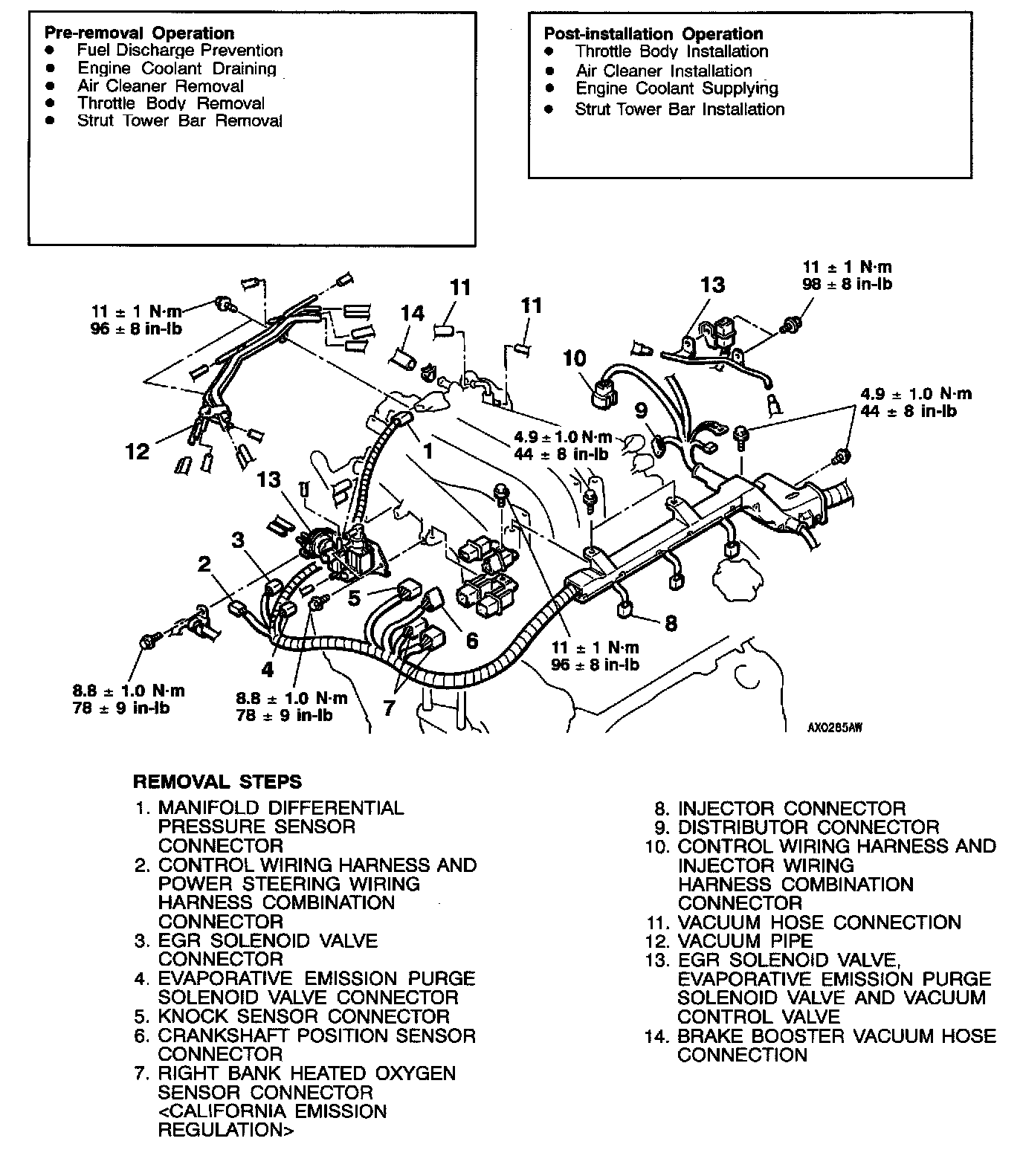

Part 1 Of 2:

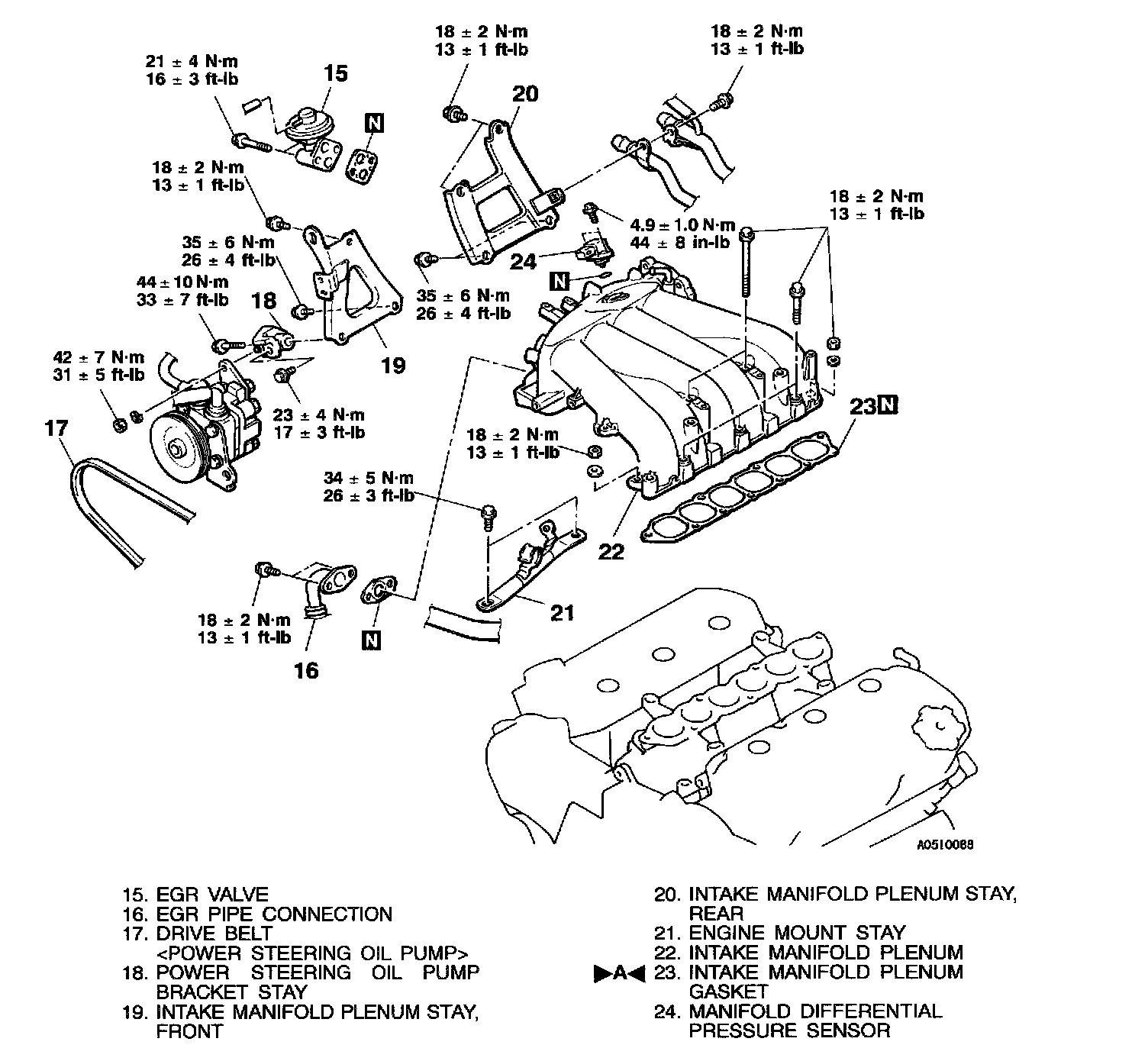

Part 2 Of 2:

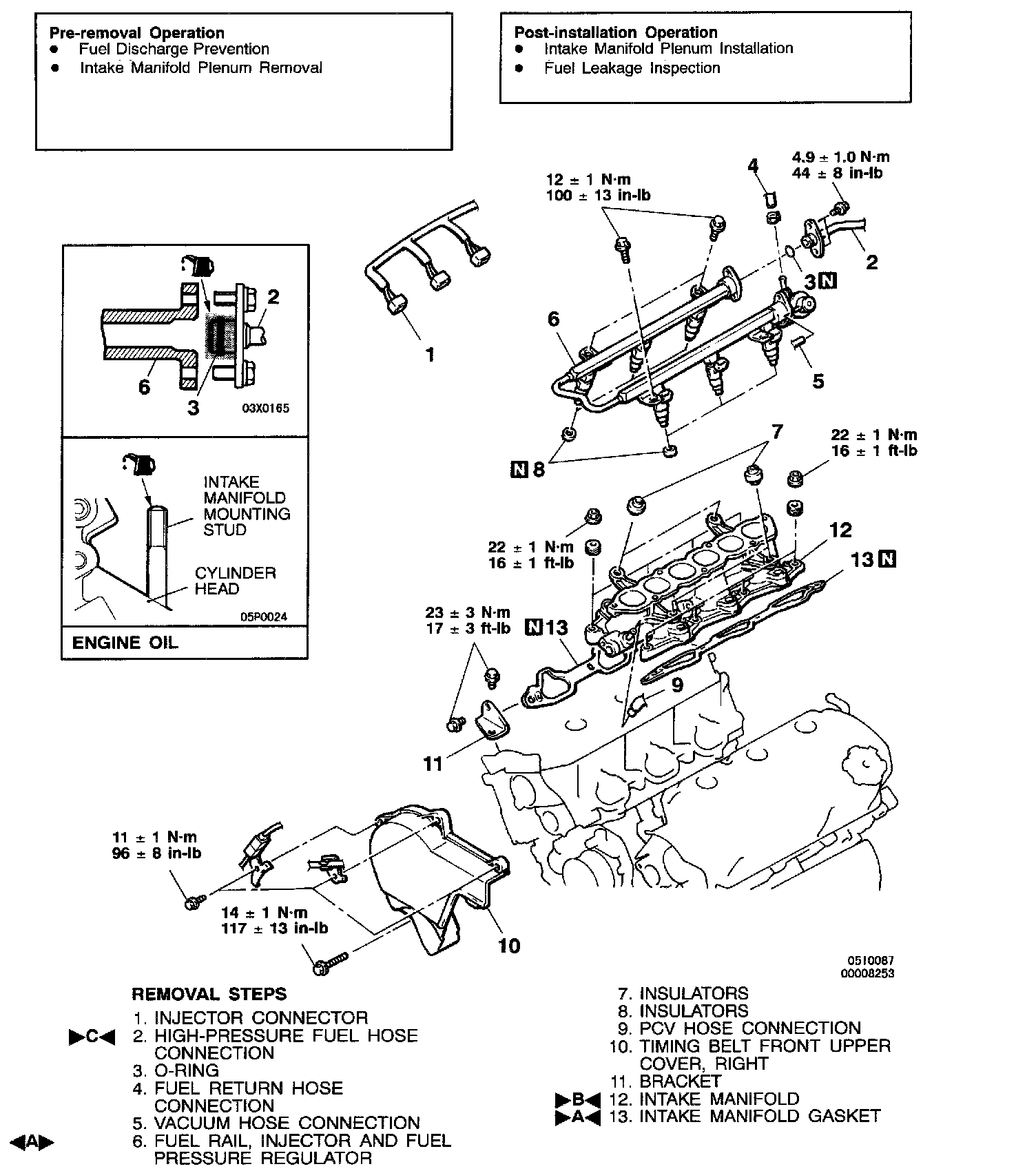

INTAKE MANIFOLD PLENUM REPLACEMENT W/ RELATED COMPONENTS
