Engine Control Module

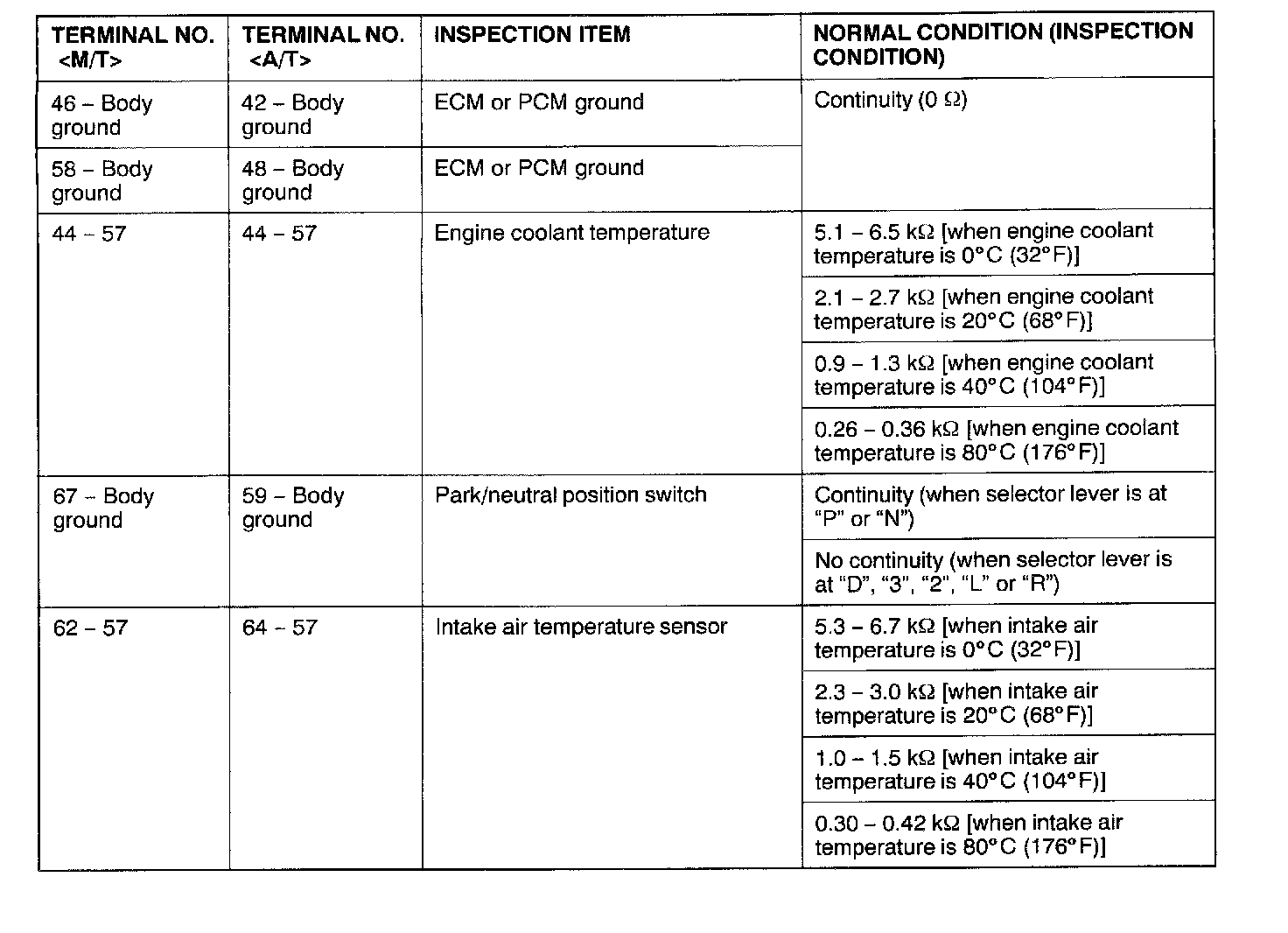

Part 1 Of 2:

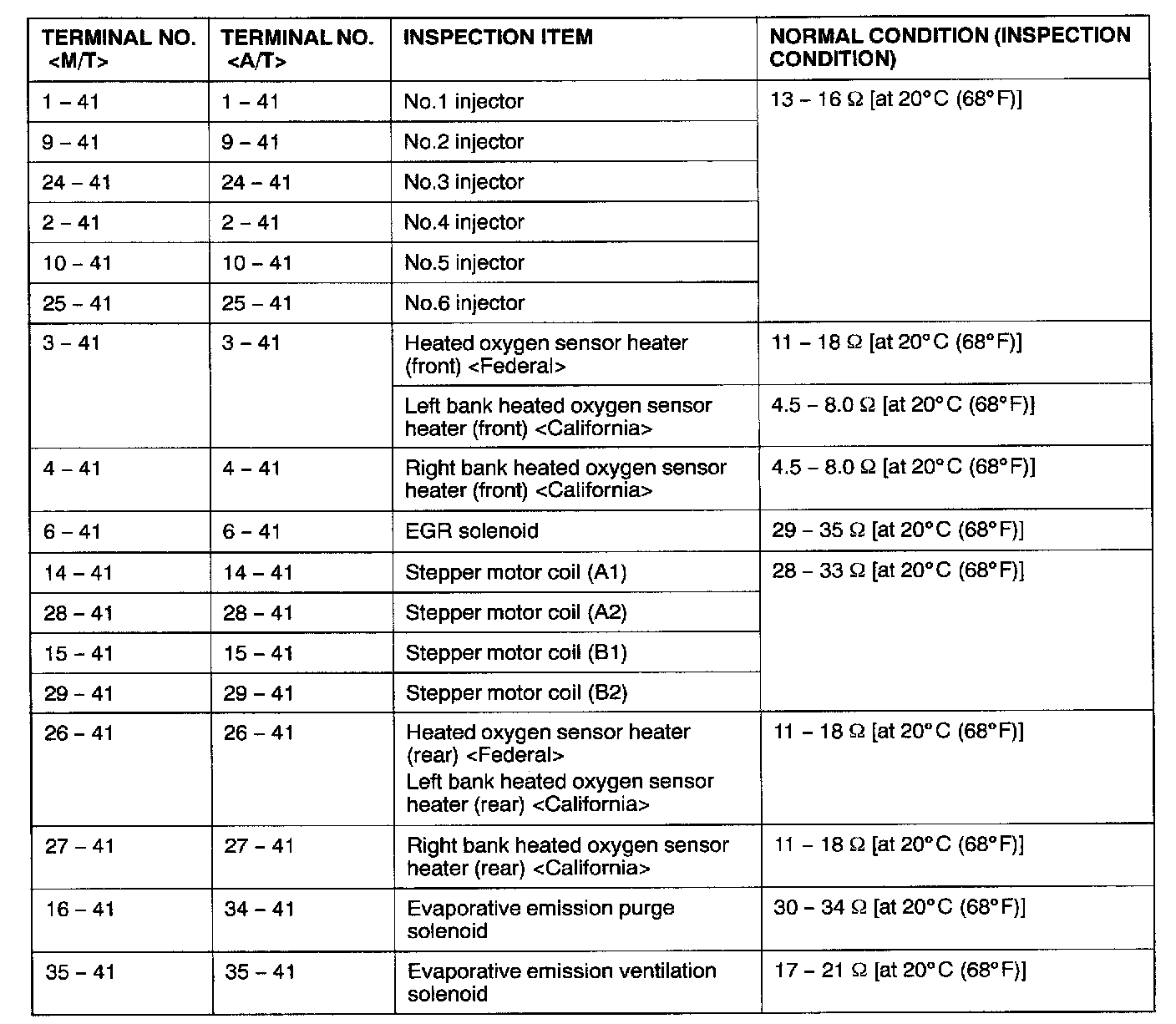

Part 2 Of 2:

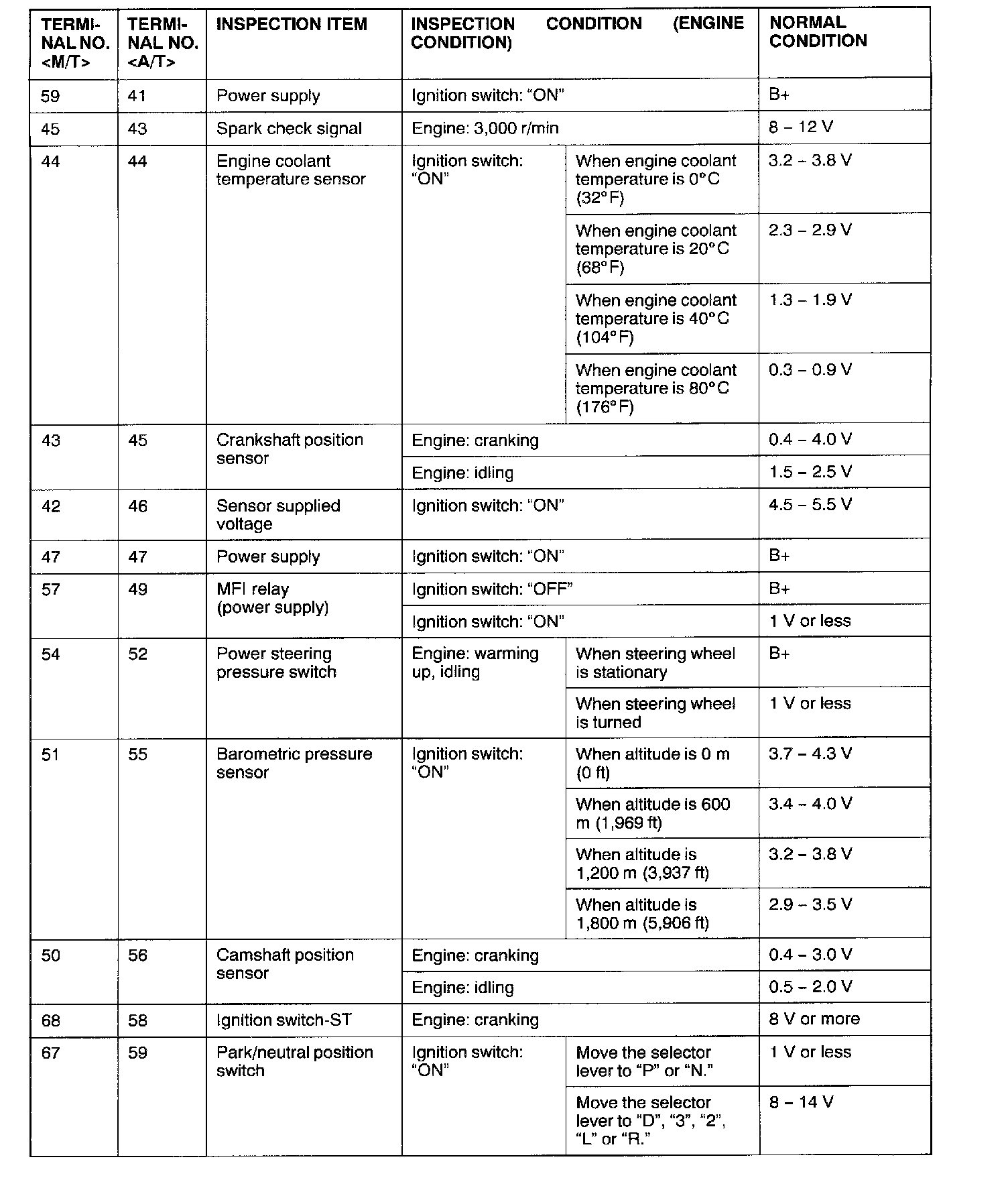

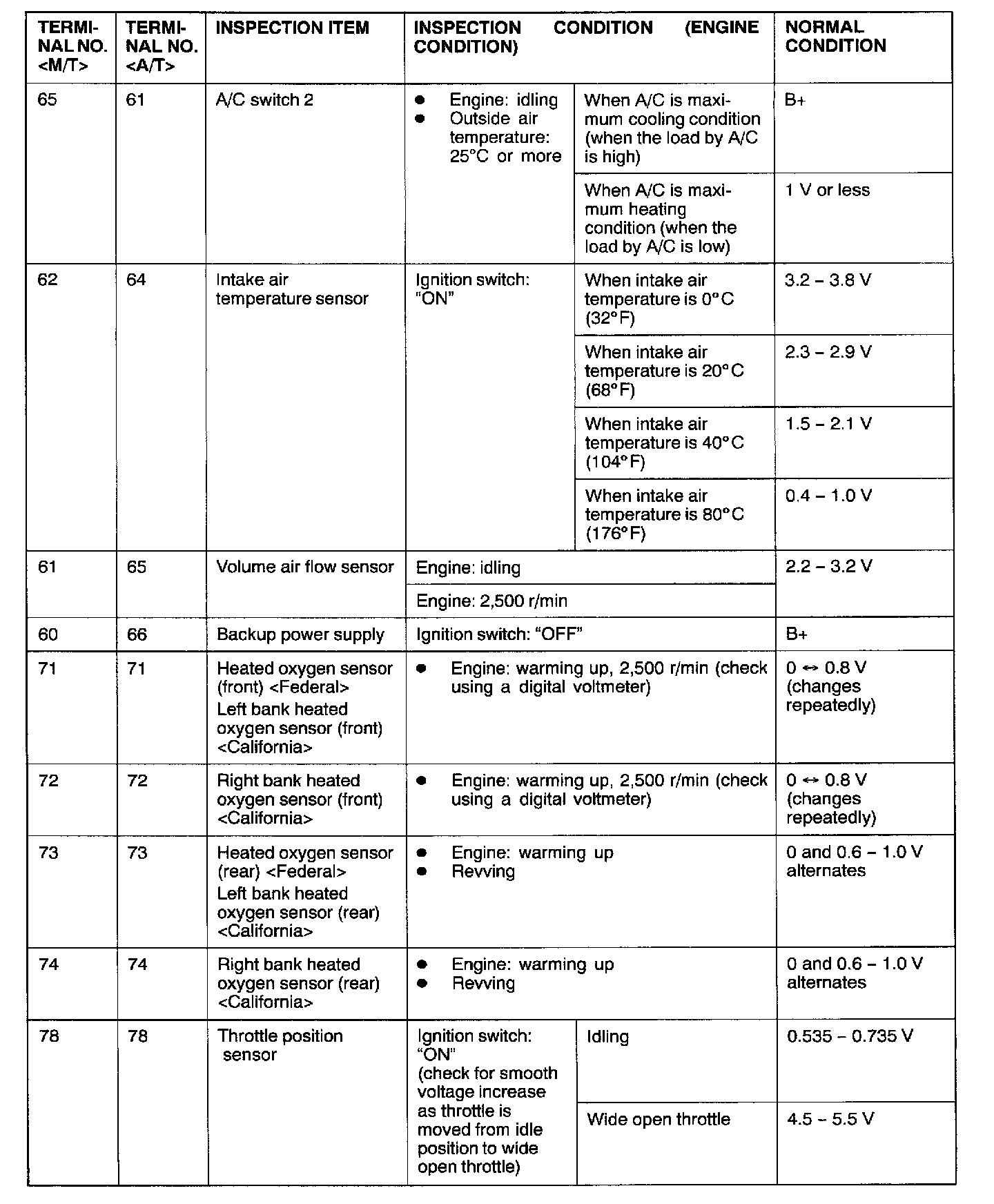

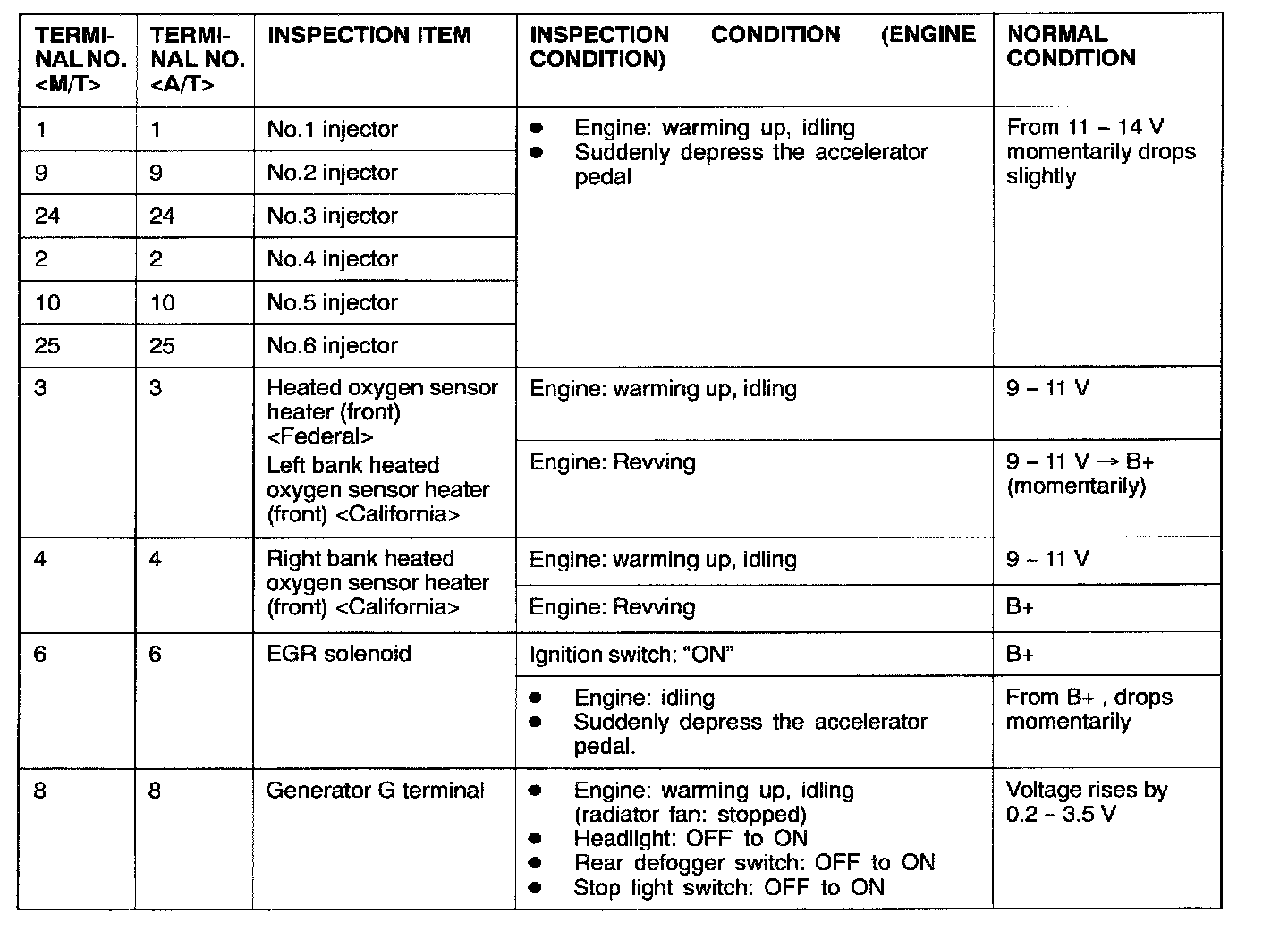

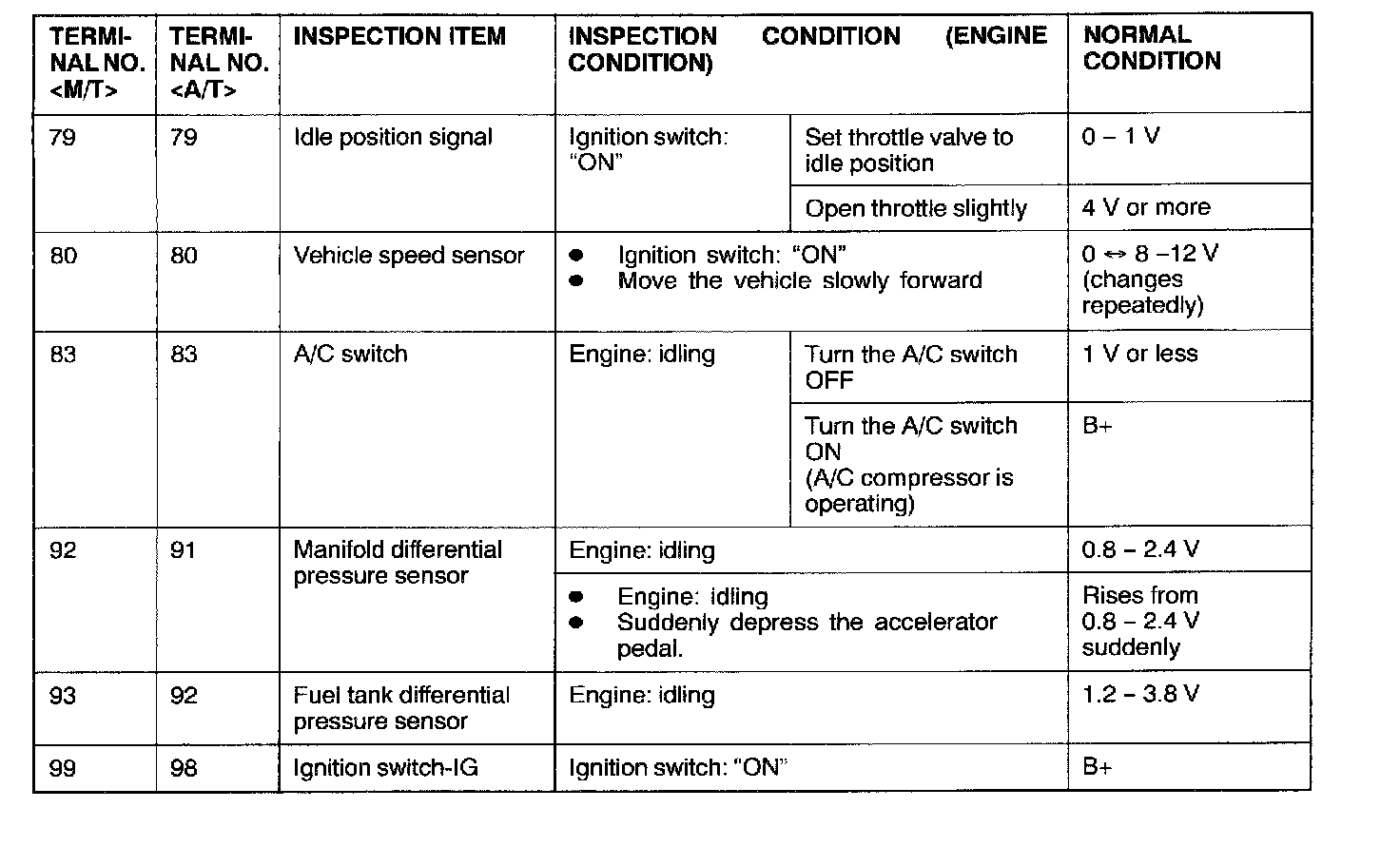

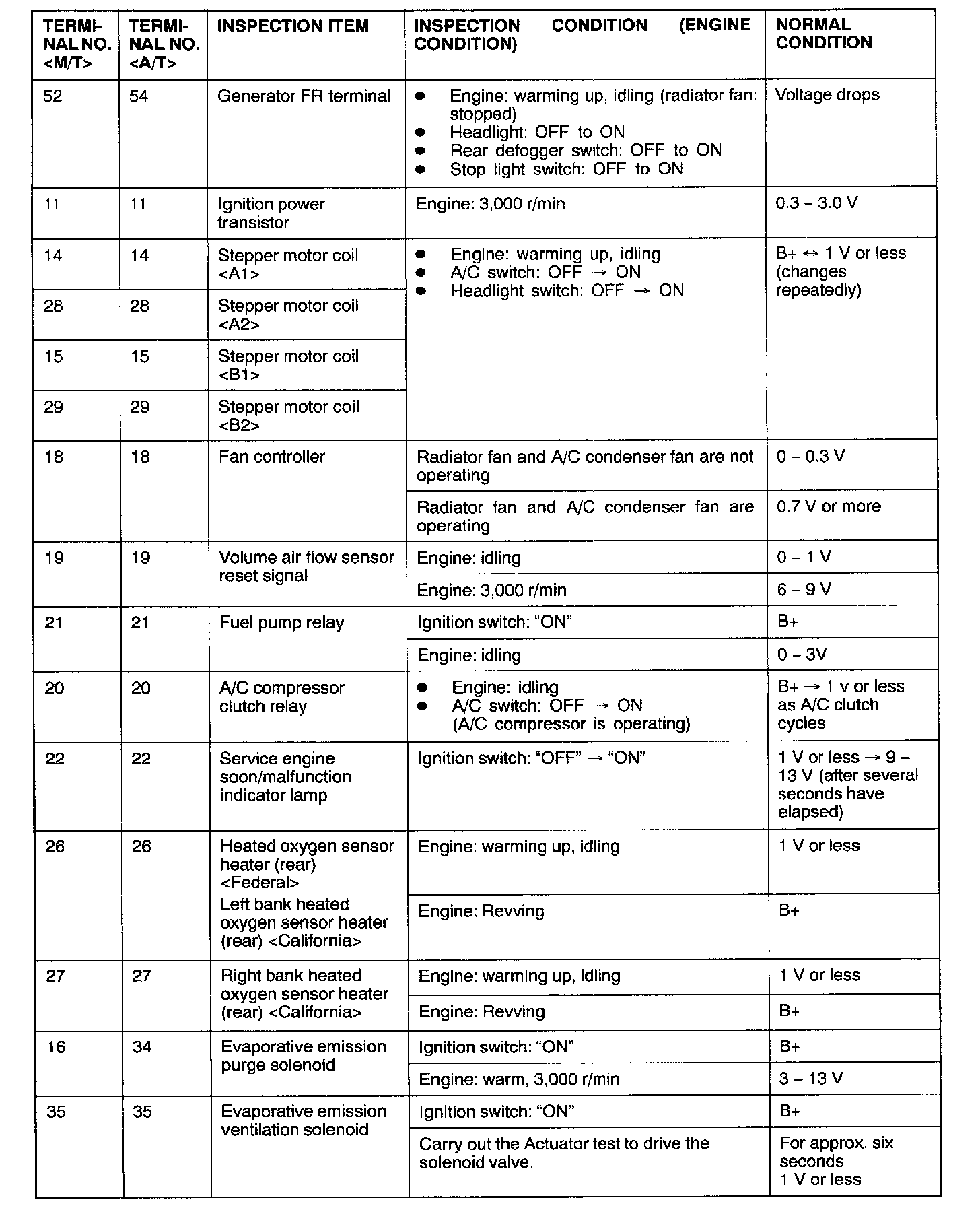

ECM <M/T> Or PCM <A/T> Connector Terminal Arrangement:



Part 1 Of 5:



Part 2 Of 5:



Part 3 Of 5:



Part 4 Of 5:



Part 5 Of 5:
